Class I Or Class II Road Street Light Housing Ultra High Luminous Efficiency

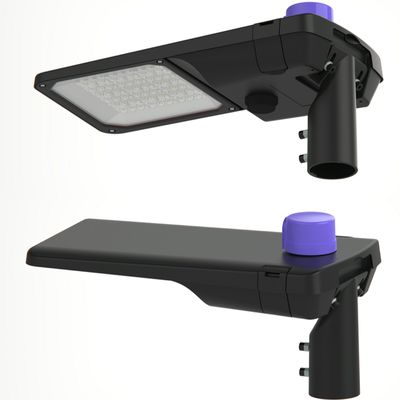

Large Image : Class I Or Class II Road Street Light Housing Ultra High Luminous Efficiency

Product Details:

Place of Origin:	CHINA
Brand Name:	Die-casting Man
Certification:	CE, RoHs, ENEC, CB
Model Number:	YASL-29-160

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	1pc/bag/foam/carton, pallet optional
Delivery Time:	7-10 days based on order QTY
Payment Terms:	T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability:	30000pcs/month

Contact Now

Detailed Product Description

Material:	Die Casting Aluminium	Power:	150-200W
Color Rendering Index:	Ra≥70	Protectin Grade:	IP66
Optical Effect:	130~190 Lm/w(Optional)	Power Factor:	PF≥0.95
Size:	70931589 Mm	Gross Weight:	7.4kgs
Net Weight:	7.9kgs	Protection Level:	IK08/09/10
Highlight:	Class II LED Street Light Housing , Class I LED Street Light Housing , Road Street Light Housing

Product Specification:

SL-29 series LED street lights provide complete lighting solutions for road and street.

Compliance with international standards ENEC, CB, CE, EMC, LM79, Rohs …

Full wattage from 30 to 300W, with ultra-high luminous efficiency and various lighting distribution

Intelligent control system: timing dimming, 0-10v dimming, Dali, Zigbee, NB-Lot, etc

Class I or ClassII both availble.

Model	SL-29-40	SL-29-60	SL-29-100	SL-29-160	SL-29-240
Input Wattage (W)	30/40/50/60	50/60/70/80/90	80/90/100/120/150	150/160/180/200	200/240/260/300
Installation Pipe Diameter	φ45/φ60mm	φ45/φ60mm	φ45/φ60mm	φ45/φ60mm	φ45/φ60mm
Installation Height (m)	3-6	4-8	6-10	8-14	12-14
Input Voltage	90~305Vac
Frequency Range	50/60Hz
Power Factor	≥0.9
Light source	LED
Driver	Inventronics
	Meanwell (optional)
	other brand of driver(upon request)
Luminaire efficacy (lm/W)	130-190
Color Temperature	4000K (3000K/5000K,5700K upon request)
Color rendering index	≥70
Diming	Dali (optional)
	1-10V (optional)
	PWM (optional)
	Smart control management system (upon request)
The environment temperature	-40～45℃
Humidity of Working Condition	20%～90%RH
Protectin Grade	IP66
Protection level	IK08
Standards & Certifications	ENEC(uncertificated)
	CB(uncertificated)
	CE(uncertificated)
	Rohs(uncertificated)
Options	Photocell
	Surge protection
	External cable (length upon request)
	Smart control device
Meterials	Housing: ADC12 die-cast aluminum
	Cover: Toughened Glass
	External Screws: 304 stainless screws
Color	Grey/Black ( other upon request)

Applications:

Introducing Die-casting Man's YASL-29 High Power LED Street Light, the perfect fit for Hot Sale Energy Saving Dali Parking Garage Luminaires. With its 600*300*80mm size, this LED street light is ideal for installation height COB LED Street Light applications. Constructed from durable aluminum alloy, the YASL-29 is built to withstand the test of time and provide long-lasting illumination. With a lifespan of 50,000 hours and a color temperature of 3000-6500K, this LED light is sure to make your Hot Sale Energy Saving Dali Parking Garage Luminaires shine, and with a warranty of 3 years, you can rest assured knowing your investment is well protected. Get your High Power LED Street Light from Die-casting Man today and experience the difference!

Customization:

Customized Service for High Power LED Street Light

Brand Name: Die-casting Man

Model Number: YASL-29

Place of Origin: Ningbo, China

CRI: Ra>80

Beam Angle: 120°

Power: 100W

Material: Aluminum Alloy

Size: 600*300*80mm

Hot Sale Energy Saving Dali Parking Garage Luminaires, Die Casting Man Aluminum Streetlamp, Pole Top Light 30w 40w 60w 90w

Packing and Shipping:

Packaging and Shipping

High Power LED Street Light products are securely packaged in a cardboard box to prevent damage during transport. The box is then sealed with a waterproof tape to protect it from moisture. It also includes an instruction manual for installation. The product is shipped using a reliable courier service and usually takes about 3-5 business days to reach the destination.
