200W Outdoor Aluminum Led Street lighting road light 3030 led or 5050 led

200W Outdoor Aluminum Led Street lighting road light 3030 led or 5050 led
200W Outdoor Aluminum Led Street lighting road light 3030 led or 5050 led

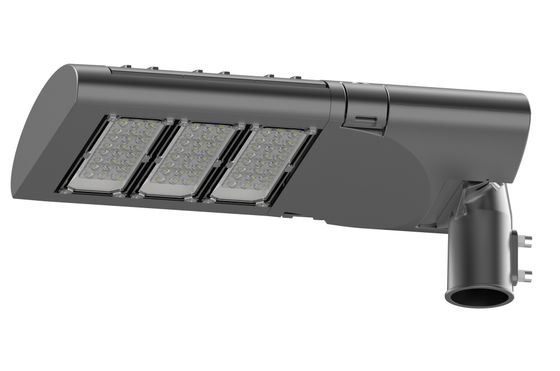

Large Image :  200W Outdoor Aluminum Led Street lighting road light 3030 led or 5050 led

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: SL-26-200
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: styrofoam package and carton box
Delivery Time: 7-30days
Payment Terms: L/C, T/T
Supply Ability: 10000PCS/Month
Detailed Product Description
Power: 200w Installation Pipe Diameter: φ60mm
Product Size: 449*360*152mm LED: Lumileds 3030 Or 5050
Driver: Philips Sosen Color Temperature: 2700K 3000k 400k 5700k
Highlight:

200W aluminum LED street light

,

outdoor LED road light 3030

,

5050 LED street lighting

200W Outdoor Aluminum LED Street Lighting Road Light (3030 LED or 5050 LED)
Product Specifications
Attribute Value
Power 200W
Installation Pipe Diameter φ60mm
Product Size 449*360*152mm
LED Lumileds 3030 or 5050
Driver Philips Sosen
Color Temperature 2700K, 3000K, 4000K, 5700K
Module Street Light SL-26
Model Installation Pipe Diameter Product Size (mm)
YASL-26-50 Φ60 449 × 360 × 152
YASL-26-100 Φ60 529 × 360 × 152
YASL-26-150 Φ60 609 × 360 × 152
YASL-26-200 Φ60 689 × 360 × 152
YASL-26-250 Φ60 769 × 360 × 152
YASL-26-300 Φ60 849 × 360 × 152
Technical Details
Materials Housing: ADC12; Cover: Toughened Glass; Screws: 304 stainless screws
Color Customizable according to international color card
LED Brand LUMILEDS, OSRAM, CREE option
LED Specifications 3030, 5050 option
Optical Effect 130-180 lm/w options
Color Temperature 2700K-6500K options (Reference: Energy Star)
Color Rendering Index Ra≥70; Ra≥80; Ra≥90 option
Optics TYPE I-V options
Driver Brand OSRAM/TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS
Input Voltage AC90-305V
Security Level Class I/II/1/2 option
Frequency Range 43-63Hz
Power Factor PF≥0.95
Working Conditions -30 to 45°C, 20% to 90% RH
Dimming Mode Time control/0-10V/Optical control/DALI option
Lightning Protection 10KV/15KV/20KV option
Warranty 5/8 year option
Protection Overcurrent/Short circuit/Over temperature
Protection Level IP66; IK08/09/10
Certifications ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66
200W Outdoor Aluminum Led Street lighting road light 3030 led or 5050 led 0
Installation & Material

Installing Ways: Both horizontal and vertical available with adjustable angle (-15° to 15°)

Material: Die casting aluminum body

Product Description

This IP66 outdoor LED street light can withstand a range of outdoor environments. Its high-quality aluminum housing and tempered glass lens offer excellent protection. The LED chips can reach up to 130 lm/W, and the street light is equipped with light-control for automatic regulation at dusk and dawn.

This aluminum LED street light is made of die-cast aluminum and is designed for alleys, overpasses, and residential areas. Its high luminous efficacy and low failure rate make it ideal for these locations. Moreover, it is energy-efficient and can cut power consumption by 60%. It includes optional sensor control, making it ideal for lighting security in public places.

The light also includes a built-in photocell that automatically switches the light off at dusk and on at dawn. Its low-energy consumption makes it excellent for parking lots, with potential savings of up to 80% on electricity bills.

Key Features
  • High cost performance; exclusive patented products, all lamps and lenses have patents
  • Reliable performance; high specification aluminum, high pressure cast aluminum one-piece housing; whole lamp IP65
  • Housing material: die-cast aluminum + PC lens 70°×140°; lamp bead arranged in string mode
  • Long life; 50,000 hours life design; high with drive and over 6000V surge protection
  • Product applications: expressway, urban elevated road, urban trunk road, industrial plant, commercial district road, residential road
