Product Details:
Payment & Shipping Terms:
|
Power: | 200w | Installation Pipe Diameter: | φ60mm |
---|---|---|---|
Product Size: | 449*360*152mm | LED: | Lumileds 3030 Or 5050 |
Driver: | Philips Sosen | Color Temperature: | 2700K 3000k 400k 5700k |
Highlight: | 300W outdoor LED street lights,high-performance LED street lights,sustainable outdoor LED lighting |
Attribute | Value |
---|---|
Power | 200W |
Installation Pipe Diameter | φ60mm |
Product Size | 449*360*152mm |
LED | Lumileds 3030 or 5050 |
Driver | Philips Sosen |
Color Temperature | 2700K 3000K 4000K 5700K |
Model Specifications | ||||
Model | Installation Pipe Diameter | Length (mm) | Width (mm) | Height (mm) |
YASL-26-50 | Φ60 | 449 | 360 | 152 |
YASL-26-100 | Φ60 | 529 | 360 | 152 |
YASL-26-150 | Φ60 | 609 | 360 | 152 |
YASL-26-200 | Φ60 | 689 | 360 | 152 |
YASL-26-250 | Φ60 | 769 | 360 | 152 |
YASL-26-300 | Φ60 | 849 | 360 | 152 |
Materials | Housing: ADC12; Cover: Toughened Glass; Screws: 304 stainless screws |
Color | Other colors can be customized according to the international color card |
LED Brand | LUMILEDS, OSRAM, CREE option |
LED Specifications | 3030, 5050 option |
Optical Effect | 130~140 lm/w, 140~150 lm/w, 150~160 lm/w, 160~170 lm/w, 170~180 lm/w option |
Color Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K option (Reference: Energy Star) |
Color Rendering Index | Ra≥70; Ra≥80; Ra≥90 option |
Optics | TYPE I, TYPE II, TYPE III, TYPE V, TYPE IV option |
Driver Brand | OSRAM/TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS |
Input Voltage | AC90~305V |
Security Level | Class I/Class II/Class 1/Class 2 option |
Frequency Range | 43~63Hz |
Power Factor | PF≥0.95 |
Working Conditions Range | -30 to 45℃, 20% to 90% RH |
Dimming Mode | Time control/0-10V/Optical control/DALI option |
Lightning Protection | 10KV/15KV/20KV option |
Warranty | 5/8 year option |
Protection | Overcurrent/Short circuit/Over temperature |
Protection Level | IP66; IK08/09/10 |
Certifications | ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66 |

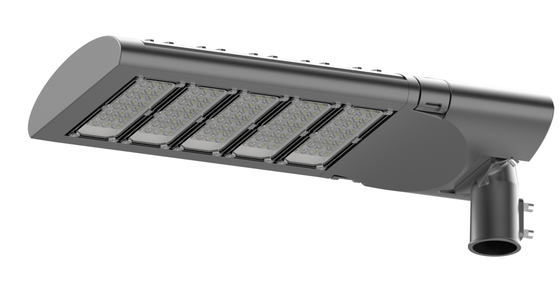

This IP66 outdoor LED street light can withstand a range of outdoor environments. Its high-quality aluminum housing and tempered glass lens offer excellent protection. The LED chips can reach up to 130 lm/W, and the street light is equipped with light-control, which helps regulate light automatically at dusk and dawn.
This aluminum LED street light is made of die-cast aluminum and is designed for alleys, overpasses, and residential areas. Its high luminous efficacy and low failure rate make it ideal for these locations. Moreover, it is energy-efficient and can cut power consumption by 60%. It is equipped with optional sensor control, which makes it an ideal option for lighting security in public places.
The 100W aluminum LED street light includes a built-in photocell, which automatically switches the light off at dusk and turns on at dawn. Its low-energy consumption is also great for parking lots. This LED street light can save up to 80% of electricity bills, making it an ideal solution for parking lot lighting needs.
