Aluminium IP66 40W 60W 80W 100W 120w Pole Lamp For Outdoor LED Light With IK08 Protection And 220-240Vac Input Voltage

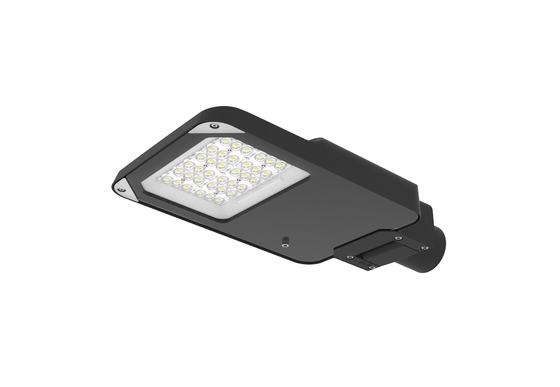

Large Image : Aluminium IP66 40W 60W 80W 100W 120w Pole Lamp For Outdoor LED Light With IK08 Protection And 220-240Vac Input Voltage

Product Details:

Place of Origin:	CHINA
Brand Name:	Die-casting Man
Certification:	CE, RoHs, ENEC, CB
Model Number:	YASL-37-40

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	1pc/bag/foam/carton, pallet optional
Delivery Time:	7-10 days based on order QTY
Payment Terms:	T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability:	30000pcs/month

Contact Now

Detailed Product Description

Material:	Die Casting Aluminium	Power:	40-200W
Input Voltage:	220-240Vac	Optical Effect:	130~150 Lm/w(Optional)
Protectin Grade:	IP66	Protection Level:	IK08
Power Factor:	PF≥0.95	Color Rendering Index:	Ra≥70
Frequency Range:	50/60Hz	Working Conditions Range:	-40～45℃ 20%～90%RH
Size:	445x210x75 Mm
Highlight:	Aluminium LED pole lamp with IK08 protection , Outdoor LED street light 40W-120W , IP66 waterproof LED pole light

Aluminium IP66 40W 60W 80W 100W 120W Pole Lamp For Outdoor LED Light With IK08 Protection And 220-240Vac Input Voltage

Product Specifications

Item No.	YASL-37-40
Power	40W
Lumen Efficiency	130lm/w
Product Size (mm)	445×250×75

Electrical Data

Working Voltage	AC100-265V 丨 50/60Hz
LED	LUMILEDS / OSRAM / CREE
CCT	3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (standard)/ Ra>80
Driver	PHILIPS/OSRAM/TRIDONIC/MEAN WELL/SOSEN/IEVENTRONICS
THD	<15%
Power Factor (PF)	PF>0.9

Construction Details

IP Rating	IP66
IK Rating	IK09
Holder	60mm
Body Material	High pressure die-cast aluminum
Housing Color	Dark Grey/Black/Light Grey (available on request)
Cover Material	UV-resistant Polycarbonate

Performance Characteristics

Working Environment	-20℃ ~ +50℃, 10%~90%RH
Lifespan L70 at 25℃	> 50,000hrs
Mounting Type	Side entry or Vertical pole mounted ±15°
Dimmable	1-10V Dimming / Timer Dimming
Protection Class	Class I (standard) / Class II

Certifications & Options

Standards: CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK09
Available on request: NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, NTC, OLC, DALI Dimming

Reasonable tolerance: Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%

Product Images
