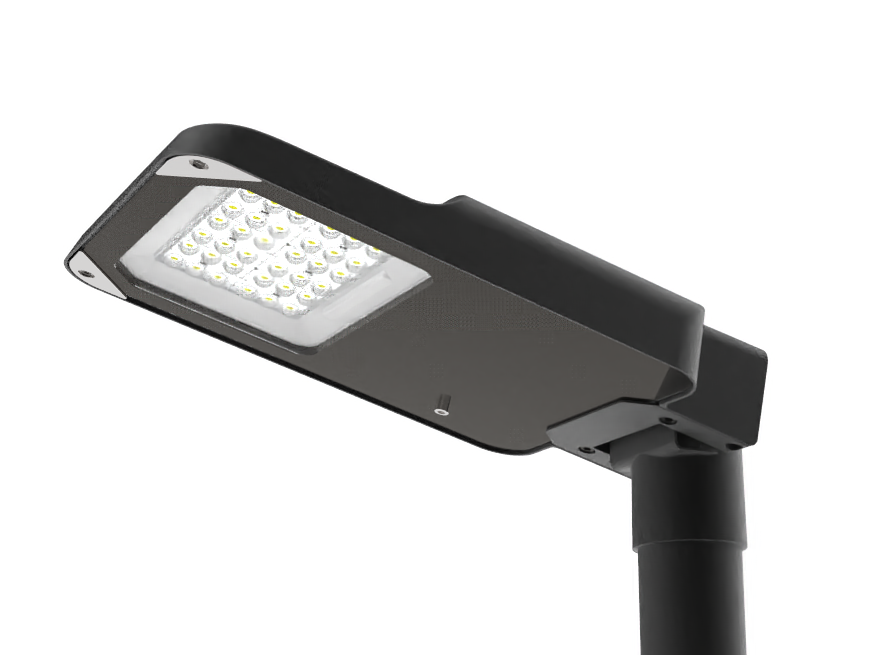

Aluminium Outdoor LED street Lighting IK08 IP66 5years warranty

Aluminium Outdoor LED street Lighting IK08 IP66 5years warranty
Aluminium Outdoor LED street Lighting IK08 IP66 5years warranty
video play

Large Image :  Aluminium Outdoor LED street Lighting IK08 IP66 5years warranty

Product Details:
Place of Origin: CHINA
Brand Name: Die-casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-37-60
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Material: Die Casting Aluminium Power: 40-200W
Input Voltage: 220-240Vac Optical Effect: 130~150 Lm/w(Optional)
Protectin Grade: IP66 Protection Level: IK08
Power Factor: PF≥0.95 Color Rendering Index: Ra≥70
Frequency Range: 50/60Hz Working Conditions Range: -40～45℃ 20%～90%RH
Size: 445x210x75 Mm
Highlight:

Aluminium outdoor LED street light

,

IK08 IP66 LED street lighting

,

LED street light with 5-year warranty

Aluminium Outdoor LED Street Lighting IK08 IP66 5 Years Warranty
Product Specifications
Item No. YASL-37-40
Power 60W
Lumen Efficiency 130lm/w
Product Size (mm) 483×242×75
Electrical Data
Working Voltage AC100-265V 丨 50/60Hz
LED LUMILEDS / OSRAM / CREE
CCT 3000K, 4000K, 5000K, 5700K, 6500K
CRI Ra>70 (standard)/ Ra>80
Driver PHILIPS/OSRAM/TRIDONIC/MEAN WELL/SOSEN/IEVENTRONICS
THD <15%
Power Factor (PF) PF>0.9
Physical Specifications
IP Rating IP66
IK Rating 1K09
Holder 60mm
Body Material High pressure die-cast aluminum
Housing Color Dark Grey/Black/Light Grey (available on request)
Cover Material UV-resistant Polycarbonate
Environmental Specifications
Working Environment -20℃ ~ +50℃, 10%~90%RH
Lifespan L70 at 25℃ > 50,000hrs
Mounting & Features
Mounting Type Side entry or Vertical pole mounted ±15°
Dimmable 1-10V Dimming / Timer Dimming
Protection Class Class I (standard) / Class Ⅱ
Standards & Certifications
  • CE, RoHS, ENEC, CB
  • LM79, LM80, TM-21
  • IP66, IK09
Available Options
  • NEMA socket (3/5/7 pins)
  • ZHAGA socket
  • Short cap
  • Photocell
  • Motion sensor
  • NTC, OLC
  • DALI Dimming
Note: Reasonable tolerance - Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%
