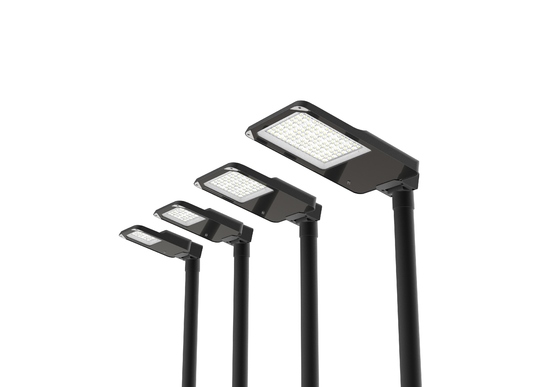

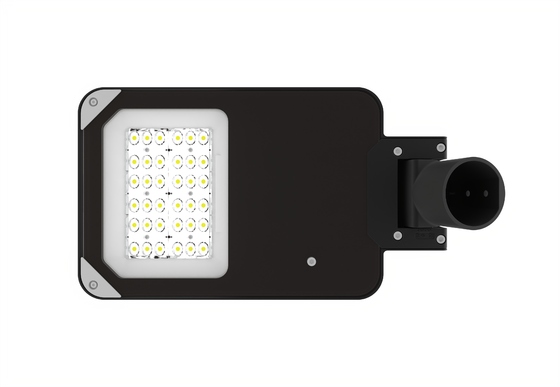

Aluminium IP66 40W 60W 80W 100W 120w Pole Lamp For Outdoor LED Light With IK08 Protection And 220-240Vac Input Voltage

Aluminium IP66 40W 60W 80W 100W 120w Pole Lamp For Outdoor LED Light With IK08 Protection And 220-240Vac Input Voltage
Aluminium IP66 40W 60W 80W 100W 120w Pole Lamp For Outdoor LED Light With IK08 Protection And 220-240Vac Input Voltage
video play

Large Image :  Aluminium IP66 40W 60W 80W 100W 120w Pole Lamp For Outdoor LED Light With IK08 Protection And 220-240Vac Input Voltage

Product Details:
Place of Origin: CHINA
Brand Name: Die-casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-37-200
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Material: Die Casting Aluminium Power: 160-240W
Input Voltage: 220-240Vac Optical Effect: 130~150 Lm/w(Optional)
Protectin Grade: IP66 Protection Level: IK08
Power Factor: PF≥0.95 Color Rendering Index: Ra≥70
Frequency Range: 50/60Hz Working Conditions Range: -40～45℃ 20%～90%RH
Size: 650x320x75 Mm
Highlight:

Aluminium IP66 LED pole lamp

,

Outdoor LED light with IK08 protection

,

220-240Vac LED street light housing

Aluminium IP66 40W 60W 80W 100W 120W Pole Lamp For Outdoor LED Light With IK08 Protection And 220-240Vac Input Voltage
Product Specifications
Item No. YASL-37-40
Power 240W
Lumen Efficiency 130lm/w-150lm/w
Product Size (mm) 650×320×75
Electrical Data
Working Voltage AC100-265V | 50/60Hz
LED LUMILEDS / OSRAM / CREE
CCT 3000K, 4000K, 5000K, 5700K, 6500K
CRI Ra>70 (standard)/ Ra>80
Driver PHILIPS/OSRAM/TRIDONIC/MEAN WELL/SOSEN/IEVENTRONICS
THD <15%
Power Factor (PF) PF>0.9
Physical Specifications
IP Rating IP66
IK Rating IK09
Holder 60mm
Body Material High pressure die-cast aluminum
Housing Color Dark Grey/Black/Light Grey (available on request)
Cover Material UV-resistant Polycarbonate
Environmental Specifications
Working Environment -20℃ ~+50℃, 10%~90%RH
Lifespan L70 at 25℃ > 50,000hrs
Additional Features
  • Mounting Type: Side entry or Vertical pole mounted ±15°
  • Dimmable: 1-10V Dimming /Timer Dimming
  • Protection Class: Class I (standard) / Class II
  • Standards: CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK09
Available Options (On Request)
  • NEMA socket (3/5/7pins)
  • ZHAGA socket
  • Short cap
  • Photocell
  • Motion sensor
  • NTC
  • OLC
  • DALI Dimming
Note: Reasonable tolerance - Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%
Aluminium IP66 40W 60W 80W 100W 120w Pole Lamp For Outdoor LED Light With IK08 Protection And 220-240Vac Input Voltage 0
