Aluminum LED Street Light Housing 2700K 3000K 3500K 4000K 4500K 6500K 5 years warranty

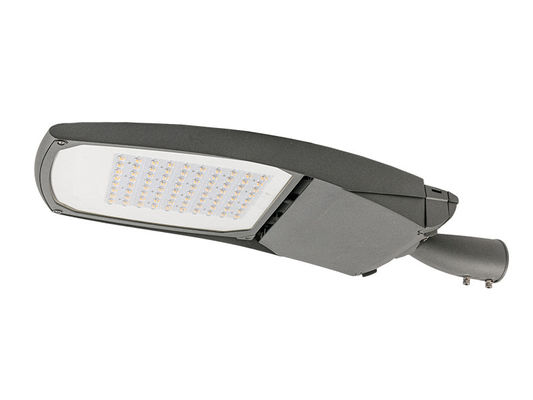

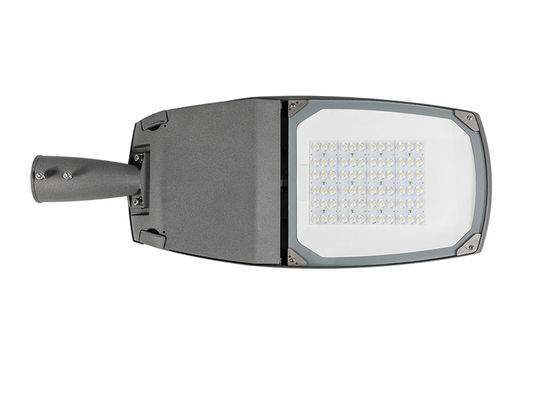

Large Image : Aluminum LED Street Light Housing 2700K 3000K 3500K 4000K 4500K 6500K 5 years warranty

Product Details:

Place of Origin:	China
Brand Name:	Die casting man
Certification:	CE, RoHs, ENEC, CB
Model Number:	YASL-25-80

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiable
Packaging Details:	foam filing/pc
Delivery Time:	35days after deposit
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000PCS/Month.

Contact Now

Detailed Product Description

Input Wattage:	80 /90 / 100W	High Efficiency:	>150lm/w
Voltage:	220V	Package:	1pcs/carton
Packing Details:	With Strofoam Package	Body Color:	Customized
Highlight:	Aluminum LED street light housing with warranty , LED street light housing 2700K-6500K , Durable aluminum LED street light housing

Aluminum LED Street Light Housing

Available in 2700K, 3000K, 3500K, 4000K, 4500K, 6500K color temperatures with 5-year warranty

Smart Street Light Control

This high-performance LED street light is available in multiple power configurations: 40W, 100W, 150W, and 200W. The luminaire is manufactured from high-quality pressure die-casting aluminum with LED efficiency up to 130 lm/w, capable of producing up to 26,000 luminaire lumens at 4000K. Standard finishes include Grey or Black with 5-year warranty.

Technical Specifications

Item No.	YASL-25-80	YASL-25-80	YASL-25-80	YASL-25-80
Power	70W	80W	90W	100W
Lumen Efficiency	140lm/w	140lm/w	140lm/w	140lm/w
Lumen	9800lm	11200lm	12600lm	1400lm
Product Size (mm)	645x257x147	645x257x147	645x257x147	645x257x147

Electrical Data

Working Voltage: AC100-265V 丨 50/60Hz
LED: Lumileds / Epistar / SANAN
CCT: 3000K, 4000K, 5000K, 6000K
CRI: Ra>70 (standard)/ Ra>80
Driver: local
THD: <15%
Power Factor: PF>0.9
IP Rating: IP66
IK Rating: IK09
Holder: 50mm/B60mm (standard)
Body Material: High pressure die-cast aluminum
Housing Color: Dark Grey/Black/Light Grey (available on request)
Cover Material: UV-resistant Polycarbonate
Working Environment: -20℃ ~+50℃, 10%~90%RH
Lifespan L70 at 25℃: > 50,000hrs
Mounting Type: Side entry or Vertical pole mounted ±15°
Dimmable: 1-10V Dimming / Timer Dimming
Protection Class: Class I (standard) / Class Ⅱ
Standards: CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK09
Available on request: NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, NTC, OLC, DALI Dimming
Reasonable tolerance: Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%

Installation Options

Both horizontal and vertical installation available with adjustable angle from -15° to +15°

90 Degree Installation

Front View

Back View

Side View

Product Models & Specifications

Product Code	YASL-25-40M	YASL-25-100M	YASL-25-150M	YASL-25-240M
Input Wattage	30W, 40W, 50W, 60W	100W, 120W	150W, 200W	300W
Installation Pipe Diameter	φ45/60mm	φ45/60mm	φ45/60mm	φ45/60/76mm
Luminous Flux	3900-4500lm	5200-6000lm	6500-7500lm	7800-9000lm
Color Temperature	2700-6500K
Input Voltage	AC90-305V
Frequency Range	50/60Hz
Power Factor	PF≥0.95
Color Rendering Index	Ra≥70
Working Temperature	-40℃ to 50℃
Working Humidity	20% to 90%RH
LED Lifetime	50,000 hours
Protection Grade	IP66
Protection Level	IK08/09/10
Installation Height	3-6m	4-8m	8-12m	10-14m
Net Weight	2.9kg	3.8kg	5.7kg	7.2kg
Gross Weight	3.4kg	4.0kg	6.0kg	7.5kg
Packing Size (mm)	555×210×143	680×270×160	820×320×160	920×370×180
