IP66 Smart LED Street Lamp Die Casting Housing 3030 5050 led 5 years warranty road lighting outsdoor light SKD

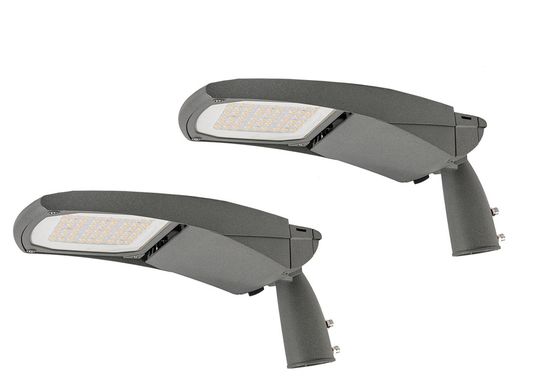

Large Image : IP66 Smart LED Street Lamp Die Casting Housing 3030 5050 led 5 years warranty road lighting outsdoor light SKD

Product Details:

Place of Origin:	Ningbo China
Brand Name:	Die Casting Man
Certification:	CE, RoHs, ENEC, CB
Model Number:	SL-25-100M

Payment & Shipping Terms:

Minimum Order Quantity:	5PC
Price:	Negotiation
Packaging Details:	Carton box with styrofoam package
Delivery Time:	7-30 days base on order quantity
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Model:	SL-25-100M	Wattage:	100W
Light Source:	LED	IK Grade:	IK08
IP Grade:	IP66	Warranty:	5 Years
Highlight:	IP66 LED street lamp housing , die casting LED road light , 3030 5050 LED outdoor lighting

IP66 Smart LED Street Lamp Die Casting Housing 3030 5050 LED with 5-Year Warranty

LED Street Light YASL-25M

Available in both horizontal and vertical installation with adjustable angle range of -15° to +15°

90 Degree Installation

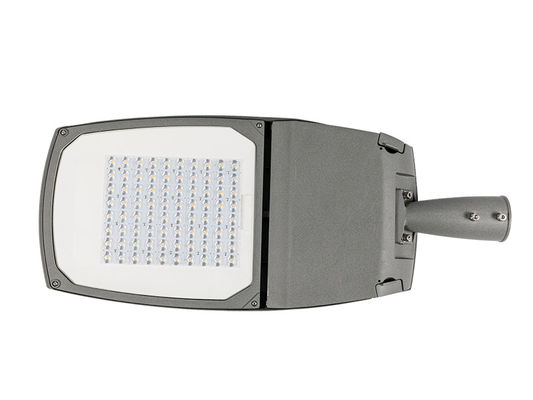

Front View

Back View

Side View

Die Casting Housing Specifications

Product Code	YASL-25-100M	YASL-25-100M	YASL-25-150M	YASL-25-150M	YASL-25-240M	YASL-25-240M
Input Wattage	50W 60W	100W	120W	150W	200W	240W
Installation Pipe Diameter	φ45/60mm			φ45/60/76mm
Luminous Flux	7800-9000lm	13000-15000lm	15600-18000lm	19500-22500lm	26000-30000lm	31200-36000lm
Color Temperature	2700K 3000K 4000K 5000K 5700K 6500K
Input Voltage	AC90～305V
Frequency Range	50/60Hz
Power Factor	PF≥0.95
Color Rendering Index	Ra≥70
Temperature of Working Condition	-40～50℃
Humidity of Working Condition	20%～90%RH
LED Lifetime	50000h
Protection Grade	IP66
Protection Level	IK08 IK09 IK10
Installation Height	4-8m	6-10m	8-12m	8-12m	10-14m	10-14m
Net Weight	3.8kgs	3.8kgs	5.7kgs	5.7kgs	7.2kgs	7.2kgs
Gross Weight	4.0kgs	4.0kgs	6.0kgs	6.0kgs	7.5kgs	7.5kgs
Packing Size (mm)	680×270×160	680×270×160	820×320×160	820×320×160	920×370×180	920×370×180

Product Overview

This high-performance street lighting series is available in three sizes and manufactured from high-pressure die-casting aluminum. The luminaire delivers exceptional LED efficiency up to 130 lm/w, capable of producing up to 26000 luminaire lumens at 4000K. Available in grey or black as standard finish.
