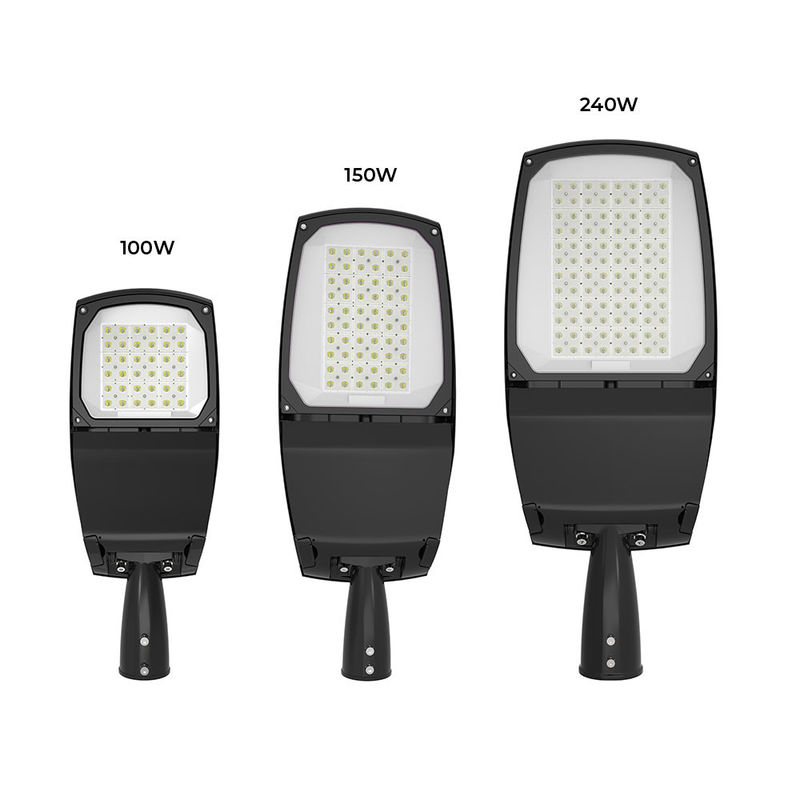

Die Cast Aluminum High Power Led Street Light Ultra High Luminous 100W 150W

Large Image : Die Cast Aluminum High Power Led Street Light Ultra High Luminous 100W 150W

Product Details:

Place of Origin:	Ningbo China
Brand Name:	Die Casting Man
Certification:	CE, RoHs, ENEC, CB
Model Number:	SL-25-240M

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiation
Packaging Details:	Carton box with styrofoam package
Delivery Time:	7-40 days base on order quantity
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Model:	SL-25-240M	Power:	240W 300W
Installation Pipe Diameter:	φ45/60mm	Input Voltage:	90~305Vac
Led Chip:	3030 Or 5050	Driver:	Inventronics, MOSO, SOSEN
Highlight:	die cast aluminum LED street light , high power outdoor LED light , ultra luminous 100W street light

Die Cast Aluminum High Power LED Street Light Ultra High Luminous 100W 150W

Product Specifications

Model	SL-25-40M	SL-25-100M	SL-25-150M	SL-25-240M
Input Wattage (W)	30/40/50/60	80/100/120	150/180/200	240/300
Installation Pipe Diameter	φ45/60mm	φ45/60mm	φ45/60mm	φ60/70mm
Installation Height (m)	3-8	6-10	8-12	10-14

Input Voltage: 90~305Vac
Frequency Range: 50/60Hz
Power Factor: ≥0.9
Light Source: LED
Driver: Inventronics, Meanwell (optional), other brand of driver (upon request)
Luminaire Efficacy: 130-170 lm/W
Color Temperature: 4000K
Color Rendering Index: ≥70
Dimming Options: Dali (optional), 1-10V (optional), PWM (optional), Smart control management system (upon request)
Environment Temperature: -40～45℃
Humidity of Working Condition: 20%～90%RH
Protection Grade: IP66
Protection Level: IK08
Standards & Certifications: ENEC, CB, CE, Rohs
Options: Photocell, Surge protection, External cable (length upon request), Smart control device
Materials: Housing: ADC12 die-cast aluminum, Cover: Toughened Glass, External Screws: 304 stainless screws
Color: Grey/Black (other upon request)

Dimensions & Weights

Model	Product Size (mm)	Packing Size (mm)	G.W (kgs)	N.W (kgs)
	L \| W \| H	L \| W \| H
YSSL-25-40 YSSL-25-40M	555 \| 210 \| 143	600 \| 260 \| 165	2.9	3.4
YSSL-25-100 YSSL-25-100M	645 \| 257 \| 147	680 \| 270 \| 160	3.8	4
YSSL-25-150 YSSL-25-150M	790 \| 305 \| 147	820 \| 320 \| 160	5.7	6
YSSL-25-200 YSSL-25-200M	890 \| 361 \| 163	970 \| 370 \| 180	7.2	7.5

Product Images
