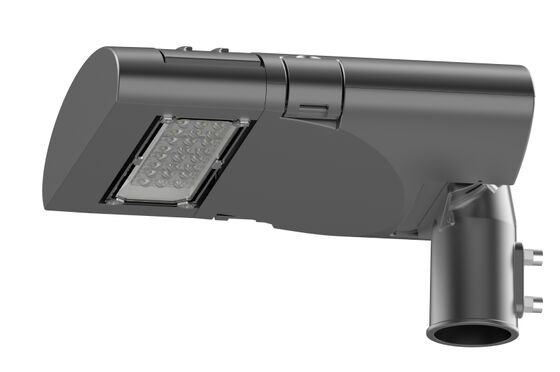

led street lighting 150Lm/W High Luminous Module Cut Off Electric Street Lamp Post Exterior Lighting

led street lighting 150Lm/W High Luminous Module Cut Off Electric Street Lamp Post Exterior Lighting

Large Image :  led street lighting 150Lm/W High Luminous Module Cut Off Electric Street Lamp Post Exterior Lighting

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-26-100
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: styrofoam package and carton box
Delivery Time: 7-30days
Payment Terms: L/C, T/T
Supply Ability: 10000PCS/Month
Detailed Product Description
Model: YASL-26-100 Installation Pipe Diameter: φ60mm
Product Size: 529*360*152mm LED: Lumileds 3030 Or 5050
Driver: Inventronics Color Temperature: 2700K 3000k 400k 5700k
IP: 66 IK: 08
Highlight:

high luminous LED street light

,

cut off electric street lamp

,

LED street light housing

LED Street Lighting 150Lm/W High Luminous Module Cut Off Electric Street Lamp Post Exterior Lighting
led street lighting 150Lm/W High Luminous Module Cut Off Electric Street Lamp Post Exterior Lighting 0
Product Specifications
Model Installation Pipe Diameter Product Size (mm) L W H
YSSL-26-50 Φ60 449 360 152
YSSL-26-100 Φ60 529 360 152
YSSL-26-150 Φ60 609 360 152
YSSL-26-200 Φ60 689 360 152
YSSL-26-250 Φ60 769 360 152
YSSL-26-300 Φ60 849 360 152
Materials: Housing: ADC12; Cover: Toughened Glass; Screws: 304 stainless screws
Color: Other colors can be customized according to the international color card
LED Brand: LUMILEDS, OSRAM, CREE option
LED Specifications: 3030, 5050 option
Optical Effect: 130-140 lm/w, 140-150 lm/w, 150-160 lm/w, 160-170 lm/w, 170-180 lm/w option
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K option (Reference: Energy Star)
Color Rendering Index: Ra≥70; Ra≥80; Ra≥90 option
Optics: TYPE I, TYPE II, TYPE III, TYPE V, TYPE IV option
Driver Brand: OSRAM, TRIDONIC, MEAN WELL, SOSEN, INVENTRONICS
Input Voltage: AC 90-305V
Security Level: Class I/Class II/Class 1/Class 2 option
Frequency Range: 43-63Hz
Power Factor: PF≥0.95
Working Conditions: -30 to 45°C, 20% to 90% RH
Dimming Mode: Time control, 0-10V, Optical control, DALI option
Lightning Protection: 10KV, 15KV, 20KV option
Warranty: 5, 8 year option
Protection: Overcurrent, Short circuit, Over temperature
Protection Level: IP66; IK08/09/10
Certifications: ENEC, CE, CB, IEC, RoHs, TUV, Lightning protection, LM-79, LM-80, IP66
led street lighting 150Lm/W High Luminous Module Cut Off Electric Street Lamp Post Exterior Lighting 1
