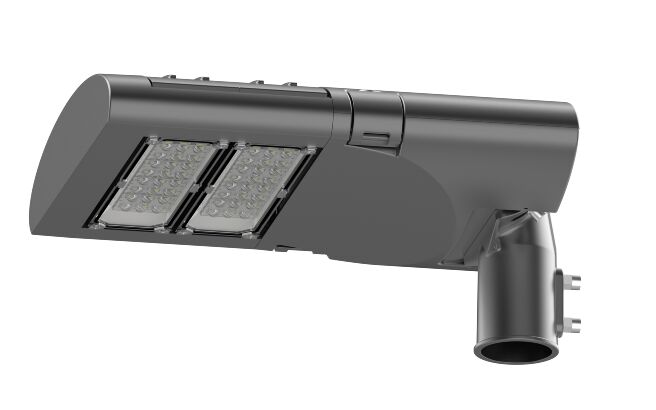

led street lighting housing 150Lm/W High Luminous Module

led street lighting housing 150Lm/W High Luminous Module
led street lighting housing 150Lm/W High Luminous Module
video play

Large Image :  led street lighting housing 150Lm/W High Luminous Module

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-26-100
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: styrofoam package and carton box
Delivery Time: 7-30days
Payment Terms: L/C, T/T
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Model: YASL-26-100 Installation Pipe Diameter: φ60mm
Product Size: 529*360*152mm LED: Lumileds 3030 Or 5050
Driver: Inventronics Color Temperature: 2700K 3000k 400k 5700k
IP: 66 IK: 08
Highlight:

LED street light housing 150Lm/W

,

high luminous LED street light

,

LED street light module housing



led street lighting housing 150Lm/W High Luminous Module 0
Products Description
Model
Installation Pipe Diameter
Product Size(mm)


L
W
H
YSSL-26-50
Φ60
449
360
152
YSSL-26-100
Φ60
529
360
152
YSSL-26-150
Φ60
609
360
152
YSSL-26-200
Φ60
689
360
152
YSSL-26-250
Φ60
769
360
152
YSSL-26-300
Φ60
849
360
152
Materials
Housing:ADC12;Cover:Toughened Glass；Screws:304stainless screws
Color
Other colors can be customized according to the international color card
Led brand
LUMILEDS,OSRAM,CREE option
Led Specifications
3030,5050 option
Optical effect
130～140 lm/w,140～150 lm/w,150～160 lm/w,160～170 lm/w,170～180 lm/w,170～180 lm/w option
Color Temperature
2700K,3000K,3500K,4000K,5000K,5700K,6500K option(Reference:Energy Star)
color rendering index
Ra≥70；Ra≥80；Ra≥90 option
Optics
TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV option
Driver brand
/OSRAM/TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS
Input Voltage
AC90～305V
Security level
ClassI/ClassII/Class1/Class2 option
Frequency Range
43～63Hz
Power Factor
PF≥0.95
Working conditions Range
-30 to 45℃,20% to 90%RH
Dimming mode
Time control/0-10V/ Opticalcontrol/DALI option
Lightning protection
10KV/15KV/20KV option
Warranty
5/8 year option
Protection
Overcurrent/Short circuit/Over temperature
Protection level
IP66;IK08/09/10
Certifications
ENEC;CE;CB;IEC;RoHs;TUV;Lightning protection;LM-79;LM-80;IP66



led street lighting housing 150Lm/W High Luminous Module 1led street lighting housing 150Lm/W High Luminous Module 2led street lighting housing 150Lm/W High Luminous Module 3


















Tag:

outdoor light housing,

street light housing,

led street light enclosure
