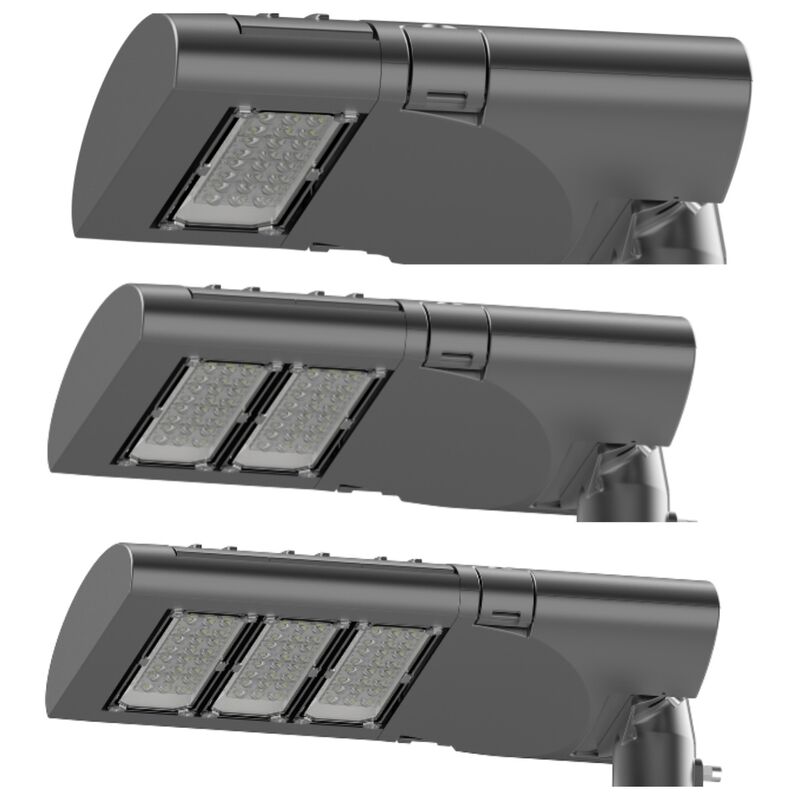

200w led street lighting housing 150Lm/W High Luminous Module

200w led street lighting housing 150Lm/W High Luminous Module
200w led street lighting housing 150Lm/W High Luminous Module
video play

Large Image :  200w led street lighting housing 150Lm/W High Luminous Module

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-26-200
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: styrofoam package and carton box
Delivery Time: 7-30days
Payment Terms: L/C, T/T
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Model: YASL-26-200 Installation Pipe Diameter: φ60mm
Product Size: 689*360*152mm LED: Lumileds 3030 Or 5050
Driver: Inventronics Color Temperature: 2700K 3000k 400k 5700k
IP: 66 IK: 08
Highlight:

200W LED street light housing

,

150Lm/W high luminous LED module

,

LED street light housing with warranty

200W LED Street Lighting Housing with 150Lm/W High Luminous Module
Product Overview
200w led street lighting housing 150Lm/W High Luminous Module 0
Model Specifications
Model Installation Pipe Diameter Length (mm) Width (mm) Height (mm)
YSSL-26-50 Φ60 449 360 152
YSSL-26-100 Φ60 529 360 152
YSSL-26-150 Φ60 609 360 152
YSSL-26-200 Φ60 689 360 152
YSSL-26-250 Φ60 769 360 152
YSSL-26-300 Φ60 849 360 152
Construction & Materials
Housing Material
ADC12 Aluminum Alloy
Cover Material
Toughened Glass
Fasteners
304 Stainless Steel Screws
Color Options
Customizable per international color card
LED & Optical Specifications
LED Brands
LUMILEDS, OSRAM, CREE
LED Types
3030, 5050
Luminous Efficacy
130-180 lm/w (multiple options)
Color Temperature
2700K-6500K (multiple options)
Color Rendering Index
Ra≥70, Ra≥80, Ra≥90
Optical Distribution
TYPE I, II, III, IV, V
Electrical & Performance
Driver Brands
OSRAM, TRIDONIC, MEAN WELL, SOSEN, INVENTRONICS
Input Voltage
AC 90-305V
Security Level
Class I/II/1/2
Frequency Range
43-63Hz
Power Factor
PF≥0.95
Operating Conditions
-30°C to 45°C, 20% to 90% RH
Control & Protection Features
Dimming Options
Time control, 0-10V, Optical control, DALI
Lightning Protection
10KV, 15KV, 20KV
Protection Features
Overcurrent, Short circuit, Over temperature
IP Rating
IP66
IK Rating
IK08/09/10
Warranty
5 or 8 years
Certifications & Compliance
  • ENEC
  • CE
  • CB
  • IEC
  • RoHs
  • TUV
  • Lightning Protection Certification
  • LM-79
  • LM-80
  • IP66
