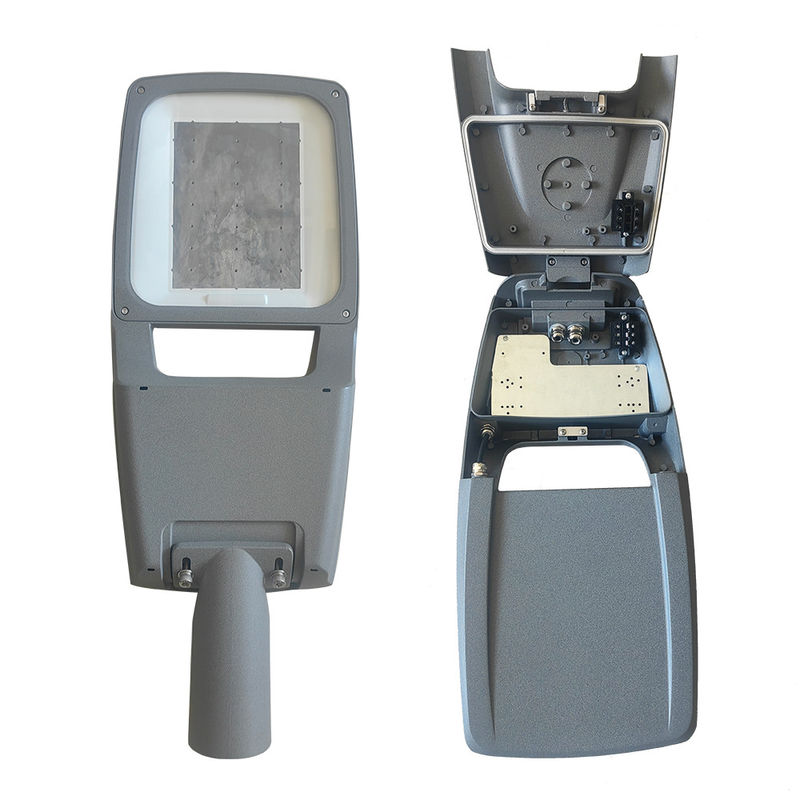

Aluminium Outdoor LED Street Lights PI66 5 years warranty 3030 5050 led

Aluminium Outdoor LED Street Lights PI66 5 years warranty 3030 5050 led
Aluminium Outdoor LED Street Lights PI66 5 years warranty 3030 5050 led

Large Image :  Aluminium Outdoor LED Street Lights PI66 5 years warranty 3030 5050 led

Product Details:
Place of Origin: Ningbo China
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: SL-27-60
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Carton box with styrofoam package
Delivery Time: 7-40 days base on order quantity
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Model: SL-27-60 Power: 60W
Installation Pipe Diameter: φ45/60mm Input Voltage: 90~305Vac
Led Chip: 3030 Or 5050 Driver: Inventronics, MOSO, SOSEN
Highlight:

aluminium outdoor LED street light

,

LED street light with warranty

,

5050 LED street light housing

Aluminium Outdoor LED Street Lights PI66 - 5 Years Warranty
Product Overview

SL-27 series LED street lights provide complete lighting solutions for road and street applications, featuring high efficiency and intelligent control capabilities.

Technical Specifications
Model SL-27-60 SL-27-120 SL-27-200
Input Wattage (W) 30/40/50/60 80/100/120 150/200/240
Installation Pipe Diameter φ60mm φ60mm φ60mm
Installation Height (m) 3-8 6-10 8-12
Input Voltage 90~305Vac
Frequency Range 50/60Hz
Power Factor ≥0.9
Light Source LED
Driver Inventronics (Meanwell optional, other brands upon request)
Luminaire Efficacy (lm/W) 130-170
Color Temperature 4000K (3000K/5000K/5700K upon request)
Color Rendering Index ≥70
Dimming Options Dali, 1-10V, PWM, Smart Control Management System (upon request)
Operating Temperature -40℃ to 45℃
Humidity 20% to 90% RH
Protection Grade IP66
Protection Level IK08
Certifications & Standards

ENEC, CB, CE, EMC, LM79, Rohs (uncertificated)

Optional Features

Photocell, Surge protection, External cable (length upon request), Smart control device

Materials & Construction
Housing ADC12 die-cast aluminum
Cover Toughened Glass
External Screws 304 stainless steel
Color Grey/Black (other colors upon request)
Key Features
  • Novel and beautiful appearance design
  • Safe and reliable structural design
  • Button type lamp opening structure design
  • Adjustable bracket for both horizontal and vertical installation
  • Intelligent control system with timing dimming capabilities
  • Class I or Class II versions available
Product Dimensions & Weight
Aluminium Outdoor LED Street Lights PI66 5 years warranty 3030 5050 led 0 Aluminium Outdoor LED Street Lights PI66 5 years warranty 3030 5050 led 1
Model Product Dimensions (mm) Packing Dimensions (mm) Net Weight (kgs) Gross Weight (kgs)
YSSL-27-60 633 × 250 × 122 700 × 320 × 190 - -
YSSL-27-120 723 × 280 × 122 790 × 350 × 190 - -
YSSL-27-200 799 × 319 × 122 860 × 390 × 190 - -
Aluminium Outdoor LED Street Lights PI66 5 years warranty 3030 5050 led 2
