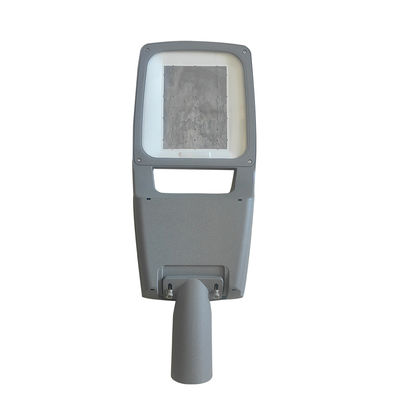

Waterproof IP66 5 years warranty Led Street Light Housing 50W 100W 120W 150W 200W Outdoor Lighting

Waterproof IP66 5 years warranty Led Street Light Housing 50W 100W 120W 150W 200W Outdoor Lighting
Waterproof IP66 5 years warranty Led Street Light Housing 50W 100W 120W 150W 200W Outdoor Lighting
video play

Large Image :  Waterproof IP66 5 years warranty Led Street Light Housing 50W 100W 120W 150W 200W Outdoor Lighting

Product Details:
Place of Origin: Ningbo China
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: SL-27-120
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Carton box with styrofoam package
Delivery Time: 7-40 days base on order quantity
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Model: SL-27-120 Power: 120
Installation Pipe Diameter: φ45/60mm Input Voltage: 90~305Vac
Led Chip: 3030 Or 5050 Driver: Inventronics, MOSO, SOSEN
Highlight:

Waterproof LED street light housing

,

IP66 outdoor LED street light

,

5-year warranty LED street light

Waterproof IP66 LED Street Light Housing with 5-Year Warranty
Waterproof IP66 5 years warranty Led Street Light Housing 50W 100W 120W 150W 200W Outdoor Lighting 0

SL-27 series LED street lights provide complete lighting solutions for road and street applications, featuring durable construction and advanced lighting technology.

Key Features
  • Compliance with international standards: ENEC, CB, CE, EMC, LM79, RoHS
  • Full wattage range from 30W to 320W
  • Ultra-high luminous efficiency with various lighting distributions
  • Intelligent control systems: timing dimming, 0-10V dimming, Dali, Zigbee, NB-Lot
  • Available in Class I or Class II configurations
Technical Specifications
Model SL-27-60 SL-27-120 SL-27-200
Input Wattage (W) 30/40/50/60 80/100/120 150/200/240
Installation Pipe Diameter φ60mm φ60mm φ60mm
Installation Height (m) 3-8 6-10 8-12
Input Voltage 90~305Vac
Frequency Range 50/60Hz
Power Factor ≥0.9
Light Source LED
Driver Inventronics (Meanwell optional, other brands upon request)
Luminaire Efficacy (lm/W) 130-170
Color Temperature 4000K (3000K/5000K/5700K upon request)
Color Rendering Index ≥70
Dimming Options Dali, 1-10V, PWM, Smart control management system (upon request)
Environment Temperature -40℃ to 45℃
Working Humidity 20% to 90% RH
Protection Grade IP66
Protection Level IK08
Standards & Certifications ENEC, CB, CE, RoHS
Optional Features Photocell, Surge protection, External cable, Smart control device
Materials Housing: ADC12 die-cast aluminum, Cover: Toughened Glass, External Screws: 304 stainless steel
Color Options Grey/Black (other colors upon request)
Product Dimensions & Weight
Model Product Size (mm) Packing Size (mm) N.W (kg) G.W (kg)
YSSL-27-60 633 × 250 × 122 700 × 320 × 190 3.4 3.8
YSSL-27-120 723 × 280 × 122 790 × 350 × 190 4.1 4.5
YSSL-27-200 799 × 319 × 122 860 × 390 × 190 4.2 4.6
Waterproof IP66 5 years warranty Led Street Light Housing 50W 100W 120W 150W 200W Outdoor Lighting 1
