Led Street Light Housing Tool Free For Road IP66 IK08 DALI ZAGA NEMA ENEC CB CE EMC LM79 Rohs

Led Street Light Housing Tool Free For Road IP66 IK08 DALI ZAGA NEMA ENEC CB CE EMC LM79 Rohs
Led Street Light Housing Tool Free For Road IP66 IK08 DALI ZAGA NEMA ENEC CB CE EMC LM79 Rohs
video play

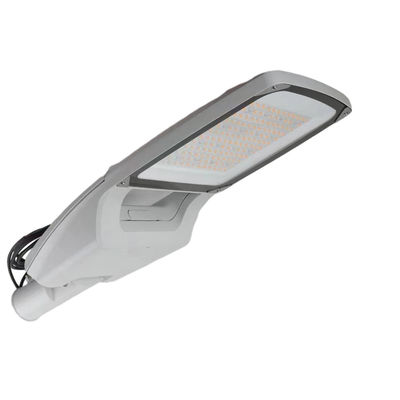

Large Image :  Led Street Light Housing Tool Free For Road IP66 IK08 DALI ZAGA NEMA ENEC CB CE EMC LM79 Rohs

Product Details:
Place of Origin: Ningbo China
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: SL-27-200
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Carton box with styrofoam package
Delivery Time: 7-40 days base on order quantity
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Model: SL-27-200 Power: 120
Installation Pipe Diameter: φ45/60mm Input Voltage: 90~305Vac
Led Chip: 3030 Or 5050 Driver: Inventronics, MOSO, SOSEN
Highlight:

LED street light housing IP66

,

tool-free LED street light

,

DALI compatible LED housing

LED Street Light Housing Tool Free For Road - IP66 IK08 DALI ZAGA NEMA ENEC CB CE EMC LM79 RoHS
Led Street Light Housing Tool Free For Road IP66 IK08 DALI ZAGA NEMA ENEC CB CE EMC LM79 Rohs 0
The SL-27 series LED street lights provide complete lighting solutions for road and street applications, featuring robust construction and advanced lighting technology.
Key Features
  • Compliance with international standards: ENEC, CB, CE, EMC, LM79, RoHS
  • Full wattage range from 30W to 320W
  • Ultra-high luminous efficiency with various lighting distributions
  • Intelligent control systems: timing dimming, 0-10V dimming, DALI, Zigbee, NB-IoT
  • Available in Class I or Class II configurations
  • Tool-free housing design for easy installation
Technical Specifications
Model SL-27-60 SL-27-120 SL-27-200
Input Wattage (W) 30/40/50/60 80/100/120 150/200/240
Installation Pipe Diameter φ60mm φ60mm φ60mm
Installation Height (m) 3-8 6-10 8-12
Input Voltage: 90~305Vac
Frequency Range: 50/60Hz
Power Factor: ≥0.9
Light Source: LED
Driver: Inventronics
Optional Drivers: Meanwell, other brands upon request
Luminaire Efficacy: 130-170 lm/W
Color Temperature: 4000K (3000K/5000K/5700K upon request)
Color Rendering Index: ≥70
Dimming Options: DALI, 1-10V, PWM, Smart control management system
Operating Temperature: -40℃ to 45℃
Operating Humidity: 20% to 90% RH
Protection Grade: IP66
Impact Protection: IK08
Standards & Certifications
ENEC, CB, CE, RoHS (uncertificated)
Optional Features
  • Photocell
  • Surge protection
  • External cable (length upon request)
  • Smart control device
Materials & Finish
Housing: ADC12 die-cast aluminum
Cover: Toughened Glass
External Screws: 304 stainless steel screws
Color: Grey/Black (other colors upon request)
