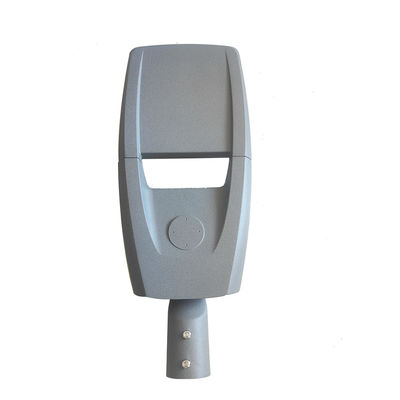

Large Image :  Led Street Light HousingP66 IK08 DALI ZAGA NEMA ENEC CB CE EMC LM79 Rohs

Product Details:
Place of Origin: Ningbo China
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: SL-27-200
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Carton box with styrofoam package
Delivery Time: 7-40 days base on order quantity
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Model: SL-27-200 Power: 120
Installation Pipe Diameter: φ45/60mm Input Voltage: 90~305Vac
Led Chip: 3030 Or 5050 Driver: Inventronics, MOSO, SOSEN
Highlight:

DALI LED street light housing

,

IK08 rated LED street light

,

NEMA certified LED housing

LED Street Light Housing P66 IK08 DALI ZAGA NEMA ENEC CB CE EMC LM79 Rohs
Led Street Light HousingP66 IK08 DALI ZAGA NEMA ENEC CB CE EMC LM79 Rohs 0
SL-27 series LED street lights provide complete lighting solutions for road and street applications, featuring compliance with international standards and intelligent control systems.
Key Features
  • Compliance with international standards: ENEC, CB, CE, EMC, LM79, Rohs
  • Full wattage range from 30W to 320W with ultra-high luminous efficiency
  • Various lighting distribution options available
  • Intelligent control system: timing dimming, 0-10V dimming, Dali, Zigbee, NB-Lot
  • Available in Class I or Class II configurations
Technical Specifications
Model SL-27-60 SL-27-120 SL-27-200
Input Wattage (W) 30/40/50/60 80/100/120 150/200/240
Installation Pipe Diameter φ60mm φ60mm φ60mm
Installation Height (m) 3-8 6-10 8-12
Electrical Specifications
  • Input Voltage: 90~305Vac
  • Frequency Range: 50/60Hz
  • Power Factor: ≥0.9
  • Light Source: LED
  • Driver Options: Inventronics (standard), Meanwell (optional), other brands upon request
  • Luminaire Efficacy: 130-170 lm/W
  • Color Temperature: 4000K (3000K/5000K/5700K upon request)
  • Color Rendering Index: ≥70
Dimming & Control Options
  • Dali (optional)
  • 1-10V (optional)
  • PWM (optional)
  • Smart control management system (upon request)
Environmental Specifications
  • Operating Temperature: -40℃ to 45℃
  • Humidity: 20% to 90% RH
  • Protection Grade: IP66
  • Impact Protection: IK08
Standards & Certifications
  • ENEC (uncertificated)
  • CB (uncertificated)
  • CE (uncertificated)
  • RoHS (uncertificated)
Optional Features
  • Photocell
  • Surge protection
  • External cable (length upon request)
  • Smart control device
Materials & Construction
  • Housing: ADC12 die-cast aluminum
  • Cover: Toughened Glass
  • External Screws: 304 stainless steel screws
  • Color: Grey/Black (other colors upon request)
Led Street Light HousingP66 IK08 DALI ZAGA NEMA ENEC CB CE EMC LM79 Rohs 1
