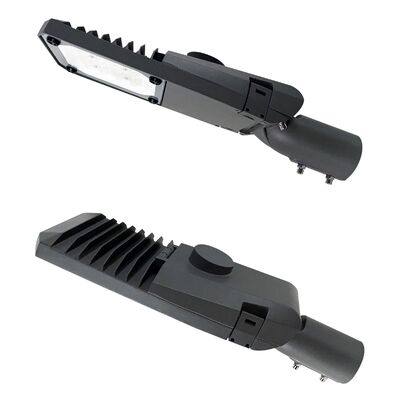

IP66 IK08 Waterproof Pole luminaire 80w 100w 120w SMD 3030 Led outdoor street lights

All Products
LED Street Light Fixtures (356)
LED Street Light Housing (394)
LED High Bay Lights (69)
Outdoor LED Street Lights (400)
Urban LED Lighting (48)
Die Casting Housing (30)
Aluminum Led Street Light (212)
High Power LED Street Light (48)
LED Street Light Module (23)
Waterproof Led Street Light (15)
COB Led Street Light (32)
Outdoor Led Garden Lights (82)
Led Stadium Flood Light (95)
Outdoor Area Lighting (73)
Road Lighting Fixtures (46)
UFO High Bay Lights (51)
Best Products
50-60hz CRI70 Outdoor Led Street Light Housing

50-60hz CRI70 Outdoor Led Street Light Housing

ac90 casting aluminumLED Street Light Housing

ac90 casting aluminumLED Street Light Housing

180W LED Street Light Housing

180W LED Street Light Housing

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

IP66 IK08 Waterproof Pole luminaire 80w 100w 120w SMD 3030 Led outdoor street lights

IP66 IK08 Waterproof Pole luminaire 80w 100w 120w SMD 3030 Led outdoor street lights
IP66 IK08 Waterproof Pole luminaire 80w 100w 120w SMD 3030 Led outdoor street lights
video play

Large Image :  IP66 IK08 Waterproof Pole luminaire 80w 100w 120w SMD 3030 Led outdoor street lights

Product Details:
Place of Origin: Ningbo, China
Brand Name: Die-casting Man
Certification: CE. EMC, LVD, ENEC, RoHs
Model Number: YASL-28-240M
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: US$21.6 - US$44.6
Packaging Details: 1PC/CTN
Delivery Time: 7-35DAYS
Payment Terms: TT
Supply Ability: 50000PCS/M
Contact Now
Detailed Product Description
Luminous Flux: 3000lm-20000lm Warranty: 3-5 Years
Working Temperature: -40°C-50°C Color: Customized Ral. No. Such As Gray, Black, White
Light Source: LED Input Voltage: AC90-305V
CRI: >70 Material: Aluminum Alloy
Highlight:

IP66 waterproof LED street light

,

IK08 rated outdoor pole luminaire

,

SMD 3030 LED street light

IP66 IK08 Waterproof Pole Luminaire 80W 100W 120W SMD 3030 LED Outdoor Street Lights
Product Specifications
Model NO. Input Wattage (W) Installation Pipe Diameter Installation Height (m)
SL-28-40 30/40/50 φ48/60mm 3-8
SL-28-60 50/60/80 φ48/60mm 4-8
SL-28-90 80/100/120 φ60mm 6-10
SL-28-120 120/150 φ60mm 8-12
SL-28-160 150/180/200 φ60mm 8-12
SL-25-240 200/240/320 φ60mm 8-14
Input Voltage: 90~305Vac
Frequency Range: 50/60Hz
Power Factor: ≥0.9
Light Source: LED
Driver Options: Inventronics, Meanwell, or other brands upon request
Luminaire Efficacy: 130-190 lm/w
Color Temperature (CCT): 4000K (3000K/5000K/5700K upon request)
Color Rendering Index (Ra): ≥70
Dimming Options: Dali (optional), 1-10V (optional), PWM (optional), Smart control management system (upon request)
Product Features
  • Product Name: LED Street Light Fixtures
  • Color: Customized RAL No. (Gray, Black, White)
  • Beam Angle: 120°
  • Dimension: Customized
  • Working Temperature: -40°C to 50°C
  • CRI: >70
  • Projector Lamp Module: Yes
  • Aluminium LED Street Lamp: Yes
Technical Parameters
Parameter Specification
Working Temperature -40°C to 50°C
Color Temperature 3000K-6000K
Luminous Flux 3000lm-20000lm
Lifespan >50,000 hours
Light Source LED
Warranty 3-5 Years
Power Factor >0.95
CRI >70
Dimension Customized
IP Rating IP65
Applications & Certifications

These LED street lights are designed to be durable and long-lasting, with a lifespan of over 50,000 hours. They are highly efficient with a power factor greater than 0.95, consuming less energy and being more cost-effective than traditional lighting systems.

The LED Street Light Fixtures are certified with CE, EMC, LVD, ENEC, and RoHS, ensuring the highest standards of safety, quality, and performance. They are IP66 and IK08 rated, making them resistant to dust, water, and impact, ideal for harsh outdoor environments.

Available in quantities as low as 1 piece, with prices ranging from US$21.6 to US$44.6. Packaged in single carton boxes for easy transportation. Delivery times range from 7 to 35 days depending on destination. Payment terms: TT. Supply capacity: up to 50,000 pieces per month.

IP66 IK08 Waterproof Pole luminaire 80w 100w 120w SMD 3030 Led outdoor street lights 0
