Die Casting Aluminum IP66 Sensor Waterproof Led Lamp Waterrproof Outdoor Lighting

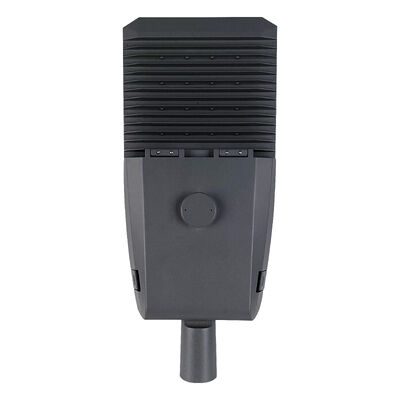

Large Image : Die Casting Aluminum IP66 Sensor Waterproof Led Lamp Waterrproof Outdoor Lighting

Product Details:

Place of Origin:	CHINA
Brand Name:	Die-casting Man
Certification:	CE, RoHs, ENEC, CB
Model Number:	YASL-28-40

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	1pc/bag/foam/carton, pallet optional
Delivery Time:	7-10 days based on order QTY
Payment Terms:	T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability:	30000pcs/month

Contact Now

Detailed Product Description

Material:	Die Casting Aluminium	Power:	30-50W
Power Factor:	PF≥0.95	Optical Effect:	130~180 Lm/w(Optional)
Protectin Grade:	IP66	Protection Level:	IK08/09/10
Color Rendering Index:	Ra≥70	Size:	550x220x230 Mm
Net Weight:	2.3 Kgs	Gross Weight:	2.6 Kgs
Highlight:	die casting aluminum LED street light , IP66 waterproof outdoor lighting , sensor waterproof LED lamp

Die Casting Aluminum IP66 Sensor Waterproof LED Lamp Waterproof Outdoor Lighting

Product Specifications

Model NO.	SL-28-40	SL-28-60	SL-28-90	SL-28-120	SL-28-160	SL-25-240
Input Wattage (W)	30/40/50	50/60/80	80/100/120	120/150	150/180/200	200/240/320
Installation Pipe Diameter	φ48/60mm	φ48/60mm	φ60mm	φ60mm	φ60mm	φ60mm
Installation Height (m)	3-8	4-8	6-10	8-12	8-12	8-14

Input Voltage: 90~305Vac
Frequency Range: 50/60Hz
Power Factor: ≥0.9
Light Source: LED
Driver Options: Inventronics, Meanwell, or other brands upon request
Luminaire Efficacy: 130-190 lm/w
Color Temperature (CCT): 4000K (3000K/5000K/5700K upon request)
Color Rendering Index (Ra): ≥70
Dimming Options: Dali (optional), 1-10V (optional), PWM (optional), Smart control management system (upon request)

Product Features

Brand Name: Die-casting Man
Model Number: YASL-28
Place of Origin: Ningbo, China
CRI: Ra>70, 80
Working Temperature: -40℃~+50℃
Input Voltage: AC85-265V
Beam Angle: 120°
Lamp Efficiency: 150lm/W

Die-casting Man YASL-28 LED Street Light Housing is an ideal lighting solution for roadway and street lighting, designed and manufactured in Ningbo, China. It features IP66 waterproof and dustproof rating, high CRI (Ra>70, 80) for excellent color rendering, and is equipped with a Lora sensor for longer range, greater security and easier operation. The light provides an even distribution of illumination with its ultra-wide 120° beam angle and operates efficiently with lamp efficiency up to 150lm/W, making it an energy-efficient choice for roadway and street lighting applications.

Packaging and Shipping

LED Street Light Housing is shipped in a cardboard box filled with foam to ensure the product arrives in perfect condition. The box is labeled with product information including weight, size, model number, and destination address. Additional protection is provided by placing the box in a larger container filled with packing materials such as bubble wrap and Styrofoam peanuts. The product is shipped via reliable courier service with full tracking throughout the delivery process.

Tag:

Contact Person: Ms. Jenny

Tel: 0086 13777291746

Fax: 86-574-65579302
