NingBo Die-Casting Man Technology Co.,ltd.
Home ProductsLED Street Light Housing

80W, 100W, 120W SMD 3030 LED outdoor street lamps with ±15° adjustable rangeInput voltage: AC 90~305V

china NingBo Die-Casting Man Technology Co.,ltd. certification
china NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

80W, 100W, 120W SMD 3030 LED outdoor street lamps with ±15° adjustable rangeInput voltage: AC 90~305V

80W, 100W, 120W SMD 3030 LED outdoor street lamps with ±15° adjustable rangeInput voltage: AC 90~305V

Large Image :  80W, 100W, 120W SMD 3030 LED outdoor street lamps with ±15° adjustable rangeInput voltage: AC 90~305V

Product Details:
Place of Origin: Ningbo, China
Brand Name: Die-casting Man
Certification: CE. EMC, LVD, ENEC, RoHs
Model Number: YASL-28-120M
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: US$21.6 - US$44.6
Packaging Details: 1PC/CTN
Delivery Time: 7-35DAYS
Payment Terms: TT
Supply Ability: 50000PCS/M
Detailed Product Description
Luminous Flux: 3000lm-20000lm Warranty: 3-5 Years
Working Temperature: -40°C-50°C Color: Customized Ral. No. Such As Gray, Black, White
Light Source: LED Optics: TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV(Optional)
CRI: >70 Material: Aluminum Alloy
Highlight:

adjustable SMD 3030 LED street lamp

,

high power LED outdoor street light

,

wide voltage LED street light housing

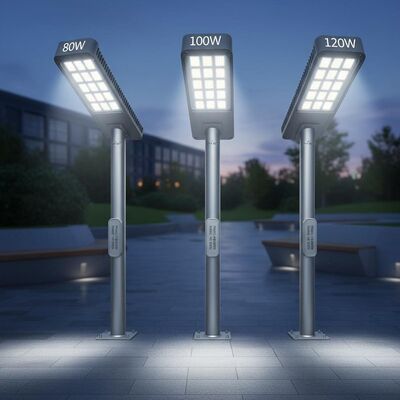

80W, 100W, 120W SMD 3030 LED Outdoor Street Lamps

High-performance LED street lights with ±15° adjustable range and wide input voltage: AC 90~305V

Product Specifications
Model NO. SL-28-40 SL-28-60 SL-28-90 SL-28-120 SL-28-160 SL-25-240
Input Wattage (W) 30/40/50 50/60/80 80/100/120 120/150 150/180/200 200/240/320
Installation Pipe Diameter φ48/60mm φ48/60mm φ60mm φ60mm φ60mm φ60mm
Installation Height (m) 3-8 4-8 6-10 8-12 8-12 8-14
  • Input Voltage: 90~305Vac
  • Frequency Range: 50/60Hz
  • Power Factor: ≥0.9
  • Light Source: LED
  • Driver Options: Inventronics, Meanwell, other brands upon request
  • Luminaire Efficacy: 130-190 lm/w
  • Color Temperature (CCT): 4000K (3000K/5000K/5700K upon request)
  • Color Rendering Index (Ra): ≥70
  • Dimming Options: Dali (optional), 1-10V (optional), PWM (optional), Smart control management system (upon request)
Product Features
  • Product Name: LED Street Light Fixtures
  • Color: Customized RAL No. (Gray, Black, White)
  • Beam Angle: 120°
  • Dimension: Customized
  • Working Temperature: -40°C to 50°C
  • CRI: >70
  • Projector Lamp Module: Yes
  • Aluminium LED Street Lamp: Yes
Technical Parameters
Working Temperature -40°C to 50°C
Color Temperature 3000K-6000K
Luminous Flux 3000lm-20000lm
Lifespan >50,000 hours
Light Source LED
Warranty 3-5 Years
Power Factor >0.95
CRI >70
Dimension Customized
IP Rating IP65
Applications & Certifications

These LED street lights are designed to be durable and long-lasting, with a lifespan of over 50,000 hours. They feature high efficiency with a power factor greater than 0.95, ensuring reduced energy consumption and cost-effectiveness compared to traditional lighting systems.

Certified with CE, EMC, LVD, ENEC, and RoHS standards, ensuring the highest levels of safety, quality, and performance. Rated IP66 and IK08 for superior resistance to dust, water, and impact, making them ideal for harsh outdoor environments.

Available in customizable colors including gray, black, and white to match any aesthetic requirement. Backed by a 3-5 year warranty for customer peace of mind and investment protection.

Ordering Information
  • Minimum Order: 1 piece
  • Price Range: US$21.6 to US$44.6
  • Packaging: Single carton box
  • Delivery Time: 7 to 35 days
  • Payment Terms: TT
  • Supply Capacity: Up to 50,000 pieces per month
Product Images
80W, 100W, 120W SMD 3030 LED outdoor street lamps with ±15° adjustable rangeInput voltage: AC 90~305V 0
80W, 100W, 120W SMD 3030 LED outdoor street lamps with ±15° adjustable rangeInput voltage: AC 90~305V 1
