Aluminum Led Street Light Designed for Long Lasting Outdoor with High Luminous Flux and Protective IP66 IK09 Ratings and 5

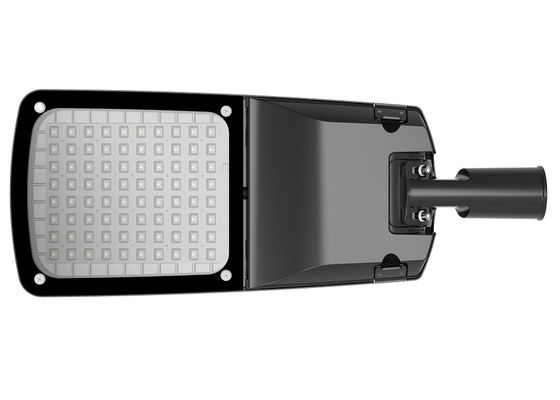

Large Image : Aluminum Led Street Light Designed for Long Lasting Outdoor with High Luminous Flux and Protective IP66 IK09 Ratings and 5

Product Details:

Place of Origin:	Zhejiang(China mainland)
Brand Name:	Diecastingman/ OEM
Certification:	CE, RoHs, EMC,LVD, GS, SAA,UL
Model Number:	YASL-19

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	neutral packing
Delivery Time:	25-45days after deposit received
Payment Terms:	L/C, T/T
Supply Ability:	20000pcs/month

Contact Now

Detailed Product Description

Power:	30-150W	Material:	Die-casting Aluminium
Color:	Double Grey, Sandy Black, Matt Silver	Warranty:	5 Years
IP:	66	LED Lifetime:	50000h
Efficiency:	130lm/w,140Im/w ,150Im/w	Input Voltage:	AC90-305V
Power Factor:	PF≥0.95	Color Temperature:	3000-6500K
Net Weight:	3.0kgs	Gross Weight:	3.5kgs
Packing Size(mm):	510×236×150
Highlight:	aluminum LED street light with IP66 rating , long lasting outdoor LED street light , high luminous flux LED street light

Aluminum LED Street Light Designed for Long Lasting Outdoor Use

Product Overview

High-performance aluminum LED street light engineered for exceptional durability and superior illumination in outdoor environments. Features high luminous flux output and robust IP66 IK09 protection ratings for reliable long-term operation.

Technical Specifications

Product Code	YASL-19-30M	YASL-19-50M	YASL-19-80M	YASL-19-150M
Input Wattage	30W	50W	80W	150W
Color Temperature	3000-6500K	3000-6500K	3000-6500K	3000-6500K
Luminous Flux	3300-3750 lm	5500-6250 lm	9200-10400 lm	17250-19500 lm
Input Voltage	AC90-305V	AC90-305V	AC90-305V	AC90-305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95	PF≥0.95
Color Rendering Index	Ra≥70	Ra≥70	Ra≥70	Ra≥70
Temperature of Working Condition	-40-50℃	-40-50℃	-40-50℃	-40-50℃
Humidity of Working Condition	20%-90%RH	20%-90%RH	20%-90%RH	20%-90%RH
LED Lifetime	50000h	50000h	50000h	50000h
Protection Grade	IP66	IP66	IP66	IP66
Installation Pipe Diameter	⌀60mm	⌀60mm	⌀60mm	⌀60mm
Installation Height	4-6m	4-6m	6-10m	8-12m
Net Weight	3.0Kg	3.7Kg	6.0Kg	7.4Kg
Gross Weight	3.5Kg	4.2Kg	6.5Kg	8.0Kg
Packing Size(mm)	510×236×150	620×270×155	670×310×155	810×340×155

Installation & Features

Designed for long-lasting outdoor performance with 5-year reliability
High luminous flux output for superior illumination
IP66 protection rating for dust and water resistance
IK09 impact resistance rating
Wide operating temperature range (-40°C to 50°C)
Extended 50,000-hour LED lifespan
Universal voltage input (AC90-305V)
