Outdoor LED Street Lights Featuring IP66 Protection and High Luminous Efficacy Suitable for Various Installation Heights

Outdoor LED Street Lights Featuring IP66 Protection and High Luminous Efficacy Suitable for Various Installation Heights
Outdoor LED Street Lights Featuring IP66 Protection and High Luminous Efficacy Suitable for Various Installation Heights
video play

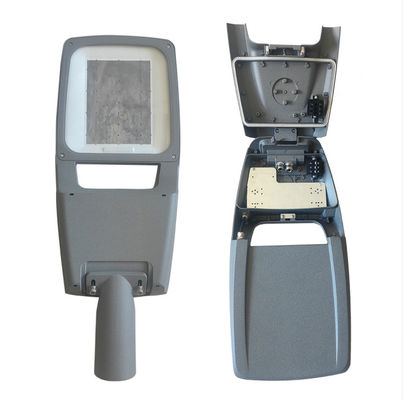

Large Image :  Outdoor LED Street Lights Featuring IP66 Protection and High Luminous Efficacy Suitable for Various Installation Heights

Product Details:
Place of Origin: Ningbo China
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-27-60
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Carton box with styrofoam package
Delivery Time: 7-40 days base on order quantity
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Model: YASL-27-60 Power: 60W
Installation Pipe Diameter: φ45/60mm Input Voltage: 90~305Vac
Led Chip: 3030 Or 5050 Driver: Inventronics, MOSO, SOSEN
Highlight:

IP66 waterproof LED street lights

,

high luminous efficacy outdoor lights

,

adjustable height LED street lights

Outdoor LED Street Lights Featuring IP66 Protection and High Luminous Efficacy
YASL-27 series LED street lights provide complete lighting solutions for road and street applications, suitable for various installation heights.
Product Specification
Compliance with international standards: ENEC, CB, CE, EMC, LM79, RoHS
Full wattage range from 30 to 320W with ultra-high luminous efficiency and various lighting distributions
Intelligent control system: timing dimming, 0-10V dimming, Dali, Zigbee, NB-IoT
Class I or Class II electrical protection available
Model YASL-27-60 YASL-27-120 YASL-27-200
Input Wattage (W) 30/40/50/60 80/100/120 150/200/240
Installation Pipe Diameter φ60mm φ60mm φ60mm
Installation Height (m) 3-8 6-10 8-12
Input Voltage: 90~305Vac
Frequency Range: 50/60Hz
Power Factor: ≥0.9
Light Source: LED
Driver: Inventronics (Meanwell optional, other brands upon request)
Luminaire Efficacy: 130-170 lm/W
Color Temperature: 4000K (3000K/5000K/5700K upon request)
Color Rendering Index: ≥70
Dimming: Dali, 1-10V, PWM (all optional), Smart control management system (upon request)
Environment Temperature: -40℃ to 45℃
Working Humidity: 20% to 90% RH
Protection Grade: IP66
Protection Level: IK08
Standards & Certifications
  • ENEC (uncertificated)
  • CB (uncertificated)
  • CE (uncertificated)
  • RoHS (uncertificated)
Options
  • Photocell
  • Surge protection
  • External cable (length upon request)
  • Smart control device
Materials
  • Housing: ADC12 die-cast aluminum
  • Cover: Toughened Glass
  • External Screws: 304 stainless steel screws
  • Color: Grey/Black (other colors upon request)
Features
  • Novel and beautiful appearance design
  • Safe and reliable structural design
  • Button type lamp opening structure design
  • Adjustable bracket available for both horizontal and vertical installation
Product Size and Weight
Outdoor LED Street Lights Featuring IP66 Protection and High Luminous Efficacy Suitable for Various Installation Heights 0 Outdoor LED Street Lights Featuring IP66 Protection and High Luminous Efficacy Suitable for Various Installation Heights 1 Outdoor LED Street Lights Featuring IP66 Protection and High Luminous Efficacy Suitable for Various Installation Heights 2
