LED Street Lights Designed with IP66 Protection and Wide Input Voltage Range for Performance in Harsh Environments

LED Street Lights Designed with IP66 Protection and Wide Input Voltage Range for Performance in Harsh Environments
LED Street Lights Designed with IP66 Protection and Wide Input Voltage Range for Performance in Harsh Environments
video play

Large Image :  LED Street Lights Designed with IP66 Protection and Wide Input Voltage Range for Performance in Harsh Environments

Product Details:
Place of Origin: Ningbo China
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-27-60
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Carton box with styrofoam package
Delivery Time: 7-40 days base on order quantity
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Model: YASL-27-60 Power: 60W
Installation Pipe Diameter: φ45/60mm Input Voltage: 90~305Vac
Led Chip: 3030 Or 5050 Driver: Inventronics, MOSO, SOSEN
Highlight:

IP66 waterproof LED street lights

,

wide voltage LED street lights

,

harsh environment outdoor LED lights

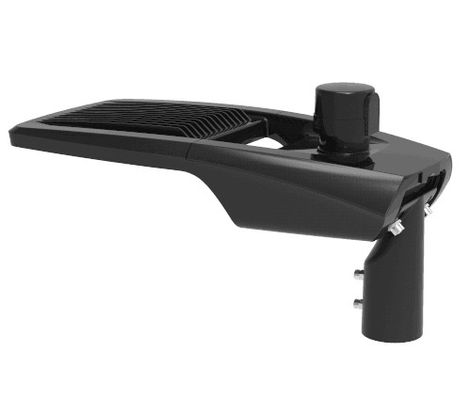

LED Street Lights with IP66 Protection and Wide Input Voltage Range
YASL-27 series LED street lights provide complete lighting solutions for road and street applications, designed to perform reliably in harsh environments.
Product Specifications
Model YASL-27-60 YASL-27-120 YASL-27-200
Input Wattage (W) 30/40/50/60 80/100/120 150/200/240
Installation Pipe Diameter φ60mm φ60mm φ60mm
Installation Height (m) 3-8 6-10 8-12
Input Voltage: 90~305Vac
Frequency Range: 50/60Hz
Power Factor: ≥0.9
Light Source: LED
Driver: Inventronics (Meanwell optional, other brands upon request)
Luminaire Efficacy: 130-170 lm/W
Color Temperature: 4000K (3000K/5000K/5700K upon request)
Color Rendering Index: ≥70
Dimming: Dali, 1-10V, PWM (all optional), Smart control management system (upon request)
Environment Temperature: -40～45℃
Working Humidity: 20%～90%RH
Protection Grade: IP66
Protection Level: IK08
Standards & Certifications
  • ENEC (uncertificated)
  • CB (uncertificated)
  • CE (uncertificated)
  • Rohs (uncertificated)
Options
  • Photocell
  • Surge protection
  • External cable (length upon request)
  • Smart control device
Materials
  • Housing: ADC12 die-cast aluminum
  • Cover: Toughened Glass
  • External Screws: 304 stainless screws
  • Color: Grey/Black (other upon request)
Key Features
  • Novel and beautiful appearance design
  • Safe and reliable structural design
  • Button type lamp opening structure design
  • Adjustable bracket for both horizontal and vertical installation
  • Intelligent control system: timing dimming, 0-10V dimming, Dali, Zigbee, NB-Lot
  • Compliance with international standards: ENEC, CB, CE, EMC, LM79, Rohs
Product Dimensions and Weight
LED Street Lights Designed with IP66 Protection and Wide Input Voltage Range for Performance in Harsh Environments 0 LED Street Lights Designed with IP66 Protection and Wide Input Voltage Range for Performance in Harsh Environments 1 LED Street Lights Designed with IP66 Protection and Wide Input Voltage Range for Performance in Harsh Environments 2 LED Street Lights Designed with IP66 Protection and Wide Input Voltage Range for Performance in Harsh Environments 3 LED Street Lights Designed with IP66 Protection and Wide Input Voltage Range for Performance in Harsh Environments 4
