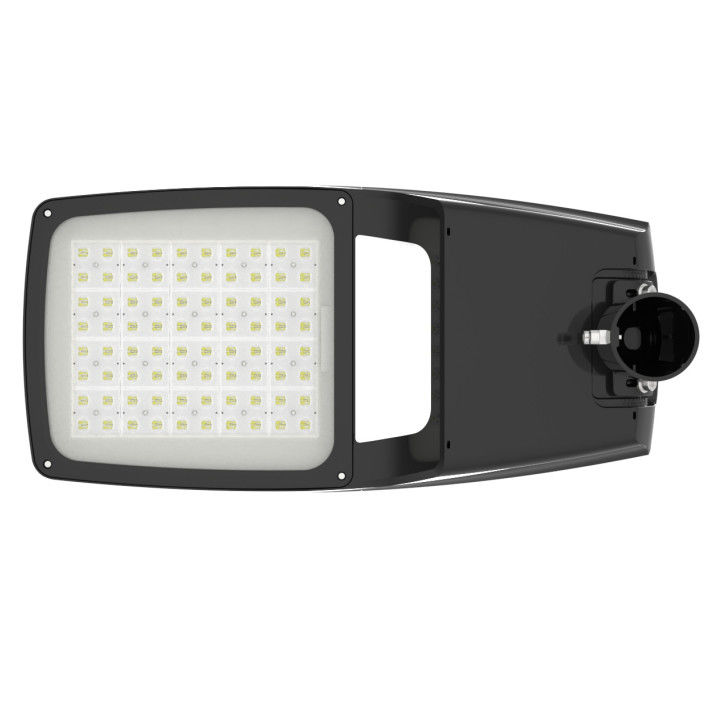

LED Street outdoor Lights IP66 Protection 5 years warranty IK08

LED Street outdoor Lights IP66 Protection 5 years warranty IK08
LED Street outdoor Lights IP66 Protection 5 years warranty IK08
video play

Large Image :  LED Street outdoor Lights IP66 Protection 5 years warranty IK08

Product Details:
Place of Origin: Ningbo China
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-27-60
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Carton box with styrofoam package
Delivery Time: 7-40 days base on order quantity
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Model: YASL-27-60 Power: 60W
Installation Pipe Diameter: φ45/60mm Input Voltage: 90~305Vac
Led Chip: 3030 Or 5050 Driver: Inventronics, MOSO, SOSEN
Highlight:

IP66 waterproof LED street lights

,

5 year warranty outdoor LED lights

,

IK08 impact resistant street lights

LED Street Outdoor Lights - IP66 Protection - 5 Years Warranty - IK08
Product Overview

YASL-27 series LED street lights provide complete lighting solutions for road and street applications, featuring robust construction and intelligent control systems.

Technical Specifications
Model YASL-27-60 YASL-27-120 YASL-27-200
Input Wattage (W) 30/40/50/60 80/100/120 150/200/240
Installation Pipe Diameter φ60mm φ60mm φ60mm
Installation Height (m) 3-8 6-10 8-12
Electrical Parameters
  • Input Voltage: 90~305Vac
  • Frequency Range: 50/60Hz
  • Power Factor: ≥0.9
Lighting Performance
  • Light Source: LED
  • Luminaire Efficacy: 130-170 lm/W
  • Color Temperature: 4000K (3000K/5000K/5700K optional)
  • Color Rendering Index: ≥70
Environmental Ratings
  • Operating Temperature: -40℃ to 45℃
  • Humidity: 20% to 90% RH
  • Protection Grade: IP66
  • Impact Protection: IK08
Driver Options
  • Inventronics (Standard)
  • Meanwell (Optional)
  • Other brands upon request
Dimming & Control
  • DALI (Optional)
  • 1-10V (Optional)
  • PWM (Optional)
  • Smart Control Management System
Certifications
  • ENEC
  • CB
  • CE
  • EMC
  • LM79
  • RoHS
Product Features
Design Excellence

Novel and beautiful appearance design with modern aesthetics

Structural Integrity

Safe and reliable structural design for long-term performance

Easy Maintenance

Button-type lamp opening structure for simplified access

Flexible Installation

Adjustable bracket supports both horizontal and vertical installation

Construction & Materials
  • Housing: ADC12 die-cast aluminum
  • Cover: Toughened glass
  • External Screws: 304 stainless steel
  • Color: Grey/Black (other colors upon request)
Optional Accessories
  • Photocell
  • Surge protection
  • External cable (custom length available)
  • Smart control device
Product Dimensions & Weight
LED Street outdoor Lights IP66 Protection 5 years warranty IK08 0 LED Street outdoor Lights IP66 Protection 5 years warranty IK08 1 LED Street outdoor Lights IP66 Protection 5 years warranty IK08 2 LED Street outdoor Lights IP66 Protection 5 years warranty IK08 3 LED Street outdoor Lights IP66 Protection 5 years warranty IK08 4
