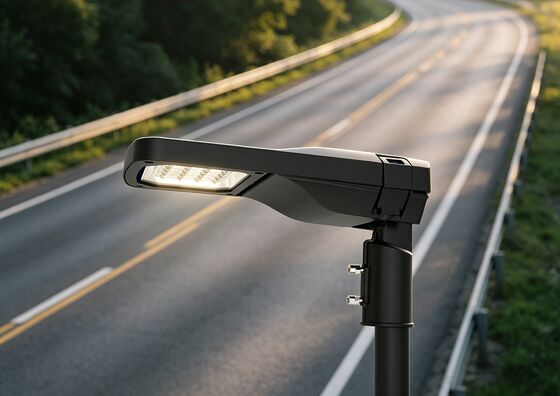

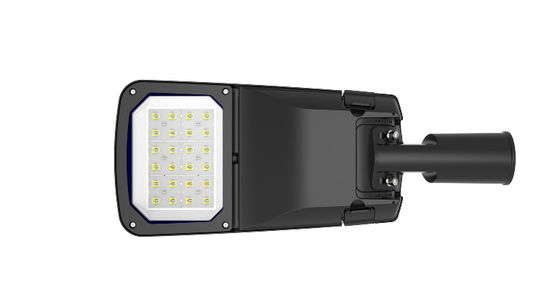

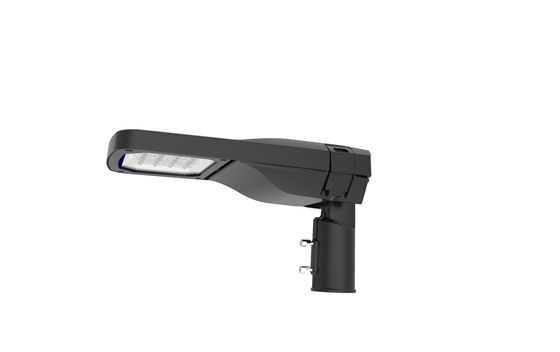

Aluminum Led Street Light Offering Outdoor Illumination With 130lm Per Watt And Robust IP66 IK09 Rated Aluminum Housing

Large Image : Aluminum Led Street Light Offering Outdoor Illumination With 130lm Per Watt And Robust IP66 IK09 Rated Aluminum Housing

Product Details:

Place of Origin:	Zhejiang(China mainland)
Brand Name:	Diecastingman/ OEM
Certification:	CE, RoHs, EMC,LVD, GS, SAA,UL
Model Number:	YASL-19

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	neutral packing
Delivery Time:	25-45days after deposit received
Payment Terms:	L/C, T/T
Supply Ability:	20000pcs/month

Contact Now

Detailed Product Description

Power:	30-150W	Material:	Die-casting Aluminium
Color:	Double Grey, Sandy Black, Matt Silver	Warranty:	5 Years
IP:	66	LED Lifetime:	50000h
Efficiency:	130lm/w,140Im/w ,150Im/w	Input Voltage:	AC90-305V
Power Factor:	PF≥0.95	Color Temperature:	3000-6500K
Net Weight:	3.0kgs	Gross Weight:	3.5kgs
Packing Size(mm):	510×236×150
Highlight:	Aluminum LED street light IP66 rated , Outdoor LED street light 130lm per watt , IK09 rated aluminum LED street light

Aluminum LED Street Light - Outdoor Illumination Solution

High-performance outdoor LED street lighting offering 130lm per watt efficiency with robust IP66 IK09 rated aluminum housing for maximum durability.

130lm/W 6500K Outdoor LED Street Lights - 30 Watt IP66 IK09 Rated - 5 Years Warranty

Product Specifications

Product Code	YASL-19-30M	YASL-19-50M	YASL-19-80M	YASL-19-150M
Input Wattage	30W	50W	80W	150W
Color Temperature	3000-6500K	3000-6500K	3000-6500K	3000-6500K
Luminous Flux	3300-3750 lm	5500-6250 lm	9200-10400 lm	17250-19500 lm
Input Voltage	AC90-305V	AC90-305V	AC90-305V	AC90-305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95	PF≥0.95
Color Rendering Index	Ra≥70	Ra≥70	Ra≥70	Ra≥70
Temperature of Working Condition	-40-50℃	-40-50℃	-40-50℃	-40-50℃
Humidity of Working Condition	20%-90%RH	20%-90%RH	20%-90%RH	20%-90%RH
LED Lifetime	50000h	50000h	50000h	50000h
Protection Grade	IP66	IP66	IP66	IP66
Installation Pipe Diameter	⌀60mm	⌀60mm	⌀60mm	⌀60mm
Installation Height	4-6m	4-6m	6-10m	8-12m
Net Weight	3.0Kg	3.7Kg	6.0Kg	7.4Kg
Gross Weight	3.5Kg	4.2Kg	6.5Kg	8.0Kg
Packing Size(mm)	510×236×150	620×270×155	670×310×155	810×340×155

Installation Options

Flexible installation with both horizontal and vertical mounting available, featuring adjustable angle from -15° to +15° for optimal light positioning.

Why Choose Our LED Street Lights

Over 21 years of manufacturing expertise in outdoor lighting solutions
Complete in-house production with die-casting machines, CNC equipment, spray lines, and assembly lines for comprehensive quality control
Dedicated tooling shop and development department for custom product development and OEM solutions

Frequently Asked Questions

What is your terms of payment?

We accept T/T and irrevocable L/C at sight. Regular orders require 30% advance payment with 70% against B/L. Long-term business relationships qualify for more advantageous payment terms.

What is your terms of delivery?

We offer FOB, CIF, and other delivery options to provide the most convenient and cost-effective solution for your needs.

What is the lead time?

Standard production takes 25-35 days after sample confirmation and advance payment receipt. Delivery time varies based on product items and order quantity. Non-standard items require additional 10-15 days for tooling/mould production.

How about tooling Charge?

Tooling charge is a one-time fee applied to the first order only. All future orders include free tooling repair and maintenance.

What is your sample policy?

We provide IP65 LED light samples for inspection. Standard samples are free, with clients responsible for freight costs.

Can you produce according to the samples or drawings?

Yes, we manufacture based on customer samples or technical drawings, including building required molds and fixtures.

How to confirm the quality with us before starting to produce?

1) We provide IP65 LED light samples for quality reference. 2) Send us your samples and we'll manufacture to match your quality standards.

How to solve the quality problems after sales?

Document issues with photos and send them to us. We provide satisfactory solutions within three days after problem confirmation.

What is your terms of packing?

Standard packing uses neutral cartons. Custom packaging with your logo available upon receiving proper authorization for legally registered patents.

Do you test all your goods before delivery?

Yes, we perform 100% testing before delivery. Our QC team follows TQM standards to ensure every production step meets quality requirements.
