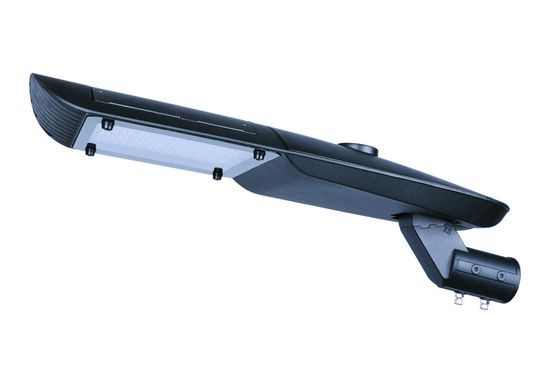

AC90-305V SMD 150W Aluminum Led Street Light

AC90-305V SMD 150W Aluminum Led Street Light
AC90-305V SMD 150W Aluminum Led Street Light AC90-305V SMD 150W Aluminum Led Street Light

Large Image :  AC90-305V SMD 150W Aluminum Led Street Light

Product Details:
Place of Origin: Zhejiang(China mainland)
Brand Name: Diecastingman/ OEM
Certification: CE, RoHs, EMC,LVD, GS, SAA,UL
Model Number: ZHHB-05-240
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: neutral packing
Delivery Time: 25-45days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 20000pcs/month
Detailed Product Description
Color Temperature: 2700-6500K Input Voltage: 90-305V
Protection Level: IP65 Operation Temperature: -40°C ~ 50°C
Material: Aluminium Lamp Luminous Flux(lm): >18750lm
Housing Color: Black,White,Silver CRI (Ra>): >70
Working Lifetime(Hour): >50000H Lamp Power: 150W
Power Factor: >0.90 Warraty: 5 Years
High Light:

Aluminum Led Street Light 150w


SMD Aluminum Led Street Light


SMD street light 150w

AC90-305V SMD 150W LED Street Light Fixtures Waterproof IP66 IK08 new shape
Product Material
*Die casting aluminum body
*Ultra clear tempered glass and PC lens


ZHSL-15 Family Product Specification

Product Code ZHSL-15-40 ZHSL-15-80 ZHSL-15-150
Input Wattage 40W 80W 150W
Color Temperature 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 4400-5000lm 9200-10400lm 17250-19500lm
Input Voltage AC90-305V AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h
Protection Grade IP66 IP66 IP66
Installation Pipe Diameter Φ60mm Φ60mm Φ60mm
Installation Height 4-7m 6-10m 8-12m
Net Weight 3.5kgs 5.0kgs 8.5kgs
Gross Weight 4.0kgs 5.5kgs 9.5kgs
Packing Size(mm) 610*240*130 710*330*130 850*380*140
Product Size(mm) 563*196*193 622*292*214 795*331*214

AC90-305V SMD 150W Aluminum Led Street Light 0
AC90-305V SMD 150W Aluminum Led Street Light 1
AC90-305V SMD 150W Aluminum Led Street Light 2
AC90-305V SMD 150W Aluminum Led Street Light 3
Main Features

1. High pressure die cast aluminium alloy housing. Anti-corrosion with Electrophoresis process.

2. High performance design with 5050 LED source and exclusive Lens.The light transmittance up to 98%. Luminous efficacy up to 160-170lm/w

3. Type I,Type II,Type III lens optional. Uniform light distribution apply to different street light project.

4. Excellent operating temperature -40°C ~ 50°C

5. Replaceable and upgradeable modular design easy assembly easy installation and easy maintenance.

6. Green product,no UV or IR radiation,no mercury pollution.Passed IEC62471 test.

7. -15 ~ +15° angle adjustable and applicable different mounting arm.

8. With Excellent housing design reach IP66/IK09 rating.

9. Vibration resistant and Surge protection 10KV/20KV.

10. Easy replacement of the entire LED module and electronic system by removing the top cover.

11. Double Clip on closure,"Plug and Play" system suitable for SKD .

12. LEDs with multi-chips Package has high lumen,stable performance,low light failure and no dead lights.

13. Dimming and smart lighting system available upon request.

14. CE,Rohs,CB,LM-79,LM-80 approved.

15. Life-span over 50,000 hours,5 years warranty.
Packaging & Shipping
Payment terms :L/C T/T.
Minimum order: 1unit.
Lead time/Delivery time: 25-45days after deposit received.
Sample available: Yes,ask for sample.
FOB port: Ningbo
Loading info: Sample can send by DHL,TNT,Fedex,small order can send by air freight,and big quantity can send container from Ningbo port.
Packing info: Each light will be packed by the cartons,shipment will load into the container by pallet or pcs according to the buyer's requirement.

Q:Are you manufacturer or trading company?
A: We’re manufacturer specializing in LED lights fields for many years.
Q: Required mainly certificates (CE & IEC/ TUV/ RoHs)?
A: Our products are certified by CE RoHs, IEC, C-tick etc.
Q: Your main export market?
A: The main market of our products is: East & West Europe, South-east Asia, North & South America, Australia, Africa.
Q: How many years you guarantee your products?
A: For LED lights: 5 years.
Q: How would you deal if any quality problem happens?
A: First, we need to know how it happens, thus pictures or videos are needed. Then, if this quality problem is caused by us, we’ll be 100% responsible for it. And we’ll have different solutions according to different cases.
