Product Details:
Payment & Shipping Terms:
|
| Light Source: | LED | Chip: | CREE |
|---|---|---|---|
| Power: | Max 100w | Warranty: | 5 Years |
| Light Transit: | >95% | Input Voltage(V): | 85-265V |
| Lamp Power(W): | 60-100W | Lamp Luminous Flux(lm): | >11000lm |
| Lamp Luminous Efficiency: | 110lm/w | CRI (Ra>): | >70 |
| Color Temperature(CCT): | 2700-6500k | Working Temperature: | -35 - 50℃ |
| Working Lifetime: | >50000H | Lamp Body Material: | Aluminum |
| IP Rating: | IP65 | Certification: | CE,GS,RoHs,SAA , UL |
| Power Factor: | >0.9 | Working Frequrency: | 50-60HZ |
| High Light: | outdoor street light fixtures,outside street lights |
||

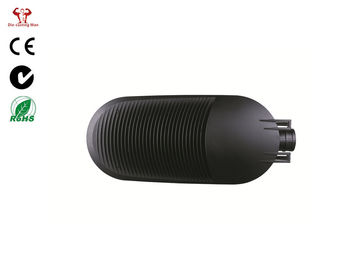

48 Pcs SMD 60-100 W Led Street Lighting With Meanwell Driver
Specifications:
| Electrical Specifications | ||
| Input Volatge | AC85-265V | |
| DC Optional(DC12V-24V/50-60HZ) | ||
| Total Harmonic Distortion | <9% | |
| Power Factor | >0.9 | |
| LED's Quantity | 48PCS | |
| Power Consumption | 100W | |
| Power Efficiency | >80% | |
| Lamp's Efficiency | 110lm/w | |
| Connection Wires | Brown | Positive(+) |
| Blue | Negative(-) | |
| Yellow/Green | Ground(G) | |
| Lighting Specifications | ||
| Luminous Flux(Lumens) | Warm White-6400lm | |
| Natural White-6500lm | ||
| Cool White-6600lm | ||
| Color Temperature | Warm White(3000-4000K) | |
| Natural White(5500-6000K) | ||
| Cool White(7000-7500K) | ||
| Color Rendering Index | >70 | |
| Beam Angle | 120degree | |
| Operating Specifications | ||
| LED Junction Temperature | <80 | |
| Working Temperature | ’-35- +50 | |
| Storage Temperature | ’-25- +65 | |
| IP Rating | IP65 | |
| Working Lifespan | >50000hrs | |
| Warranty | 3years | |
| 5years Optional | ||
| Mechanical Specifications | ||
| Mounting Hole Size | 72mm | |
| Product Size | 622*292*112mm | |
| Net Weight | 6.96kgs | |
| Gross Weight | 7.88kgs | |
| Color of the Lamp Shell | Grey | |
LED Light Quality Testing Equipments
For every piece of LED Street Light, they will be tested in many procedures.
Picture No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under
extreme temperature environment.
Picture No. 2: Anti-Corrosion Testing, to make sure the high bay lights are working well even under
corrosive environment.
Picture No. 3: Drop Testing, to make sure the lamps remain good even dropped from high places
Picture No. 4: Anti-Vibration Testing, to make sure the packages are strong and good enough for delivery.
Picture No. 5~6: Dark Room for testing IES files and other Photometric datas.
Quality Control - Aging department
For every piece of LED Lights, they will be aged for at least 72 hours before delivery to make sure of
their long term and stable performances within lifetime.
Application:
Used for highway, main road, pavement street, residential road, branch road,
rural roads, Square,Parking lots, Gardens, Industrial roads,and indoor high space lighting,factories. etc
Packaging & Shipping
Payment terms :L/C T/T.
Minimum order: 1unit.
Lead time/Delivery time: 25-45days after deposit received.
Sample available: Yes,ask for sample.
FOB port: Ningbo
Loading info: Sample can send by DHL,TNT,Fedex,small order can send by air freight,and big quantity can send container from Ningbo port.
Packing info: Each light will be packed by the cartons,shipment will load into the container by pallet or pcs according to the buyer's requirement.
About Die-casting Man Group:
*specialized in production of aluminum die-casting outdoor lighting housing for more than 24years.
*capable of independent mold designing & opening.
*with staff more than 100 people (10 professional technicians), floor area more than 10,000 square meters
*with more than 10 sets of 160T, 250T, 400T, 630T and 1000T cold-chamber & hot-chamber horizontal die-casting machines, static spray coating production lines and lamp assembly production lines.
*emphasis on developing high power LED street lights & lighting housing, LED high bay lights, LED tunnel
lights and so on.
FAQ:
Q:Are you manufacturer or trading company?
A: We’re manufacturer specializing in LED lights fields for many years.
Q: Required mainly certificates (CE & IEC/ TUV/ RoHs)?
A: Our products are certified by CE RoHs, IEC, C-tick etc.
Q: Your main export market?
A: The main market of our products is: East & West Europe, South-east Asia, North & South America, Australia, Africa.
Q: How many years you guarantee your products?
A: For LED lights: 5 years.
Q: How would you deal if any quality problem happens?
A: First, we need to know how it happens, thus pictures or videos are needed. Then, if this quality problem is caused by us, we’ll be 100% responsible for it. And we’ll have different solutions according to different cases.
