Product Details:
Payment & Shipping Terms:
|
Manufacturer: | Ninghai Zhouhua Die Casting Co.,Ltd | Material: | ADC12 Aluminum |
---|---|---|---|
CRI: | >70 | Fixture Color: | Gray |
Input Voltage: | AC85 - 265V | Working Ambient Temperature: | -30℃ - 50℃ |
IP: | 66 | Lamp Power: | 50W |
High Light: | outdoor street light fixtures,outside street lights |

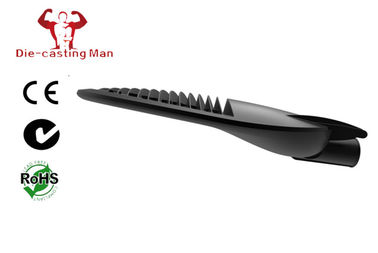

High Efficiency Grey Outdoor Led Street Lights High Flux Street Lamps
Item No.: ZHSL-09-50
Item NO. | ZHSL-09-50 |
LED Quantity | 24pcs |
Rated Power | 50W |
Color Temperature | 2700-6500K |
Initial Luminous Flux | 5200LM |
Input Voltage | AC85-265V |
Frequency Range | 50-60Hz |
Power Factor | PF>0.95 |
Color Rendering Index | Ra>75-80 |
Temperature Working Condition | -40℃ - 50℃ |
Humidity of Working Condition | 20-90% |
LED Lifetime | 70000h |
Protection Grade | IP65 |
Installation Pipe Diameter | 60mm |
Installation Height | 6-8m |
Product Dimension | 485x230x98 mm |
Net Weight | 7 kgs |
Gross Weight | 8 kgs |
Packing Size | 52 x25 x21 cm |
LED Engine Module
· LED life time of 30,000+ hours
· High power integrated packaging LED chips, 120° beam spread available
· Minimum CRI of 70, custom CRI available
· Operating temp: -30º C to +60º C
· No toxic chemicals / ROHS compliant
· Low Tj for long life, low lumen depreciation
· CE certified, meets ROHS standards
· Eligible for Rebates, Design Lights Consortium® Qualified*
· 50-80% energy savings
· Manufactured in the China
· Standard distribution is Type V, others distributions available
Electrical
· Standard AC input of 85-265v VAC, up to 480v available
· EMI filter: 47CFR, part 2, part 15
· Power factor: >0.9
· Total harmonic distortion: <20%
· Surge protection: IEC/EN 61000-4-5 EMC test standard
· Licensed electrician required for installation
Housing
· Rugged, fully sealed, die-cast aluminum housing
· UV-resistant, multi-layer, architectural color, powder coat finish
· High impact, heat resistant, tempered lens
Energy Control Options
· Motion detection available
· Photo sensors available
Application:
Motorways , Major roads, minor roads, roundabouts, crossings and industrial areas.
Available housing colors: Black, Grey, White.
