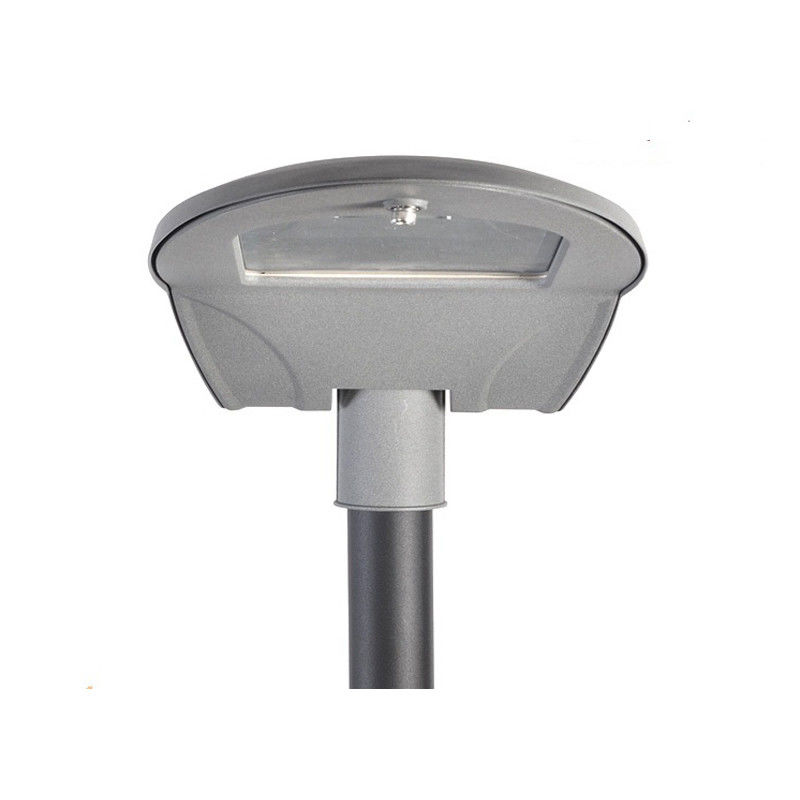

SMD 90W TUV IP66 IK09 Waterproof Led Street Light

Large Image : SMD 90W TUV IP66 IK09 Waterproof Led Street Light

Product Details:

Place of Origin:	CHINA
Brand Name:	Die-casting man
Certification:	CE,ROHS,UL
Model Number:	YASL-05-60

Payment & Shipping Terms:

Minimum Order Quantity:	1-5pcs
Price:	$3.83-$11.29/sets
Packaging Details:	Carton box with foam
Delivery Time:	7days after final confirm
Supply Ability:	3000sets per month

Contact Now

Detailed Product Description

Manufacturer:	Ninghai Zhouhua Die-casting Co.,LTD	Material:	Aluminum
Input Voltage:	AC85 - 265V	Frequency Range:	50 - 60Hz
LED Color:	WW/NW/CW	Beam Angle:	120°
Highlight:	IK09 Waterproof Led Street Light , IP66 Waterproof Led Street Light , 90W Waterproof Led Street Light

Exterior Industrial Led Flood Lights 20w Led Floodlight High Efficient

Product Code		ZHSL-05-60
Input Wattage		100W
Color Temperature		3000-6500K
Luminous Flux		10500-12500 lm
Input Voltage		AC90-305V
Frequency Range		50/60Hz
Power Factor		PF≥0.95
color rendering index		Ra≥70
Temperature of Working Condition		-40--50℃
Humidity of Working Condition		20%-90%RH
LED Lifetime		50000h
Protectin Grade		IP66
Installation Pipe Diameter		φ50-60mm
Installation Height		4-8m
Net Weight		6.5 KG
Gross Weight		7.0 KG
Packing Size		700350160mm

Description:

20W Outdoor Led Floodlight with Bridgrlux LED Chips as 9600lumens output,high quality die-casting aluminum body,IP65,3Years warranty.

1. High light intensity , simple designs and ideally suited.

2. High quality Die casting aluminum boday with anti-corrosiontreatment and with electrostatic plastic coating.

3. LED Floodlight housing can make 20W-30W.

4. Highly polished aluminum reflector.

5. Adjustable single bracket could make the light for 120 degree around.

6. High Efficient and power factor led power supply .

7. Obtain a 50-70% energy saving compared with halogen lamps.

8. Replace traditional SON and Metal Halide which consume 400W.

Applications:

Lighting Walls,Advertisement Boards,Gardens,Hotels,Car Parks,Area with CCTV.

Specifications

Model Number	YASL-05-60
Electrical Specifications	LED QTY	120pcs
	TotaLPower consumption	90W
	Operation Voltage	85-265VAC
	Operating Humidity	10%~90%
	Working Temperature	-30 ~ 50°C
	Power Fact(PF)	>0.9
	Driver Efficiency	> 0.9
Photometric Specifications	LED Luminous Flux	1700 lm - Initial
		2000 lm - Maintain
	Led Luminous Efficiency	>70LM/W
	CRI	Ra ≥ 70
	LED Color	3000k-6500k
	Beam Angle	120 degree
Mechanical Specifications	IP Rating	IP66
	Warranty	3Years
	Heat Radiator	die-casting body as heat sink
	Lens	Patented anti-glare optic lense
	Fixture Dimension	115.06141.951.14MM
	Fixture Weight
Packing Information	Packing Type	2pcs /ctn
	Packing Dimension	695644CM
	Packing Weight	7KGS

SMD 90W TUV IP66 IK09 Waterproof Led Street Light 0

SMD 90W TUV IP66 IK09 Waterproof Led Street Light 1
