Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Input Voltage: | AC90- 305V |
|---|---|---|---|
| Frequency Range: | 50 - 60Hz | LED Color: | WW/NW/CW |
| Beam Angle: | 120° | Protection Grade: | IP66 |
| Ik Rating: | IK08 | LED Lifetime: | 50000h |
| High Light: | 30000lm outdoor led stadium lights,IP66 sports field flood lights,30000lm sports field flood lights |
||

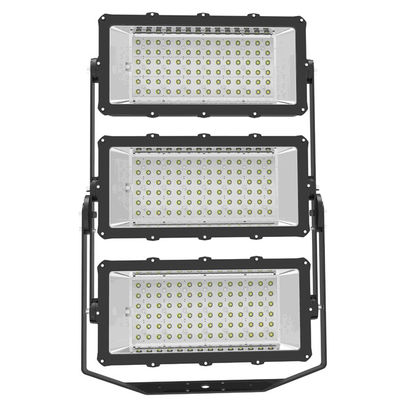

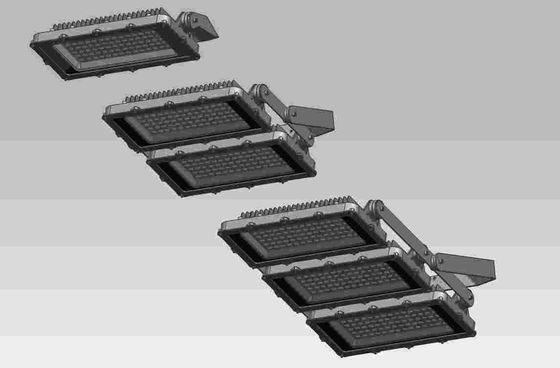

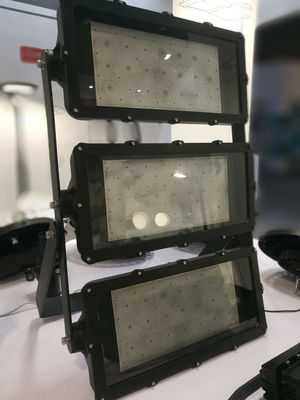

120 Degree Outdoor Led Flood Light Fixtures Led Street Light Replacement
Quick Detail:
|
Name |
600W Led Flood Light |
Application |
Advertisement boards |
|
Color |
Grey,black,White,or custom color |
Feature |
latest Design |
|
Lamp Luminous Flux(lm) |
30000 |
Certificate |
TUV /CE/ROHS |
Description:
300W Outdoor Led Floodlight with 3030 LED Chips high quality die-casting aluminum body,IP65,3Years warranty.
1. High light intensity , simple designs and ideally suited.
2. High quality Die casting aluminum boday with anti-corrosiontreatment and with electrostatic plastic coating.
3. LED Floodlight housing can make 200W.
4. Highly polished aluminum reflector.
5. Adjustable single bracket could make the light for 120 degree around.
6. High Efficient and power factor led power supply .
7. Obtain a 50-70% energy saving compared with halogen lamps.
8. Replace traditional SON and Metal Halide which consume 400W.
Applications:
Lighting Walls,Advertisement Boards,Gardens,Hotels,Car Parks,Area with CCTV.
Specifications
|
Model Number |
HP-01-600 | |
|
Electrical Specifications |
LED QTY |
1008pcs |
|
TotaLPower consumption |
600W |
|
|
Operation Voltage |
85-265VAC |
|
|
Operating Humidity |
10%~90% |
|
|
Working Temperature |
-30 ~ 50°C |
|
|
Power Fact(PF) |
>0.9 |
|
|
Driver Efficiency |
> 0.9 |
|
|
Photometric Specifications |
LED Luminous Flux |
20000 lm - Initial |
|
|
20000 lm - Maintain |
|
|
Led Luminous Efficiency |
>70LM/W |
|
|
CRI |
Ra ≥ 70 |
|
|
LED Color |
3000k-6500k |
|
|
Beam Angle |
120 degree |
|
|
Mechanical Specifications |
IP Rating |
IP65 |
|
Warranty |
3Years |
|
|
Heat Radiator |
die-casting body as heat sink |
|
|
Lens |
Patented anti-glare optic lense |
|
|
Fixture Dimension |
115.06*141.9*51.14MM |
|
|
Fixture Weight |
32KGS |
|
|
Packing Information |
Packing Type |
1pcs /ctn |
|
Packing Dimension |
69*56*44CM |
|
|
Packing Weight |
37KGS |
|
