|Manufacturer:||Die Casting Man||Material:||Aluminum|
|Wattage:||150w||Fixture Color:||Light Grey|
|Input Voltage:||AC85 - 265V||Frequency Range:||50 - 60Hz|
|Working Ambient Humidity:||10% - 90%||Working Ambient Temperature:||-30℃ - 50℃|

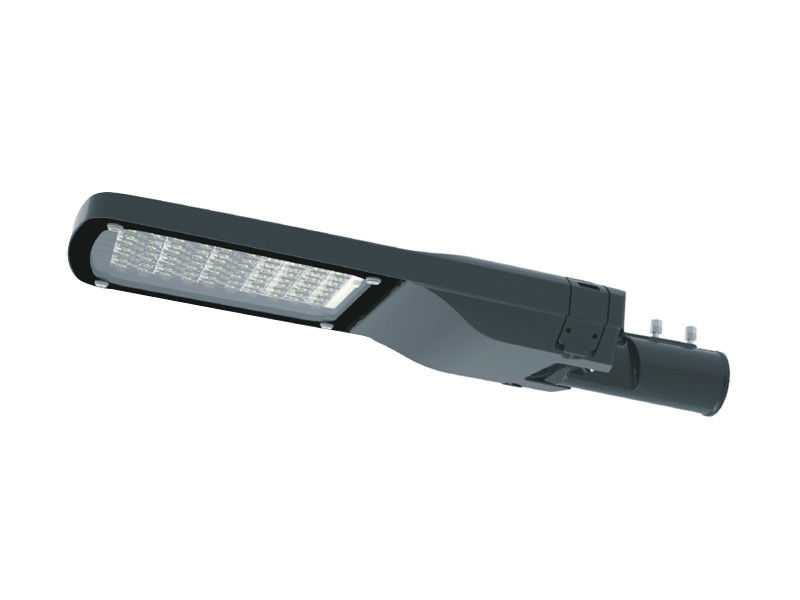

150W Waterproof Street Lamp,
CW Waterproof Street Lamp,
CRI>70 Waterproof Street Lamp
|Color rendering index||Ra≥70||Ra≥70||Ra≥70|
|Temperature of working condition||-40-50℃||-40-50℃||-40-50℃|
|Humidity of working condition||20%-90%RH||20%-90%RH||20%-90%RH|
|Installation Pipe Diameter||Φ60mm||Φ60mm||Φ60mm|
1. High pressure die cast aluminium alloy housing. Anti-corrosion with Electrophoresis process.
2. High performance design with 5050 LED source and exclusive Lens.The light transmittance up to 98%. Luminous efficacy up to 160-170lm/w
3. Type I,Type II,Type III lens optional. Uniform light distribution apply to different street light project.
4. Excellent operating temperature -40°C ~ 50°C
5. Replaceable and upgradeable modular design easy assembly easy installation and easy maintenance.
6. Green product,no UV or IR radiation,no mercury pollution.Passed IEC62471 test.
7. -15 ~ +15° angle adjustable and applicable different mounting arm.
8. With Excellent housing design reach IP66/IK09 rating.
9. Vibration resistant and Surge protection 10KV/20KV.
10. Easy replacement of the entire LED module and electronic system by removing the top cover.
11. Double Clip on closure,"Plug and Play" system suitable for SKD .
12. LEDs with multi-chips Package has high lumen,stable performance,low light failure and no dead lights.
13. Dimming and smart lighting system available upon request.
14. CE,Rohs,CB,LM-79,LM-80 approved.
15. Life-span over 50,000 hours,5 years warranty.
1. Payment term: 30% deposit by T/T and 70% before delivery or against Copy of BL.
2. Delivery time: 25 days
3. Samples time: 7 days.
4. Shipping terms: FOB Ningbo.
5. Discounts will be determined by quantity.
6. Welcome distributors to cooperate together.
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,
electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.
Q4. We now have outdoor projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED light supplier, our design teams can provide you the best solution.
And if you have the tech to make design yourself , we can provide the IES files for you.
Q5.I have a street/high way project,what's your suggestion?
Please give me the below information:
A:the wide of the street.
B:the arrangement and the height of the light poles
C:the requirement of the illumination.
