Product Details:
Payment & Shipping Terms:
|
| Manufacturer: | NingboDie Casting Man Technology Co.,Ltd | Material: | ADC12 Aluminum |
|---|---|---|---|
| Wattage: | COB 60W Etc | Fixture Color: | Grey |
| IP: | 65 | CRI: | >70 |
| Input Voltage: | AC85 - 265V | Frequency Range: | 50 - 60Hz |
| Working Ambient Humidity: | 10% - 90% | Working Ambient Temperature: | -30℃ - 50℃ |
| High Light: | outdoor street light,outside street lights |
||

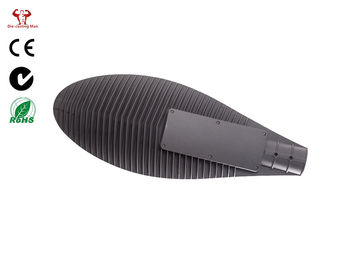

Exterior Decorative Street LED Lighting Led Light Street Bridgelux Chip ,IP 66 high lumen50W
Quick Detail:
|
Name |
Cob 60W Led Steet lights |
Application |
Use for Roadway |
|
Color |
Grey |
Feature |
New Design |
|
Lamp Luminous Flux(lm) |
6350 |
Certificate |
CE/ROHS |
Description:
New Design High power 60W LED streetlight made of High quality Die Casting Aluminum housing with brighting LED and long life Driver
1. The latest version of high power COB Street Light Housing
2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat management system,which can hold maximum 1pc 60W Bridgelus COB led.
3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.
4. IP65 protection grade.
5. User-friendly mechanical designing,easy to assemble the led,potic lense and led power supply.
6.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.
Applications:
Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.
Specifications
|
Model Number |
ZHSL-10-50 |
|
|
Electrical Specifications |
LED QTY |
60W x1Pc |
|
TotaLPower consumption |
60W |
|
|
Operation Voltage |
85-265VAC or 12VDC or 24VDC |
|
|
Operating Humidity |
10%~90% |
|
|
Working Temperature |
-30 ~ 50°C |
|
|
Power Fact(PF) |
>0.95 |
|
|
Driver Efficiency |
> 0.9 |
|
|
Photometric Specifications |
LED Luminous Flux |
6900 lm - Initial |
|
|
6350 lm - Maintain |
|
|
Led Luminous Efficiency |
>90LM/W |
|
|
CRI |
Ra ≥ 70 |
|
|
LED Color |
3000k-6500k |
|
|
Mechanical Specifications |
IP Rating |
IP65 |
|
Warranty |
3Years |
|
|
Heat Radiator |
die-casting body as heat sink |
|
|
Lens |
Patented anti-glare optic lense |
|
|
Fixture Dimension |
650x236x117MM |
|
|
Fixture Weight |
4.3kgs(9.5lbs) |
|
|
Packing Information |
Packing Type |
1unit /ctn |
|
Packing Dimension |
70 x29 x16 cm (27.5” x11.4” x6.3”) |
|
|
Packing Weight |
5.4kgs(11.9lbs) |
|
Pictures
Exhibition
Building
Why choose us
1.Die-casting Man has more than 21 years experience in manufactuering the outdoor lighting.
2.We have our own die-casting machine,CNC machine,spray line,assembling line.In this way,will be easy to control the quality.
3.And we also have our own tooling shop and develop department,can help customer develop their own products.
