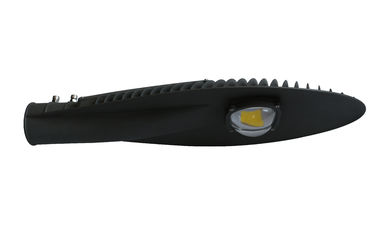

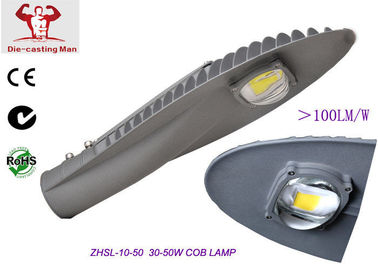

Outdoor LED Street Light Fixtures / Bridgelux Chip IP66 COB Lamp For Minor Roads

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Outdoor LED Street Light Fixtures / Bridgelux Chip IP66 COB Lamp For Minor Roads

Product Details:
Place of Origin: China
Brand Name: Die Casting Man/OEM
Certification: CE,ROHS, UL,SAA
Model Number: ZHSL-10-50(60W)
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: 18USD
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union, L/C
Supply Ability: 10000PCS/Month.
Detailed Product Description
Manufacturer: Ninghai Zhouhua Die Casting Co.,Ltd Material: ADC12 Aluminum
Wattage: COB 60W Fixture Color: Grey/Black/Silver
IP: 66 LED Color: WW/NW/CW
CRI: >70 Input Voltage: AC85 - 265V
Frequency Range: 50 - 60Hz Working Ambient Humidity: 10% - 90%
Working Ambient Temperature: -30℃ - 50℃
High Light:

outdoor light housing

,

led street light enclosure



Exterior Decorative Street Lighting Led Light Street Bridgelux Chip





Quick Detail:



Name

 Cob 60W Led Steet lights

Application

Use for Roadway

Color

Grey

Feature

New Design

Lamp Luminous Flux(lm)

6350

Certificate

CE/ROHS



Description:



New Design High power 60W LED streetlight made of High quality Die Casting Aluminum housing  with brighting LED  and long life Driver





1. The latest version of high power COB Street Light Housing



2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat management system,which can hold maximum 1pc 60W Bridgelus COB led.



3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.



4. IP65 protection grade.



5. User-friendly mechanical  designing,easy to assemble the led,potic lense and led power supply.



6.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.





Applications:



Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.





Specifications



Model Number

ZHSL-10-50

Electrical Specifications

LED QTY

60W x1Pc

TotaLPower consumption

60W

Operation Voltage

85-265VAC or 12VDC or 24VDC

Operating Humidity

10%~90%

Working Temperature

-30 ~ 50°C

Power Fact(PF)

>0.95

Driver Efficiency

> 0.9

Photometric Specifications

LED Luminous Flux

6900 lm - Initial



6350 lm - Maintain

Led Luminous Efficiency

>90LM/W

CRI

Ra ≥ 70

LED Color

3000k-6500k

Mechanical Specifications

IP Rating

IP65

Warranty

3Years

Heat Radiator

die-casting body as heat sink

Lens

Patented anti-glare optic lense

Fixture Dimension

650x236x117MM

Fixture Weight

4.3kgs(9.5lbs)



Packing Information

Packing Type

1unit /ctn

Packing Dimension

70 x29 x16 cm (27.5” x11.4” x6.3”)

Packing Weight

5.4kgs(11.9lbs)

Outdoor LED Street Light Fixtures / Bridgelux Chip IP66 COB Lamp For Minor Roads 0Outdoor LED Street Light Fixtures / Bridgelux Chip IP66 COB Lamp For Minor Roads 1Outdoor LED Street Light Fixtures / Bridgelux Chip IP66 COB Lamp For Minor Roads 2

Outdoor LED Street Light Fixtures / Bridgelux Chip IP66 COB Lamp For Minor Roads 3Outdoor LED Street Light Fixtures / Bridgelux Chip IP66 COB Lamp For Minor Roads 4
