Product Details:
Payment & Shipping Terms:
|
| Item: | SL-09-50 | Material: | Aluminium |
|---|---|---|---|
| Wattage: | 60W | LED Lifetime: | 50000h |
| Protection Grade: | IP66 | Pole Size: | 50-60mm |
| Colour: | Black And Grey | Product Size: | 530*230*105mm |
| High Light: | outdoor light housing,street light housing |
||
ZHSL-09 Family Product Specification
| Product Code | ZHSL-09-30 | ZHSL-09-50 | ZHSL-09-100 | ZHSL-09-150 |
| Input Wattage | 40W | 60W | 100W | 180W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 4200-4800lm | 6600-7500lm | 11000-12500lm | 19800-22500lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ50-60mm | Φ50-60mm | Φ50-60mm | Φ60-70mm |
| Installation Height | 3-6m | 4-8m | 8-12m | 10-14m |
| Net Weight | 2.7kgs | 4.0kgs | 6.5kgs | 12.8kgs |
| Gross Weight | 3.0kgs | 4.5kgs | 7.0kgs | 13.2kgs |
| Packing Size(mm) | 490*250*210 | 560*250*210 | 675*315*155 | 895*400*175 |
| Product Size(mm) | 455*180*95 | 530*230*105 | 736*292*112 | 846*367*134 |
Photometric Data
Line Drawing
Product Description

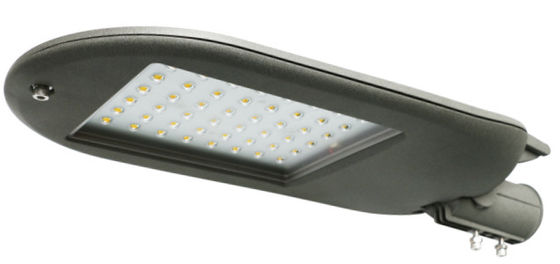

*This series is a high-performance street lighting available in three size
*The luminaire is manufactured from high pressure die-casting aluminum
*It shall have a led efficiency up to 120lm/w and will be capable of producing up to 18000luminair lumens at 4000K finished in grey or black as standard.
