| Material: | Aluminum | Wattage: | 100W |
|---|---|---|---|
| IP: | 66 | CRI: | >70 |
| LED Color: | WW/NW/CW | Input Voltage: | AC85 - 265V |
| Frequency Range: | 50 - 60Hz | Working Ambient Temperature: | -30℃ - 50℃ |
| Working Ambient Humidity: | 10% - 90% | IK: | 08 |
| High Light: | CW led street light fixtures,pf0.95 led street light fixtures,ENEC led street light fixtures |
||

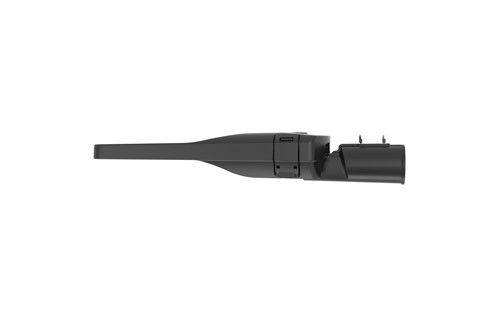

80w tempering glass LED street light Middle size ZHSL-19-80 with IP66, IK08
Product Description:
1. With entire aluminium housing structure , the led contact the heatsink closely, optimize heat dissipation.
2. Specially designed for outdoor using , with self-cleaning mechanism lead to less dust and water accumulation ,
reducing maintenance.
3. Tool-free design and disconnector device, enables easy, safe and minimal cost for maintenance.
4. Effcient system aslo to reduce energy consumption and to create a more attractive urban living environment
and visual comforts for public and residential areas.
5. It has a diameter of 70mm standard poles, cover for broader ,IP66 ,anti-17 wind.
| Item no. | SL-19-80 | ||
| Rated Power | 80W | 100W | 120W |
| Luminous Flux: | 9600~12000LM | 12000~15000LM | 14400~18000LM |
| Input Voltage | 90-305VAC, 277-528VAC, DC24V,DC14V,50-60Hz | ||
| LED Type | Lumileds chip | ||
| Color Temperature: | 2700k-7000K | ||
| Conversion Efficiency: | 92% | ||
| Power Factor: | >0.98 | ||
| Beam Angle: | Type I/ Type II/ Type III/ Type IV | ||
| Diffuser: | PMMA Lens | ||
| IP grade: | IP66 | ||
| Operate Temperature: | -20℃~+50℃ | ||
| Storage Temperature: | -20℃~+50℃ | ||
| Color Rendering Index: | >80 | ||
| Life Span: | 50000 hrs | ||
| Housing Color: | Grey/Black/White/So on | ||
| Luminance decrease: | Keep lighting 1000hours decrease 1% | ||
| Shape: | Rectangle | ||
| Material: | Aluminum + PMMA Lens | ||
| Application: | urban trunk roads, residential roads and sidewalk lighting, bridge, high way,etc. | ||
| Product Code | ZHSL-19-30 | ZHSL-19-50 | ZHSL-19-80 | ZHSL-19-150 | |
| Input Wattage | 30W | 50W | 80 W | 150W | |
| Color Temperature | 3000-6500K | 3000/4000/6500 | 3000/4000/6500 | 3000/4000/6500 | |
| Luminous Flux | 3300-3750 lm | 5500-6250 lm | 9200-10400 lm | 16500-19500 lm | |
| Input Voltage | AC90-305V | AC 90-305 V | AC 90-305 V | AC 90-305 V | |
| Frequency Range | 50/60Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | |
| color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | |
| Temperature of Working Condition | -40-50℃ | -40--50℃ | -40--50℃ | -40--50℃ | |
| Humidity of Working Condition | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH | |
| LED Lifetime | 50000h | 50000 h | 50000 h | 50000 h | |
| Protectin Grade | IP66 | IP 66 | IP 66 | IP 66 | |
| Installation Pipe Diameter | φ60mm | φ60 mm | φ60 mm | φ70 mm | |
| Installation Height | 4-6m | 4-6 m | 5-8 m | 10-12 m | |
| Net Weight | 3 kgs | 3.5 kgs | 5 kgs | 6.4 kgs | |
| Gross Weight | 3.5 kgs | 4 kgs | 6 kgs | 7.4 kgs | |
| Packing Size | 51*23.6*15 cm | 63*28*15.5 cm | 67*31*16 cm | 82.5834*16 cm | |
Applications:
Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.
Why choose us
1.Die-casting Man has more than 21 years experience in manufactuering the outdoor lighting.
2.We have our own die-casting machine,CNC machine,spray line,assembling line.In this way,will be easy to control the quality.
3.And we also have our own tooling shop and develop department,can help customer develop their own products.
FAQ
Q1. What is your sample policy?
A: We are glad to send ip65 led light samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.
Q2. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3: How to confirm the quality with us before starting to produce?
1) We can provide ip65 led light samples and you can choose one or more, and then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.
Q4: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.
