Product Details:
Payment & Shipping Terms:
|
| Item: | SL-09-50 | Material: | Aluminium |
|---|---|---|---|
| Wattage: | 60W | LED Lifetime: | 5000h |
| Protection Grade: | IP66 | Pole Size: | 50-60mm |
| Colour: | Black And Grey | Product Size: | 485*230*98mm |
| High Light: | ac305V Street Fixtures,IK08 Street Fixtures,ip66 Street Fixtures |
||

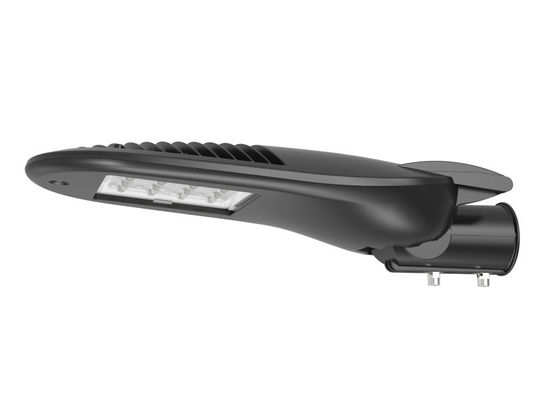

AC90-305V LED Street Light Housing Fixtures IP66 IK08 50w casting aluminum
Product Description
* The luminaire is manufactured from high pressure die-casting aluminum
* ZHSL-09 family is a high-performance street light available in 4 sizes
* ZHSL-09-50 is the middle one
* Product Size:485*230*98mm
* Item No.:SL-09-50
* Installation Pipe Diameter:∅60mm
* NW/GW:4.0/4.5kgs
* Packing Size:56*25*21cm
Product Specification
| Product Code | ZHSL-09-30 | ZHSL-09-50 | ZHSL-09-100 | ZHSL-09-150 |
| Input Wattage | 40W | 60W | 100W | 180W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 4200-4800lm | 6600-7500lm | 11000-12500lm | 19800-22500lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ50-60mm | Φ50-60mm | Φ50-60mm | Φ60-70mm |
| Installation Height | 3-6m | 4-8m | 8-12m | 10-14m |
| Net Weight | 2.7kgs | 4.0kgs | 6.5kgs | 12.8kgs |
| Gross Weight | 3.0kgs | 4.5kgs | 7.0kgs | 13.2kgs |
| Packing Size(mm) | 490*250*210 | 560*250*210 | 675*315*155 | 895*400*175 |
| Product Size(mm) | 455*180*95 | 530*230*105 | 736*292*112 | 846*367*134 |
Line Drawing
Photos
Equipment
Exihibition
Company profile
* A professional origin die casting manufacturer of led outdoor light.
* 10000+ square meter plant, 120 employees, located in China Ninghai Mould City
* Full facilities of outdoor lighting testing for IP/ IK/ Salt Spray / Thermal / IES files, etc.
* 6 elite designers & engineers, developing 8-12 new styles every year.
.
* CE, RoHS, TUV certificates.
* ODM and OEM service are both available to customers domestic and overseas.
FAQ
Q1: How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.
Q2. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards.
