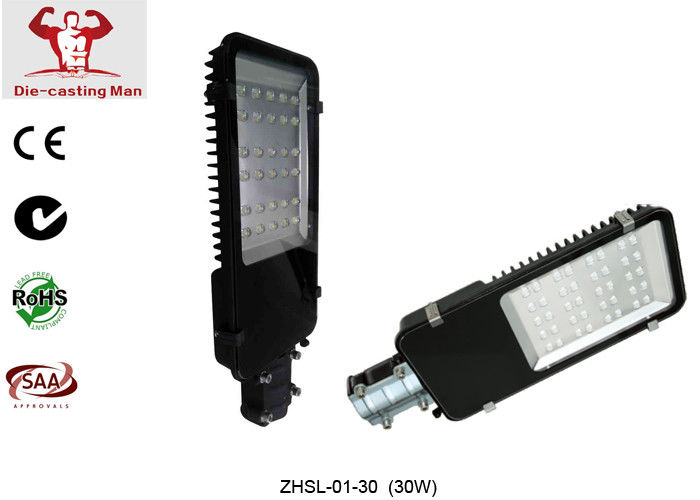

High Efficient SMD IP65 Aluminum LED Street Light Fixtures with CE , ROHS Approved

High Efficient SMD IP65 Aluminum LED Street Light Fixtures with CE , ROHS Approved
High Efficient SMD IP65 Aluminum LED Street Light Fixtures with CE , ROHS Approved High Efficient SMD IP65 Aluminum LED Street Light Fixtures with CE , ROHS Approved

Large Image :  High Efficient SMD IP65 Aluminum LED Street Light Fixtures with CE , ROHS Approved

Product Details:
Place of Origin: China
Brand Name: Die Casting Man/OEM
Certification: CE,ROHS, UL,SAA
Model Number: ZHSL-01-30(30W)
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union
Supply Ability: 10000PCS/Month.
Detailed Product Description
Manufacturer: Ninghai Zhouhua Die Casting Co.,Ltd Material: ADC12 Aluminum
Wattage: 30W Fixture Color: Black
IP: 65 LED Color: WW/NW/CW
CRI: >70 Input Voltage: AC85 - 265V
Frequency Range: 50 - 60Hz Working Ambient Humidity: 10% - 90%
Working Ambient Temperature: -30℃ - 50℃
High Light:

street light housing

,

led street light enclosure

 SMD 30W LED Led Street Light Fixtures with tempering glass Diffuser 85-265VAC



Quick Detail:



Name

30W SMD Led Steet light

Application

Use for Street

Color

Grey,black,White

Feature

New Design

Lamp Luminous Flux(lm)

11260

Certificate

TUV/UL /CE/ROHS



Description:

New Patent 30W SMD LED streetlight made of High quality Die Casting Aluminum housing +Cree LED +UL LED Driver



1. The latest version of high power SMD LED Street Light Housing



2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat management system,which can hold maximum 30pcs of 1W Creee SMD led.



3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.



4. IP65 protection grade.



5. User-friendly mechanical  designing,easy to assemble the led,potic lense and led power supply.



6.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.





Applications:



minor roads,Motorways,Major roads,roundabouts,crossing and industrial areas.





Specifications



Model Number

ZHSL-01-30

Electrical Specifications

LED QTY

 1Wx30PCS

TotaLPower consumption

30W

Operation Voltage

85-265VAC or 12VDC or 24VDC

Operating Humidity

10%~90%

Working Temperature

-30 ~ 50°C

Power Fact(PF)

>0.95

Driver Efficiency

> 0.9

Photometric Specifications

LED Luminous Flux

12240 lm - Initial



11260 lm - Maintain

Led Luminous Efficiency

>90LM/W

CRI

Ra ≥ 70

LED Color

3000k-6500k

Mechanical Specifications

IP Rating

IP65

Warranty

3Years

Heat Radiator

die-casting body as heat sink

Lens

tempering glass

Fixture Dimension

495x205x55MM

Fixture Weight

3.4kgs(7.5lbs)



Packing Information

Packing Type

2unit /ctn

Packing Dimension

54 x18.5 x26 cm (21.2” x7.3” x10.2”)

Packing Weight

7.4kgs(16.3lbs)

Our service:



your inquiries will be replied in 24 hours in our working days.

  • 3years warranty under normal use.
  • Professional design provided.
  • Timely delivery guaranteed.
