Product Details:
Payment & Shipping Terms:
|
| Power: | 20W 30W | Color: | Gray, Black, Silver |
|---|---|---|---|
| Input Voltage: | AC90～305V | Color Rendering Index: | Ra≥70 |
| Installation Pipe Diameter: | φ45/60mm | Driver: | 3-5 Years Warranty |
| High Light: | 305V LED Street Light Fixtures,LED Street Outdoor Light Fixtures 20W,Casting Aluminum Led Street Light Frame |
||

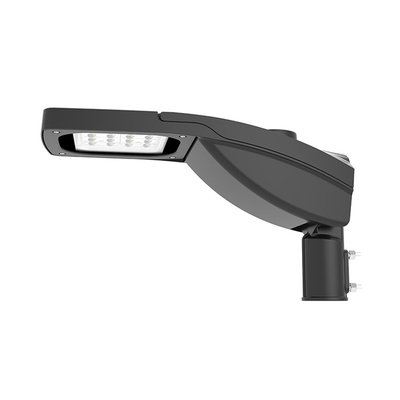

LED Street Light YASL-18-30M
lnstalling Ways:
Both Horizontal and Vertical available and adjustable angle-10°to+10°
 |
|
| 90 degree installation | Fron |
|
|
| Back | Side |
Product Specification
| Product Code | YASL-18-30M | ||||||
| Input Wattage | 50W | ||||||
| Color Temperature | 2700～6500K | ||||||
| Luminous Flux | 6500-7250lm | ||||||
| Input Voltage | AC90～305V | ||||||
| Frequency Range | 50/60Hz | ||||||
| Power Factor | PF≥0.95 | ||||||
| color rendering index | Ra≥70 | ||||||
| Temperature of Working Condition | -40～50℃ | ||||||
| Humidity of Working Condition | 20%～90%RH | ||||||
| LED Lifetime | 50000h | ||||||
| Protectin Grade | IP66 | ||||||
| Protection level | IK08/09/10 | ||||||
| Installation Pipe Diameter | φ45/60mm | ||||||
| Installation Height | 4-8m | ||||||
| Net Weight | 3.0kgs | ||||||
| Gross Weight | 3.5kgs | ||||||
| Packing Size(m m) | 620*245*185 | ||||||
| Input voltage | AC 100V-240V | ||
| Freqency range | 50HZ-60HZ | ||
| Power factor | ＞0.95 | ||
| Chip brand | Multiple chip brand choices | ||
| Power brand | Multiple power brand choices | ||
| LED quantity | 80W | 12H1 | 108PCS |
| 100W | 16H1 | 144PCS | |
| 120W | 12H1 | 192PCS | |
| 150W | 12H1 | 192PCS | |
| 200W | 16H1 | 256pcs | |
| System light effect | 120-130 lm/W | ||
| Power efficiency | >90% | ||
| Color temperature | 2700-6500K | ||
| Color rendering index | Ra≥70 | ||
| Light distribution | Symmetry light distribution | ||
| Light design | Lens light distribution | ||
| LED Junction temperature | ≤ 90℃ | ||
| Working temperature | -30℃ — +50℃ | ||
| Storage temperature | -30℃ — +50℃ | ||
| IP Grade | IP65 | ||
| Working life-span | ＞50,000H | ||
| Power connection line | Brown | L | |
| Blue | N | ||
| Yellow/Green | G | ||
| Color of lamp shell | DOUBLE GRAY /Black / Silver | ||
| Beam angle | TYPE Ⅰ,Ⅱ,Ⅲ,Ⅳ,Ⅴ | ||
LED Street Light YASL-18M
Product Description
This series is a high-performance street lighting available in three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
lt shall have a led efficiency up to 130 lm/w and will be capable of producing.
up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
IP66 CE ROHS
|
|
|
|
Photometric
| DH-T1 | DH-T3-M | DH-T4-M | DY-T3-M | GY-T2-M01 | GX-T2-M | GX-T4-L | HX-T2-S | ||||||||
| DH-T2-L | DH-T3-MA | DH-T5-M | GY-T1-M | GY-T3-M01 | GX-T3-M | HY-T2-M | HX-T2-M | ||||||||
| DH-T2-M | DH-T3-MB | DY-T2-M | GY-T2-M | GX-T2-S | GX-T4-M | HY-T3-M | HX-T3-M |
Product Size
| Product Code | YASL-18-30M | ||||||
| L(mm) | 515 | ||||||
| W(mm) | 182 | ||||||
| H(mm) | 159 | ||||||
