| Model: | SL-25 Series | Power: | 80w 100w |
|---|---|---|---|
| Installation Pipe Diameter: | 60mm | CCT: | 2700K |
| Dimming: | Smart Control Management System | Driver: | Osram |
| High Light: | Smart Street Lighting Management System 100W,16500lm Smart Street Lighting System,Adjustable Angle Outdoor Led Street Lights |
||
Die Cast Parts YASL-25-100M
1.Die Cast Parts Introduction
This Die Cast Parts was the latest invention and high quality with TUV CE ENEC CB IP66 and offer 5 years Warranty.
It was made up with Die Casting Aluminium and Tempered glass.
We devoted ourselves to the lighting industry many years, covering most of Europe, Middle East, Asia and Africa Market. We are expecting become your long-term partner in china.

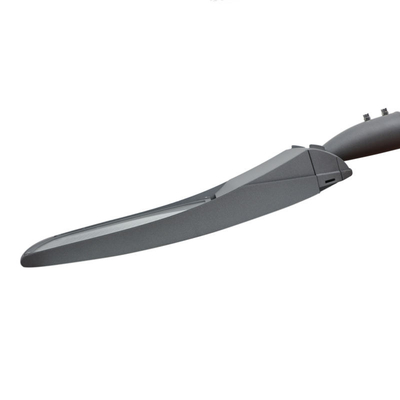

LED Street Light YASL-25M
lnstalling Ways:
Both Horizontal and Vertical available and adjustable angle -15° to +15°
 |
|
| 90 degree installation | Front |
|
|
| Back | Side |
2.Die Cast Parts Specification
| Product Code | YASL-25-100M | YASL-25-100M | YASL-25-150M | YASL-25-150M | YASL-25-240M | YASL-25-240M |
| Input Wattage | 50W 60W | 100W | 120W | 150W | 200W | 240W |
| Installation Pipe Diameter | φ45/60mm | φ45/60/76mm | ||||
| Luminous Flux | 7800-9000lm | 13000-15000lm | 15600-18000lm | 19500-22500lm | 26000-30000lm | 31200-36000lm |
| Color Temperature | 2700K 3000K 4000K 5000K 5700K 6500K | |||||
| Input Voltage | AC90～305V | |||||
| Frequency Range | 50/60Hz | |||||
| Power Factor | PF≥0.95 | |||||
| color rendering index | Ra≥70 | |||||
| Temperature of Working Condition | -40～50℃ | |||||
| Humidity of Working Condition | 20%～90%RH | |||||
| LED Lifetime | 50000h | |||||
| Protectin Grade | IP66 | |||||
| Protection level | IK08 IK09 IK10 | |||||
| Installation Height | 4-8m | 6-10m | 8-12m | 8-12m | 10-14m | 10-14m |
| Net Weight | 3.8kgs | 3.8kgs | 5.7kgs | 5.7kgs | 7.2kgs | 7.2kgs |
| Gross Weight | 4.0kgs | 4.0kgs | 6.0kgs | 6.0kgs | 7.5kgs | 7.5kgs |
| Packing Size(m m) | 680*270*160 | 680*270*160 | 820*320*160 | 820*320*160 | 920*370*180 | 920*370*180 |
3.LED Street Light YASL-25M Product Description
This series is a high-performance street lighting available in three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
lt shall have a led efficiency up to 130 lm/w and will be capable of producing.
Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
IP66 CE ROHS
|
|
Photometric
| DH-T1 | DH-T3-M | DH-T4-M | DY-T3-M | GY-T2-M01 | GX-T2-M | GX-T4-L | HX-T2-S |
| DH-T2-L | DH-T3-MA | DH-T5-M | GY-T1-M | GY-T3-M01 | GX-T3-M | HY-T2-M | HX-T2-M |
| DH-T2-M | DH-T3-MB | DY-T2-M | GY-T2-M | GX-T2-S | GX-T4-M | HY-T3-M | HX-T3-M |
Product Size
| Product Code | YASL-25-100 | YASL-25-150 | YASL-25-240 |
| L(mm) | 645 | 790 | 890 |
| W(mm) | 257 | 305 | 361 |
| H(mm) | 147 | 147 | 163 |
Color Temperature:3000-6500K
Lumen: 4200LM (140LM/W)
Input Voltage: AC90-305V 50/60Hz
Power Factor: PF≥0.95
Color Rendering Index: Ra≥70
Temperature of Working Condition:-40-50°C
Protection Grade:IP66
4.Die Cast Parts Feature And Application
LED Street Lighitng are used in main roads, streets, schools, gardens, factories, courtyards and so on.
