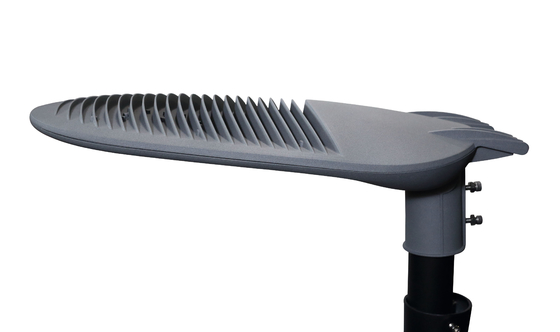

Outdoor Led Smart Street Light Control System Public Lighting Module 48W

Outdoor Led Smart Street Light Control System Public Lighting Module 48W
Outdoor Led Smart Street Light Control System Public Lighting Module 48W
video play

Large Image :  Outdoor Led Smart Street Light Control System Public Lighting Module 48W

Product Details:
Place of Origin: China
Brand Name: Die casting man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-09-50
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: foam filing/pc
Delivery Time: 35days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000PCS/Month.
Detailed Product Description
Input Wattage: 50~60W Efficiency: >140lm/w
Voltage: AC90-305V IP: 66
Package: 1pcs/carton Packing Details: With Strofoam Package
Standards & Certifications: CE ENEC Color: Grey/Black ( Other Upon Request)
Temperature Of Working Condition: -40℃~50℃ Ra: ≥70
High Light:

Outdoor Led Smart Street Light 48W

,

Die Cast Aluminum Smart Street Light

,

Public Outdoor Lamp Module

smart street light control system led street light module public lighting philips led 48W outdoor lamp



Outdoor Led Smart Street Light Control System Public Lighting Module 48W 0

Outdoor Led Smart Street Light Control System Public Lighting Module 48W 1



Products Description

Product Datasheet
Item No. YASL-09-50
Power 50W
Lumen Efficiency 140lm/w
Lumen 7000lm
Product Size (mm) 560x250x210mm
Electrical Data
Working Voltage AC100-265V 50/60Hz
LED: Lumileds / Epistar / SANAN
CCT 3000K, 4000K, 5000K ,6000K
CRI Ra>70 (standard)/ Ra>80
Driver local
THD <15%
Power Factor(PF) PF>0.9
IP Rating IP66
IK Rating 1K09
Holder 50mm/B60mm (standard)
Body Material Hign pressure die-cast aluminum
Housing Calor Dark Grey/Black/Light Grey (availabel on request)
Cover Material UV-resistant Polycarbonate
Working Environment -20 ~+50 , 10%~90%RH
Lifespan L70 at 25 > 50,000hrs
Mounting Type Side entry or Vertical pole mounted ±15°
Dimmable 1-10V Dimming /Timer Dimming
Protecdion Class Class I (standard) / Class
Standards CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09
Available on request NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming
Reasonable tolerance Watt: ±10%,CCT:±500K, Lumen efficiency: ±5%



Material: Hign pressure die-cast aluminum Wattage: 40~60W
IP: 66 CRI: ≥70
Color Temperature: 3000/40000/6500K Input Voltage: AC90 - 265V
Frequency Range: 50 - 60Hz Working Ambient Temperature: -40℃ - 50℃
Working Ambient Humidity: 20% - 90%RH LED Lifetime: 50000h

First of all, please allow me to introduce our company Ningbo die-casting man to you:
Die-casting Man is one of the lighting manufacturers with design ,development and production. We understand that lighting technology has to be practical,so we always design and develop with our customers needs in mind.
Outdoor Led Smart Street Light Control System Public Lighting Module 48W 2
Exhibition
Outdoor Led Smart Street Light Control System Public Lighting Module 48W 3


Is there anything else you want to know about this lamp?



1. Q:What is the waterproof rating?

A: It’s can pass IP66

2. Q:How many years of warranty do you promise?

A: We guarantee the housing for 5 years.for the whole lamp,The warranty of electrical parts is depends on the warranty time of different driver brand.

3. Q:What is the grade of your powder coating?

A: Normal is C2 grade,but If the customer has special request,such as used at the seaside,in this case,we can use phosphating with Akzo powder to reach higher levels,like C3,C4.

4. Q:What's the packing you use?

A: Our packing is PE bags with foam and carton box,we will ensure it safe.

5. Q:What is your usual lead time?

A: 25 days for regular products, 10 days extra for special requirements.

6. Q:Do you sell only whole lamps?Or I can just buy the empty housing?

A: It’s up to you,we can also sell empty housing,even you just by the die-casting housing without powder coating is also no problem.

7. Q:What brand of driver do you use?

A: The brand we usually use is Inventronics,Sosen these China local brand,and PHILIPS,MEANWELL these international brand,Customers can also specify brands,it’s no problem.

8. Q:About the powder coating,i have a question,What colors do you usually use?Can we customize the color?

A: The colors we usually use are black and gray,you can also customize other color,just tell us the RAL number,we will according the RAL number to do the powder coating.

9. Q:Ok,that’s good,So if I want to specify a color,will you charge extra cost?

A: will not,but we will require MOQ500 pcs.

10. Q:ok,last question,Do you accept OEM?

A: Of course we can,we have own die-casting machine and mould design team,must be able to meet your requirements,and we already have a lot of OEM customers.
