CB ENEC CE ROHS Certification LED Road Light Fixture Power Reduction System

Large Image : CB ENEC CE ROHS Certification LED Road Light Fixture Power Reduction System

Product Details:

Place of Origin:	CHINA
Brand Name:	Die Casting Man/OEM
Certification:	CE, RoHs, ENEC, CB
Model Number:	SL-14-80

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiation
Packaging Details:	styrofoam with carton box
Delivery Time:	30-40days
Payment Terms:	T/T, L/C
Supply Ability:	10000PCS/Month.

Contact Now

Detailed Product Description

Wattage:	80W 100w	Product Size:	738x289x118mm
Body Color:	Gray, White, Black	LED Lifetime:	50000h
Installation Diameter:	60mm	Warranty:	5years
Highlight:	ROHS Led Road Light Fixture , 100w LED Road Light Fixtures , Die Casting Aluminum Led Light Fixture

Product Description:

Product Code	YASL-14-40	YASL-14-80	YASL-14-120
Input Wattage	40W	80W	150W
Color Temperature	3000-6500K	3000-6500K	3000-6500K
Luminous Flux	4400-5000lm	9200-10400lm	16500-18750lm
Input Voltage	AC90-305V	AC90-305V	AC90-305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95
color rendering index	Ra≥70	Ra≥70	Ra≥70
Temperature of Working Condition	-40-50℃	-40-50℃	-40-50℃
Humidity of Working Condition	20%-90%RH	20%-90%RH	20%-90%RH
LED Lifetime	50000h	50000h	50000h
Protection Grade	IP66	IP66	IP66
Installation Pipe Diameter	⌀60mm	⌀60mm	⌀70mm
Installation Height	4-7m	6-10m	8-12m
Net Weight	4.6kg	6.0kg	9.8kg
Gross Weight	5.0kg	6.5kg	10.6kg
Packing Size(mm)	660×315×185	770×315×185	800×290×400

MAJOR BENEFITS:

Long life in the harshest weather conditions

Optimal system performance

Modular design (replaceable)

Easy maintenance without screws and tools

Energy optimization and best price commensurate with performance

Rotor (steering part) for horizontal and vertical adjustment of lights

Multiple lenses to facilitate better vision and lighting on different roads


FUNCTIONAL SPECIFICATIONS:

Replacement and upgrade of lamp parts without the need for tools

Protection against excessive heat

Power Reduction System

Optical flux control (lumen) depending on the time

Constant light flux (lumen)

Detail picture:

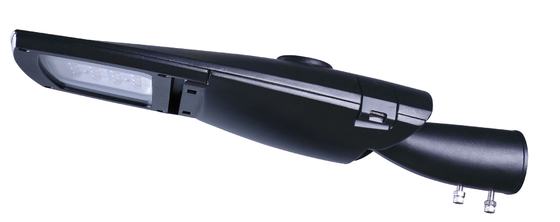

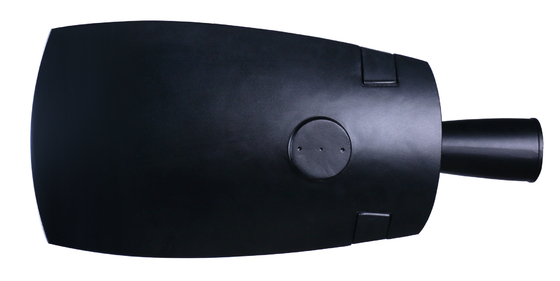

CB ENEC CE ROHS Certification LED Road Light Fixture Power Reduction System 1

CB ENEC CE ROHS Certification LED Road Light Fixture Power Reduction System 2

CB ENEC CE ROHS Certification LED Road Light Fixture Power Reduction System 3

Package:

Lighting distribution
