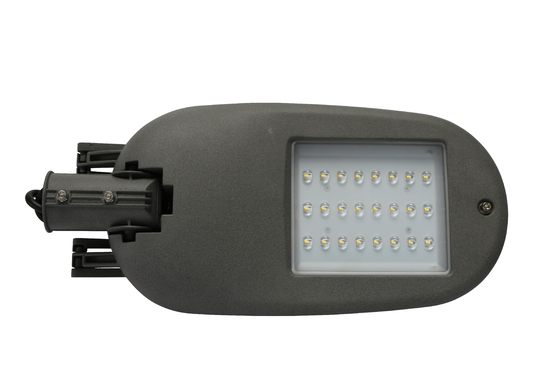

Fashion Gray / Black / Silver IP66 40W LED Street Light Fixtures 485 X 230 X 98mm

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

Fashion Gray / Black / Silver IP66 40W LED Street Light Fixtures 485 X 230 X 98mm

Fashion Gray / Black / Silver IP66 40W LED Street Light Fixtures 485 X 230 X 98mm
Fashion Gray / Black / Silver IP66 40W LED Street Light Fixtures 485 X 230 X 98mm Fashion Gray / Black / Silver IP66 40W LED Street Light Fixtures 485 X 230 X 98mm Fashion Gray / Black / Silver IP66 40W LED Street Light Fixtures 485 X 230 X 98mm Fashion Gray / Black / Silver IP66 40W LED Street Light Fixtures 485 X 230 X 98mm Fashion Gray / Black / Silver IP66 40W LED Street Light Fixtures 485 X 230 X 98mm

Large Image :  Fashion Gray / Black / Silver IP66 40W LED Street Light Fixtures 485 X 230 X 98mm

Product Details:
Place of Origin: China
Brand Name: Die casting man/OEM
Certification: TUV/CE/ROHS
Model Number: ZHSL-09-50
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: carton box with foam
Delivery Time: 7-35days according to order quantity
Payment Terms: T/T.L/C
Supply Ability: 10000PCS PER MONTH
Detailed Product Description
Material: Die Casting Aluminium Color: Gray/black/silver
Input Wattage: 40w 50w 60w Working Temperature: -40—50℃
Working Humidity: 20%-90%RH Protection Grade: IP66
High Light:

IP66 LED Street Light Fixtures

,

40W Street Lamp Fixtures

,

Aluminium LED Street Light Fixtures

High quality LED street light with 4 size from 30w to 200w





Specification:



LED Chip Quantity 16pcs 48pcs 50pcs
Rated Power 50W 100W 150W
Color Temperature 2700-6500K 2700-6500K 2700-6500K
Initial Luminous Flux 5000LM 10000LM 15000LM
Input Voltage AC100-240V AC100-240V AC100-240V
Frequency Range 50-60Hz 50-60Hz 50-60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
Color Rendering Index Ra>70 Ra>70 Ra>70
Temperature Working Condition -40℃ - 50℃ -40℃ - 50℃ -40℃ - 50℃
Humidity of Working Condition 20-90% 20-90% 20-90%
LED Lifetime 50000h 50000h 50000h
Protection Grade IP65 IP65 IP65
Installation Pipe Diameter 50mm & 60mm 60mm 60mm
Installation Height 8-10m 8-10m 8-10m
Product Dimension 485*230*98mm 622*292*112mm 853*376*137mm
Net Weight 3.5 kgs 5.4 kgs 12.5 kgs
Gross Weight 4.3 kgs 6.2 kgs 13.5 kgs
Packing Size 52 *25 * 21 cm 67.5*31.5 *15.5 cm 89*39*17cm



Detail Picture:



Fashion Gray / Black / Silver IP66 40W LED Street Light Fixtures 485 X 230 X 98mm 0



Fashion Gray / Black / Silver IP66 40W LED Street Light Fixtures 485 X 230 X 98mm 1

Fashion Gray / Black / Silver IP66 40W LED Street Light Fixtures 485 X 230 X 98mm 2



Fashion Gray / Black / Silver IP66 40W LED Street Light Fixtures 485 X 230 X 98mm 3



FQA



Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the of B/L.For long term business relations, we have more advantage terms for payment.

Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.

Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.

Q4: How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.

Q5. What is your sample policy?
A: We are glad to send ip65 led light samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.

Q6. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7: How to confirm the quality with us before starting to produce?
1) We can provide ip65 led light samples and you can choose one or more, and then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.

Q8: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.

Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.

Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards.
