Module Street Light SL-26 High Lumens Outdoor Lighting Waterproof 100W LED Die Casting Aluminium Street Light Fixtures

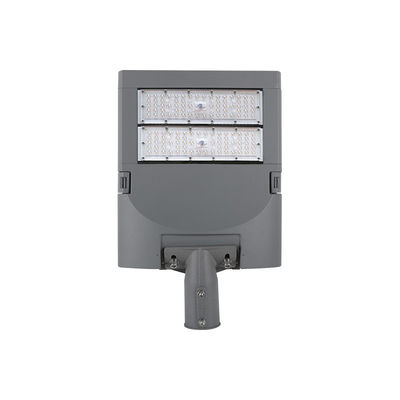

Large Image : Module Street Light SL-26 High Lumens Outdoor Lighting Waterproof 100W LED Die Casting Aluminium Street Light Fixtures

Product Details:

Place of Origin:	CHINA
Brand Name:	Die-casting Man
Certification:	CE, RoHs, ENEC, CB
Model Number:	YASL-26-100

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	1pc/bag/foam/carton, pallet optional
Delivery Time:	7-10 days based on order QTY
Payment Terms:	T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability:	30000pcs/month

Contact Now

Detailed Product Description

Power:	80-120W	Optical Effect:	130~180 Lm/w(Optional)
Material:	Die Casting Aluminium	Power Factor:	PF≥0.95
Protectin Grade:	IP66	Protection Level:	IK08/09/10
Color Rendering Index:	Ra≥70	Size:	510x370x150 Mm
Gross Weight:	4.7kgs	Net Weight:	4.1kgs
Highlight:	Waterproof Street Light Fixtures , Outdoor Lighting Street Light Fixtures

Module Street Light SL-26

Products Description

Model	Installation Pipe Diameter	Product Size(mm)
		L	W	H
YSSL-26-50	Φ60	449	360	152
YSSL-26-100	Φ60	529	360	152
YSSL-26-150	Φ60	609	360	152
YSSL-26-200	Φ60	689	360	152
YSSL-26-250	Φ60	769	360	152
YSSL-26-300	Φ60	849	360	152

Materials	Housing:ADC12;Cover:Toughened Glass；Screws:304stainless screws
Color	Other colors can be customized according to the international color card
Led brand	LUMILEDS,OSRAM,CREE option
Led Specifications	3030,5050 option
Optical effect	130～140 lm/w,140～150 lm/w,150～160 lm/w,160～170 lm/w,170～180 lm/w,170～180 lm/w option
Color Temperature	2700K,3000K,3500K,4000K,5000K,5700K,6500K option(Reference:Energy Star)
color rendering index	Ra≥70；Ra≥80；Ra≥90 option
Optics	TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV option
Driver bran	OSRAM/TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS
Input Voltage	AC90～305V
Security level	ClassI/ClassII/Class1/Class2 option
Frequency Range	43～63Hz
Power Factor	PF≥0.95
Working conditions Range	-30 to 45℃,20% to 90%RH
Dimming mode	Time control/0-10V/ Opticalcontrol/DALI option
Lightning protection	10KV/15KV/20KV option
Warranty	5/8 year option
Protection	Overcurrent/Short circuit/Over temperature
Protection level	IP66;IK08/09/10
Certifications	ENEC;CE;CB;IEC;RoHs;TUV;Lightning protection;LM-79;LM-80;IP66

Installing Ways: Both Horizontal and Vertical available and adjustable angle-15°to 15°

Material:Die casting Aluminum body

Advantages

Standard modular street lamps Optional Glass Module and PC lens module Adjustable Mounting Direction and angle ± 15 ° Tool-free
detachable construction Top ventilation dust-proof net design Optical effect:130～190 lm/W Optional horizontal installation
