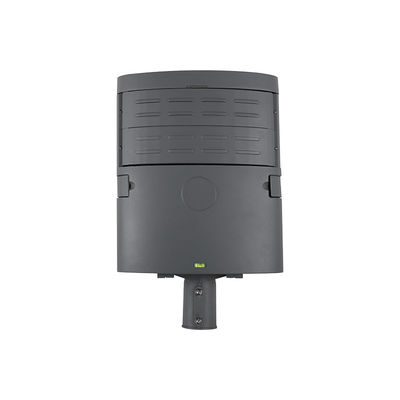

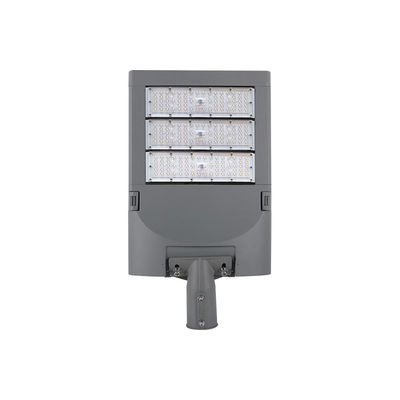

Module Street Light highway outdoor ip66 smd chip aluminum 180w die casting aluminium outside led street lighting

Module Street Light highway outdoor ip66 smd chip aluminum 180w die casting aluminium outside led street lighting
Module Street Light highway outdoor ip66 smd chip aluminum 180w die casting aluminium outside led street lighting
video play

Large Image :  Module Street Light highway outdoor ip66 smd chip aluminum 180w die casting aluminium outside led street lighting

Product Details:
Place of Origin: CHINA
Brand Name: Die-casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-26-150
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Material: Die Casting Aluminium Power Factor: PF≥0.95
Optical Effect: 130~180 Lm/w(Optional) Power: 120-180W
Color Rendering Index: Ra≥70 Protection Level: IK08/09/10
Protectin Grade: IP66 Size: 620x370x150 Mm
Net Weight: 4.7kgs Gross Weight: 5.3kgs

Module Street Light SL-26

Products Description
Model
Installation Pipe Diameter
Product Size(mm)


L
W
H
YSSL-26-50
Φ60
449
360
152
YSSL-26-100
Φ60
529
360
152
YSSL-26-150
Φ60
609
360
152
YSSL-26-200
Φ60
689
360
152
YSSL-26-250
Φ60
769
360
152
YSSL-26-300
Φ60
849
360
152
Materials
Housing:ADC12;Cover:Toughened Glass；Screws:304stainless screws
Color
Other colors can be customized according to the international color card
Led brand
LUMILEDS,OSRAM,CREE option
Led Specifications
3030,5050 option
Optical effect
130～140 lm/w,140～150 lm/w,150～160 lm/w,160～170 lm/w,170～180 lm/w,170～180 lm/w option
Color Temperature
2700K,3000K,3500K,4000K,5000K,5700K,6500K option(Reference:Energy Star)
color rendering index
Ra≥70；Ra≥80；Ra≥90 option
Optics
TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV option
Driver bran
OSRAM/TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS
Input Voltage
AC90～305V
Security level
ClassI/ClassII/Class1/Class2 option
Frequency Range
43～63Hz
Power Factor
PF≥0.95
Working conditions Range
-30 to 45℃,20% to 90%RH
Dimming mode
Time control/0-10V/ Opticalcontrol/DALI option
Lightning protection
10KV/15KV/20KV option
Warranty
5/8 year option
Protection
Overcurrent/Short circuit/Over temperature
Protection level
IP66;IK08/09/10
Certifications
ENEC;CE;CB;IEC;RoHs;TUV;Lightning protection;LM-79;LM-80;IP66
Module Led Street Light Fixtures Waterproof Solar IP66 IK09 0



Installing Ways: Both Horizontal and Vertical available and adjustable angle-15°to 15°
Module Led Street Light Fixtures Waterproof Solar IP66 IK09 1



Material:Die casting Aluminum body

Module Led Street Light Fixtures Waterproof Solar IP66 IK09 2




Advantages
Standard modular street lamps Optional Glass Module and PC lens module Adjustable Mounting Direction and angle ± 15 ° Tool-free
detachable construction Top ventilation dust-proof net design Optical effect:130～190 lm/W Optional horizontal installation
