NingBo Die-Casting Man Technology Co.,ltd.
Home ProductsLED Street Light Fixtures

Best selling highway outdoor waterproof ip66 mould smd chip die casting aluminum 200w 300w outside led street ligh

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

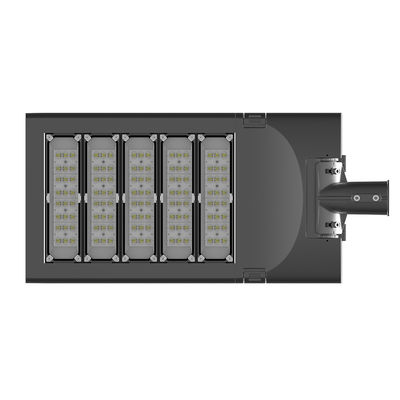

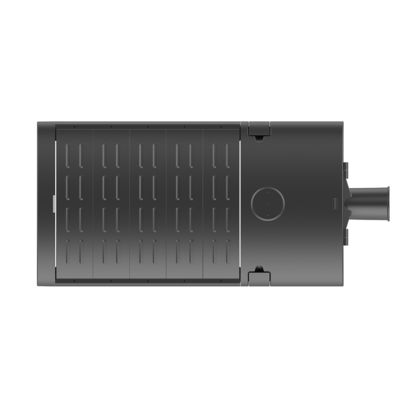

Best selling highway outdoor waterproof ip66 mould smd chip die casting aluminum 200w 300w outside led street ligh

Best selling highway outdoor waterproof ip66 mould smd chip die casting aluminum 200w 300w outside led street ligh
Best selling highway outdoor waterproof ip66 mould smd chip die casting aluminum 200w 300w outside led street ligh
video play

Large Image :  Best selling highway outdoor waterproof ip66 mould smd chip die casting aluminum 200w 300w outside led street ligh

Product Details:
Place of Origin: CHINA
Brand Name: Die-casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-26-250
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Detailed Product Description
Material: Die Casting Aluminium Power: 200-300W
Optical Effect: 130~180 Lm/w(Optional) Protectin Grade: IP66
Power Factor: PF≥0.95 Protection Level: IK08/09/10
Color Rendering Index: Ra≥70 Size: 700x370x150 Mm
Gross Weight: 6.6kgs Net Weight: 5.9kgs

Module Street Light SL-26

Products Description
Model
Installation Pipe Diameter
Product Size(mm)


L
W
H
YSSL-26-50
Φ60
449
360
152
YSSL-26-100
Φ60
529
360
152
YSSL-26-150
Φ60
609
360
152
YSSL-26-200
Φ60
689
360
152
YSSL-26-250
Φ60
769
360
152
YSSL-26-300
Φ60
849
360
152
Materials
Housing:ADC12;Cover:Toughened Glass;Screws:304stainless screws
Color
Other colors can be customized according to the international color card
Led brand
LUMILEDS,OSRAM,CREE option
Led Specifications
3030,5050 option
Optical effect
130~140 lm/w,140~150 lm/w,150~160 lm/w,160~170 lm/w,170~180 lm/w,170~180 lm/w option
Color Temperature
2700K,3000K,3500K,4000K,5000K,5700K,6500K option(Reference:Energy Star)
color rendering index
Ra≥70;Ra≥80;Ra≥90 option
Optics
TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV option
Driver bran
OSRAM/TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS
Input Voltage
AC90~305V
Security level
ClassI/ClassII/Class1/Class2 option
Frequency Range
43~63Hz
Power Factor
PF≥0.95
Working conditions Range
-30 to 45℃,20% to 90%RH
Dimming mode
Time control/0-10V/ Opticalcontrol/DALI option
Lightning protection
10KV/15KV/20KV option
Warranty
5/8 year option
Protection
Overcurrent/Short circuit/Over temperature
Protection level
IP66;IK08/09/10
Certifications
ENEC;CE;CB;IEC;RoHs;TUV;Lightning protection;LM-79;LM-80;IP66
Module Led Street Light Fixtures Waterproof Solar IP66 IK09 0



Installing Ways: Both Horizontal and Vertical available and adjustable angle-15°to 15°
Module Led Street Light Fixtures Waterproof Solar IP66 IK09 1



Material:Die casting Aluminum body

Module Led Street Light Fixtures Waterproof Solar IP66 IK09 2




Advantages
Standard modular street lamps Optional Glass Module and PC lens module Adjustable Mounting Direction and angle ± 15 ° Tool-free
detachable construction Top ventilation dust-proof net design Optical effect:130~190 lm/W Optional horizontal installation
