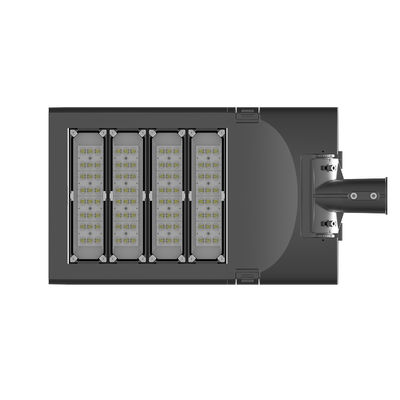

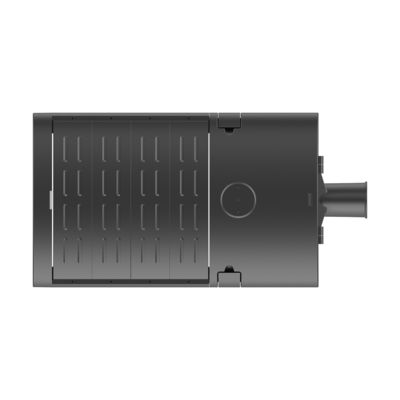

Led Street Light 135LM/W High Lumen 20w 300w For Garden Road Lighting Die Casting Aluminum 90-305V LED Road Light

Led Street Light 135LM/W High Lumen 20w 300w For Garden Road Lighting Die Casting Aluminum 90-305V LED Road Light
Led Street Light 135LM/W High Lumen 20w 300w For Garden Road Lighting Die Casting Aluminum 90-305V LED Road Light
video play

Large Image :  Led Street Light 135LM/W High Lumen 20w 300w For Garden Road Lighting Die Casting Aluminum 90-305V LED Road Light

Product Details:
Place of Origin: CHINA
Brand Name: Die-casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-26-200
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Material: Die Casting Aluminium Power: 160-240W
Optical Effect: 130~180 Lm/w(Optional) Protectin Grade: IP66
Power Factor: PF≥0.95 Protection Level: IK08/09/10
Color Rendering Index: Ra≥70 Size: 700x370x150 Mm
Gross Weight: 5.9kgs Net Weight: 5.3kgs
Highlight:

20w LED Street Light

,

High Lumen LED Street Light

,

Die Casting Aluminum LED Street Light

Module Street Light SL-26

Products Description
Model
Installation Pipe Diameter
Product Size(mm)


L
W
H
YSSL-26-50
Φ60
449
360
152
YSSL-26-100
Φ60
529
360
152
YSSL-26-150
Φ60
609
360
152
YSSL-26-200
Φ60
689
360
152
YSSL-26-250
Φ60
769
360
152
YSSL-26-300
Φ60
849
360
152
Materials
Housing:ADC12;Cover:Toughened Glass；Screws:304stainless screws
Color
Other colors can be customized according to the international color card
Led brand
LUMILEDS,OSRAM,CREE option
Led Specifications
3030,5050 option
Optical effect
130～140 lm/w,140～150 lm/w,150～160 lm/w,160～170 lm/w,170～180 lm/w,170～180 lm/w option
Color Temperature
2700K,3000K,3500K,4000K,5000K,5700K,6500K option(Reference:Energy Star)
color rendering index
Ra≥70；Ra≥80；Ra≥90 option
Optics
TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV option
Driver bran
OSRAM/TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS
Input Voltage
AC90～305V
Security level
ClassI/ClassII/Class1/Class2 option
Frequency Range
43～63Hz
Power Factor
PF≥0.95
Working conditions Range
-30 to 45℃,20% to 90%RH
Dimming mode
Time control/0-10V/ Opticalcontrol/DALI option
Lightning protection
10KV/15KV/20KV option
Warranty
5/8 year option
Protection
Overcurrent/Short circuit/Over temperature
Protection level
IP66;IK08/09/10
Certifications
ENEC;CE;CB;IEC;RoHs;TUV;Lightning protection;LM-79;LM-80;IP66
Module Led Street Light Fixtures Waterproof Solar IP66 IK09 0



Installing Ways: Both Horizontal and Vertical available and adjustable angle-15°to 15°
Module Led Street Light Fixtures Waterproof Solar IP66 IK09 1



Material:Die casting Aluminum body

Module Led Street Light Fixtures Waterproof Solar IP66 IK09 2




Advantages
Standard modular street lamps Optional Glass Module and PC lens module Adjustable Mounting Direction and angle ± 15 ° Tool-free
detachable construction Top ventilation dust-proof net design Optical effect:130～190 lm/W Optional horizontal installation
