IP65 Rated LED Street Light Fixtures With Customized Lifespan 000hrs And Illumination

IP65 Rated LED Street Light Fixtures With Customized Lifespan 000hrs And Illumination
IP65 Rated LED Street Light Fixtures With Customized Lifespan 000hrs And Illumination IP65 Rated LED Street Light Fixtures With Customized Lifespan 000hrs And Illumination

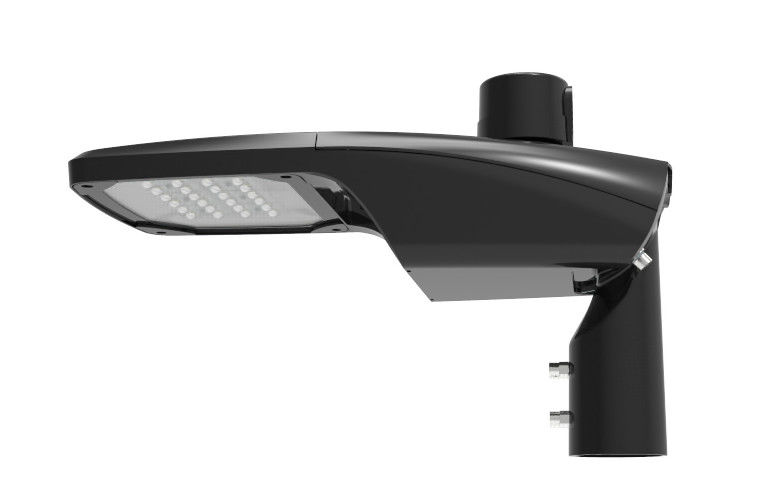

Large Image :  IP65 Rated LED Street Light Fixtures With Customized Lifespan 000hrs And Illumination

Product Details:
Place of Origin: Ningbo, China
Brand Name: Die-casting Man
Certification: CE ROHS ENEC
Model Number: YASL-25
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Detailed Product Description
CRI: >70 Warranty: 3-5 Years
Color: Customized Ral. No. Such As Gray, Black, White Material: Aluminum Alloy
Working Temperature: -40°C-50°C Luminous Flux: 3000lm-20000lm
Lifespan: >50,000hrs Beam Angle: 120°
High Light:

IP65 LED Street Light Fixtures


Customized LED Street Light Fixtures


Customized Lifespan LED Street Light Fixtures

Product Description:

Discover the pinnacle of outdoor illumination with our premium LED street light fixtures, expertly engineered to enhance urban and suburban landscapes. Our state-of-the-art lighting solutions are designed to meet the diverse needs of modern municipalities, townships, and commercial entities seeking reliable, high-performance street lighting. Each fixture is meticulously crafted, offering a seamless blend of form, function, and energy efficiency.

Our LED street light fixtures are equipped with a broad 120° beam angle, ensuring expansive coverage that significantly reduces the number of poles required to achieve optimal lighting. This wide beam distribution is ideal for illuminating streets, roadways, and pedestrian areas, providing uniform light with minimal glare and shadowing. The result is a safer, more inviting environment for residents and visitors alike.

With a powerful luminous flux ranging from 3000lm to an impressive 20000lm, these fixtures are versatile enough to cater to various lighting requirements, from dimly lit alleyways to bustling main avenues. The high-output LEDs guarantee exceptional brightness, making them an excellent choice for enhancing visibility and security throughout the night.

Understanding that every installation is unique, we offer customized dimensions for our LED street light fixtures. This level of customization ensures a perfect fit for any existing infrastructure, as well as the flexibility to adapt to specific design and aesthetic considerations. Whether it's a modern urban center or a charming historic district, our fixtures will complement and elevate the surrounding architecture.

Quality is at the forefront of our design ethos, which is why we stand behind our products with an industry-leading warranty of 3-5 years. This warranty reflects our confidence in the durability and longevity of our fixtures, giving you peace of mind that your investment is protected. Our LED street lights are built to weather the elements, with robust construction that withstands the rigors of outdoor use.

An outstanding power factor of >0.95 underpins the efficiency of our LED street light fixtures. This high power factor indicates reduced power loss and improved energy utilization, leading to lower electricity costs and a reduced carbon footprint. Our fixtures are not only bright and reliable but also an eco-friendly choice that supports sustainability goals.

For enhanced versatility, our LED street lights include an innovative projector lamp module, which allows for precise control over the direction and focus of the light. This module is particularly useful for highlighting architectural features, signage, or specific areas that require targeted illumination. The integration of this projector lamp module into our fixtures offers additional functionality, making them a dynamic solution for modern lighting needs.

To accommodate varying street layouts and ensure the perfect lighting angle, our fixtures come with an adjustable street tilt adapter. This adapter enables precise angling of the light fixture, allowing for custom light distribution that can be tailored to the specific requirements of the installation site. The adjustable street tilt adapter is a testament to the flexibility and adaptability of our LED street light fixtures, ensuring that they deliver optimal performance in any setting.

In summary, our LED street light fixtures are a superior choice for anyone looking to upgrade their outdoor lighting infrastructure. With a broad beam angle, high luminous flux, customizable dimensions, a solid warranty, excellent power factor, a projector lamp module, and an adjustable street tilt adapter, these fixtures are designed to meet the highest standards of efficiency, durability, and versatility. Illuminate your streets with our advanced lighting solutions and experience the difference that quality lighting can make.



  • Product Name: LED Street Light Fixtures
  • Color Temperature: 3000K-6000K
  • Beam Angle: 120°
  • Luminous Flux: 3000lm-20000lm
  • Input Voltage: AC90-305V
  • Dimension: Customized
  • 100 watt street light
  • Housing street light
  • IP66 IK08 street lamp solar

Technical Parameters:

Product Specifications
Product Code YASL-25-100M YASL-25-100M YASL-25-150M YASL-25-150M YASL-25-240M YASL-25-240M
Input Wattage 60W 100W 120W 150W 200W 240W
Installation Pipe Diameter φ45/60mm φ45/60/76mm
Luminous Flux 7800-9000lm 13000-15000lm 15600-18000lm 19500-22500lm 26000-30000lm 31200-36000lm
Color Temperature 2700~6500K
Input Voltage AC90~305V
Frequency Range 50/60Hz
Power Factor PF≥0.95
Color Rendering Index Ra≥70
Temperature of Working Condition -40~50℃
Humidity of Working Condition 20%~90%RH
LED Lifetime 50000h
Protection Grade IP66
Protection Level IK08/09/10
Installation Height 4-8m 6-10m 8-12m 8-12m 10-14m 10-14m
Net Weight 3.8kgs 3.8kgs 5.7kgs 5.7kgs 7.2kgs 7.2kgs
Gross Weight 4.0kgs 4.0kgs 6.0kgs 6.0kgs 7.5kgs 7.5kgs
Packing Size (mm) 680*270*160 680*270*160 820*320*160 820*320*160 920*370*180 920*370*180


The Die-casting Man brand, with its robust and innovative approach to outdoor lighting, introduces the YASL-25 model of LED Street Light Fixtures, originating from the industrious city of Ningbo, China. These fixtures are designed to cater to a variety of application occasions and scenarios, encapsulating the essence of versatility and reliability in urban and suburban lighting solutions. With a substantial warranty period of 3-5 years, the YASL-25 stands as a testament to durability and customer confidence.

Built to withstand the rigors of diverse climatic conditions, the YASL-25 operates effortlessly within a wide working temperature range of -40°C to 50°C. This resilience makes it an ideal choice for municipalities and organizations looking for dependable lighting solutions that can endure extreme weather without compromising on performance. Whether it's the chilling cold of winter nights or the searing heat of summer days, these LED street lights maintain their function and integrity.

Illumination is not just about brightness; it's also about creating the right ambiance. The YASL-25 offers a spectrum of color temperatures ranging from a warm 3000K to a crisp 6000K. This flexibility allows for tailored lighting experiences, whether it's a cozy, inviting glow for residential areas or a clear, alert brightness for main thoroughfares and intersections.

Power is another pivotal feature of the Die-casting Man's YASL-25 LED street light fixtures. With a range from 30W to 200W, these lights can cater to a variety of lighting needs, from subtle illumination of alleyways to the robust requirements of a 100 watt street light for major roads and highways. The high-power efficiency not only ensures adequate lighting but also contributes to energy savings and sustainability goals.

The YASL-25 is designed with an aluminum alloy material that ensures both durability and aesthetic appeal. The sleek design of the led street light empty housing not only houses the advanced lighting technology but also complements the urban architecture. The housing street light is engineered to facilitate easy installation and maintenance, making it a practical choice for urban planners and maintenance teams.

Die-casting Man's YASL-25 model finds its application in a multitude of scenarios such as city streets, public squares, pedestrian pathways, parks, residential districts, industrial areas, and parking lots. Its robust design and adaptable features make it a go-to choice for those who seek a fusion of performance, longevity, and visual harmony in their street lighting solutions.



Brand Name: Die-casting Man

Model Number: YASL-25

Place of Origin: Ningbo, China

Color: Customized Ral. No. such as Gray, Black, White

CRI: >70

Working Temperature: -40°C-50°C

IP Rating: IP65, also available in IP66 IK08 for enhanced protection

Luminous Flux: 3000lm-20000lm, suitable for a variety of applications including street lamp solar configurations and projector lamp module systems

Our LED Street Light Fixtures offer diverse customization services to meet the needs of urban and suburban lighting. The housing street light is designed for longevity and performance, providing a reliable and efficient lighting solution.



Q1: What is the brand name of the LED Street Light Fixtures?

A1: The brand name of the LED Street Light Fixtures is Die-casting Man.

Q2: Can you provide the model number for the LED Street Light Fixture?

A2: Yes, the model number for our LED Street Light Fixture is YASL-25.

Q3: Where are the Die-casting Man LED Street Light Fixtures manufactured?

A3: The Die-casting Man LED Street Light Fixtures are manufactured in Ningbo, China.

Q4: Are the YASL-25 LED Street Light Fixtures suitable for outdoor use?

A4: Yes, our YASL-25 LED Street Light Fixtures are designed for outdoor use, with robust construction and weather-resistant features.

Q5: What types of applications are suitable for the Die-casting Man YASL-25 LED Street Light Fixtures?

A5: The Die-casting Man YASL-25 LED Street Light Fixtures are ideal for various outdoor applications, including street lighting, parking lots, walkways, and other public areas requiring reliable illumination.
