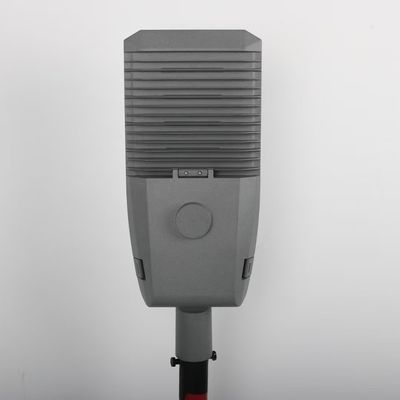

ADC12 Aluminum Outdoor street lamp fixtures complete Type II III

ADC12 Aluminum Outdoor street lamp fixtures complete Type II III
ADC12 Aluminum Outdoor street lamp fixtures complete Type II III
video play

Large Image :  ADC12 Aluminum Outdoor street lamp fixtures complete Type II III

Product Details:
Place of Origin: Ningbo, China
Brand Name: Die-casting Man
Certification: CE. EMC, LVD, ENEC, RoHs
Model Number: YASL-28-240M
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: US$21.6 - US$44.6
Packaging Details: 1PC/CTN
Delivery Time: 7-35DAYS
Payment Terms: TT
Supply Ability: 50000PCS/M
Detailed Product Description
Luminous Flux: 3000lm-20000lm Warranty: 3-5 Years
Working Temperature: -40°C-50°C Color: Customized Ral. No. Such As Gray, Black, White
Light Source: LED Input Voltage: AC90-305V
CRI: >70 Material: Aluminum Alloy
Highlight:

Outdoor street lamp fixtures

,

Aluminum street lamp fixtures

,

Aluminum street light fixtures manufacturers

Product Description:

Model NO. SL-28-40 SL-28-60 SL-28-90 SL-28-120 SL-28-160 SL-25-240
Input Wattage (W) 30/40/50 50/60/80 80/100/120 120/150 150/180/200 200/240/320
Installation Pipe Diameter φ48/60mm φ48/60mm φ60mm φ60mm φ60mm φ60mm
Installation Height (m) 3-8 4-8 6-10 8-12 8-12 8-14
Input Voltage 90~305Vac
Frequency Range 50/60Hz
Power Factor ≥0.9
Light source LED
Driver Inventronics
Meanwell
other brand of driver(upon request)
Luminaire efficacy (lm/w) 130-190
Color Temperature (CCT) 4000K (3000K/5000K/5700K upon request)
Color rendering index (Ra) ≥70
Diming Dali (optional)
1-10V (optional)
PWM (optional)
Smart control management system (upon request)

Features:

  • Product Name: LED Street Light Fixtures
  • Color: Customized Ral. No. Such As Gray, Black, White
  • Beam Angle: 120°
  • Dimension: Customized
  • Working Temperature: -40°C-50°C
  • CRI: >70
  • Projector Lamp Module: Yes
  • Aluminium LED Street Lamp: Yes


Technical Parameters:

Working Temperature -40°C-50°C
Color Temperature 3000K-6000K
Luminous Flux 3000lm-20000lm
Lifespan >50,000hrs
Light Source LED
Warranty 3-5 Years
Power Factor >0.95
CRI >70
Dimension Customized
IP Rating IP65


Applications:

These LED street lights are designed to be durable and long-lasting, with a lifespan of over 50,000 hours. They are also highly efficient, with a power factor of greater than 0.95, which means they consume less energy and are more cost-effective than traditional lighting systems.

The LED Street Light Fixtures are certified with CE, EMC, LVD, ENEC, and RoHs, ensuring the highest standards of safety, quality, and performance. They are also IP66 and IK08 rated, making them resistant to dust, water, and impact, and ideal for use in harsh outdoor environments.

In terms of customization, the LED Street Light Fixtures are available in a range of colors, including gray, black, and white, to match any aesthetic or design requirement. They come with a 3-5 year warranty, providing peace of mind and investment protection for customers.

The LED Street Light Fixtures are available for purchase in quantities as low as 1 piece, with prices ranging from US$21.6 to US$44.6. They are packaged in a single carton box for easy transportation, and delivery times range from 7 to 35 days, depending on the destination. Payment terms are TT, and the supply capacity is up to 50,000 pieces per month.

Overall, Die-casting Man's LED Street Light Fixtures are an excellent choice for anyone in need of outdoor high power LED street lighting. Their efficiency, durability, and safety certifications make them a top choice for public and private applications alike.
