IP66 Smart LED street lighting 80W 100W 120W 150W 180W 200W

Large Image : IP66 Smart LED street lighting 80W 100W 120W 150W 180W 200W

Product Details:

Place of Origin:	Ningbo China
Brand Name:	Die Casting Man
Certification:	CE, RoHs, ENEC, CB
Model Number:	SL-25-100M

Payment & Shipping Terms:

Minimum Order Quantity:	5PC
Price:	Negotiation
Packaging Details:	Carton box with styrofoam package
Delivery Time:	7-30 days base on order quantity
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Model:	SL-25-100M	Wattage:	100W
Light Source:	LED	IK Grade:	IK08
IP Grade:	IP66	Warranty:	5 Years
Highlight:	IP66 waterproof LED street light , smart LED street lighting 80W , 150W LED street light fixture

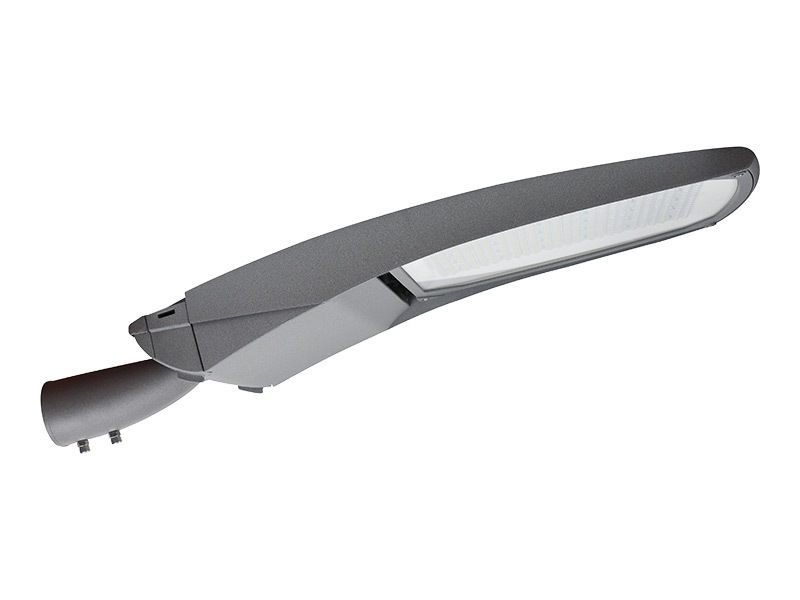

IP66 Smart LED Street Lighting 80W 100W 120W 150W 180W 200W

Die Casting Housing Introduction

This high-quality Die Casting Housing features TUV, CE, ENEC, CB, and IP66 certifications with a 5-year warranty. Constructed from durable die-cast aluminum and tempered glass, it represents our latest innovation in street lighting technology.

With many years of experience in the lighting industry, we serve markets across Europe, the Middle East, Asia, and Africa. We look forward to becoming your long-term partner in China.

LED Street Light YASL-25M Installation Options

Available in both horizontal and vertical mounting configurations with adjustable angles from -15° to +15°.

90 Degree Installation

Front View

Back View

Side View

Technical Specifications

Product Code	YASL-25-100M	YASL-25-100M	YASL-25-150M	YASL-25-150M	YASL-25-240M	YASL-25-240M
Input Wattage	50W 60W	100W	120W	150W	200W	240W
Installation Pipe Diameter	φ45/60mm		φ45/60/76mm		φ45/60/76mm
Luminous Flux	7800-9000lm	13000-15000lm	15600-18000lm	19500-22500lm	26000-30000lm	31200-36000lm
Color Temperature	2700K 3000K 4000K 5000K 5700K 6500K
Input Voltage	AC90～305V
Frequency Range	50/60Hz
Power Factor	PF≥0.95
Color Rendering Index	Ra≥70
Operating Temperature	-40～50℃
Operating Humidity	20%～90%RH
LED Lifetime	50000h
Protection Grade	IP66
Impact Protection	IK08 IK09 IK10
Installation Height	4-8m	6-10m	8-12m	8-12m	10-14m	10-14m
Net Weight	3.8kgs	3.8kgs	5.7kgs	5.7kgs	7.2kgs	7.2kgs
Gross Weight	4.0kgs	4.0kgs	6.0kgs	6.0kgs	7.5kgs	7.5kgs
Packing Size (mm)	680270160	680270160	820320160	820320160	920370180	920370180
