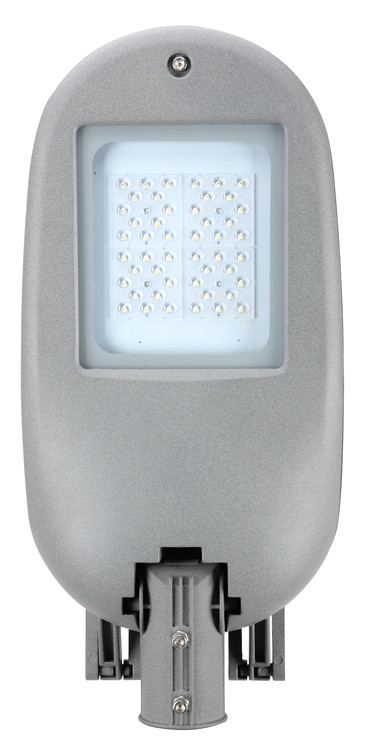

Energy Saving Road Lighting Fixtures 50w structure back radiating rib

Large Image : Energy Saving Road Lighting Fixtures 50w structure back radiating rib

Product Details:

Place of Origin:	China
Brand Name:	Die Casting Man
Certification:	CE
Model Number:	SL-09-50
Document:	YASL-09 datasheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiation

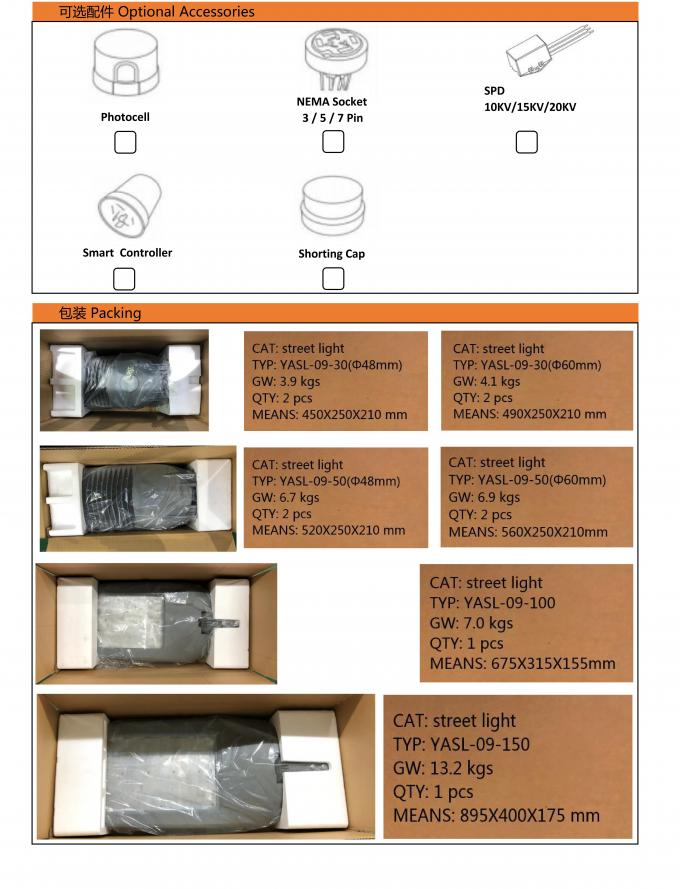

Packaging Details:	Carton box
Delivery Time:	7-30 days base on order quantity
Payment Terms:	By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO,Western Union,L/C
Supply Ability:	10000PCS/Month.

Contact Now

Detailed Product Description

Material:	Die-casting Aluminum	CRI:	>70
Fixture Color:	Gray	Input Voltage:	AC85 - 265V
Working Ambient Temperature:	-30℃ - 50℃	IP:	66
Wattage:	30W-50W	Warranty:	5 Years
Highlight:	exterior light fixtures , street lighting fixtures

Outdoor Street Lamps and Parking Lot Lighting | Die casting man

Type of Protection: IP 66

Protection Class: II

Impact Protection: IK08 /IK10

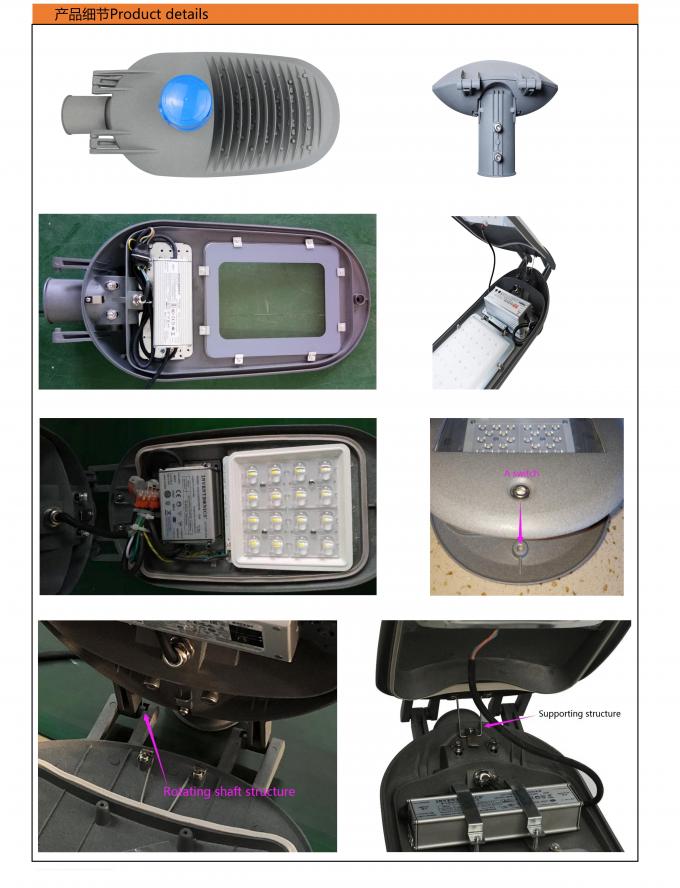

Features:

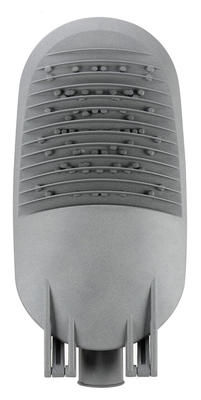

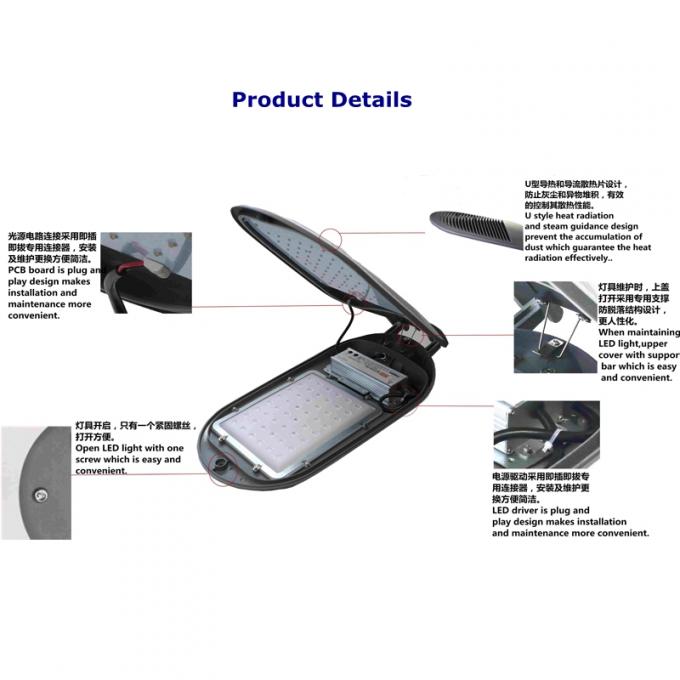

Self-cleaning structure design of back radiating rib；
Adjustable Mounting Direction and angle ± 10 °；
Dimming:Time control/0-10V/ Optical control // DALI dimming
Lightning protection:10KV/15KV/20KV;

Protection level:

Water resistance Rating: IP66；

Impact Protection Rating : IK08/09/10；

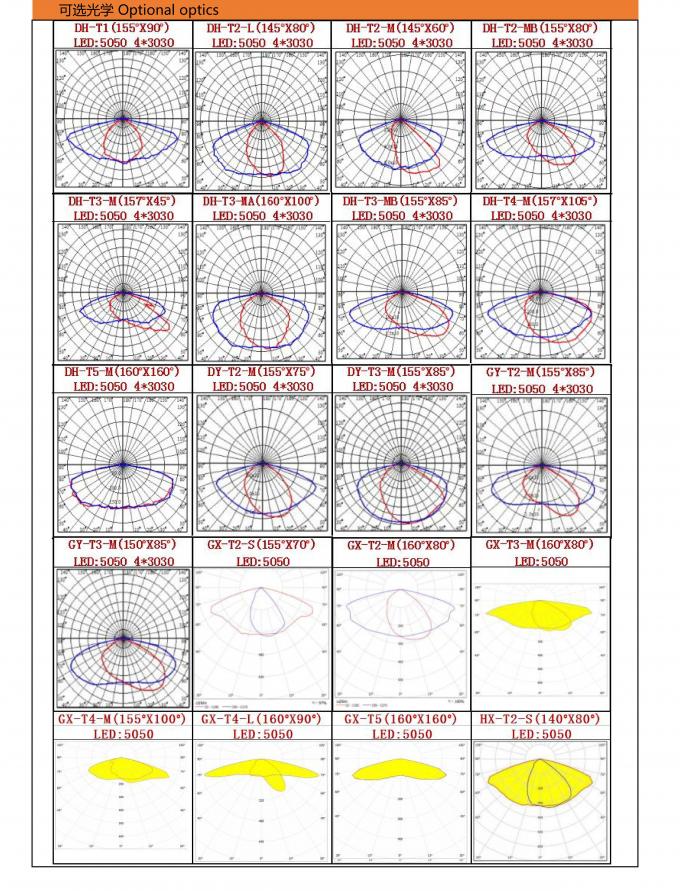

Optical effect:130～170 lm/W；
Warranty:5/8 year option.

IP66 CE RoHS

Product Specification

Product code	YASL-09-30	YASL-09-50	YASL-09-100	YASL-09-150
Input Wattage	40W	60W	120W	250W
Color Temperature	2700～6500K	2700～6500K	2700～6500K	2700～6500K
Luminous Flux	5200-6000lm	7800-9000lm	15600-18000lm	32500-37500lm
Input Voltage	AC90～305V	AC90～305V	AC90～305V	AC90～305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95	PF≥0.95
Color rendering index	Ra≥70	Ra≥70	Ra≥70	Ra≥70
Temperature of Working Condition	-40～50℃	-40～50℃	-40～50℃	-40～50℃
Humidity of Working Condition	20%～90%RH	20%～90%RH	20%～90%RH	20%～90%RH
LED Lifetime	50000h	50000h	50000h	50000h
Protectin Grade	IP66	IP66	IP66	IP66
Protection level	IK08/09/10	IK08/09/10	IK08/09/10	IK08/09/10
Installation Pipe Diameter	φ45/60mm	φ45/60mm	φ45/60mm	φ60/76mm
Installation Height	3-6m	4-8m	8-12m	10-14m
Net Weight	2.7kgs	4.0kgs	6.5kgs	12.8kgs
Gross Weight	3.0kgs	4.5kgs	7.0kgs	13.2kgs
Packing Size(m m)	560265145	700350160	700350160	910415195

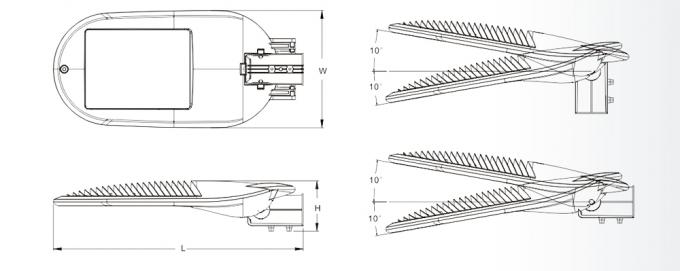

Product Size
Model	YASL-09-30	YASL-09-50	YASL-09-100	YASL-09-150
L(mm)	455	530	736	846
W(mm)	180	230	292	367
H(mm)	95	105	112	134

INSTALL.

This fixture is mounted on a 3-14m in pole. lnstalling Ways Both Horizontal and Vertical available and adjustable angle-15°to+15°

ENERGY SAVINGS.

High efficiency By illuminating your area with modern LED technology, you get a significant reduction in energy costs as well as superior light quality.

Compared to metal halide lamps ,the average savings obtanined using LED Lighting is approx 70% ,90% to halogen lamps .

This fixture provides a lumen output equal to 400 Watt Metal Halide and can reduce your lighting bill when

compared to metal halide and hps lighting.

WARRANTY / CERTIFICATIONS.

LED Lighting Supply provides a 5 year warranty along with CE and Rebate Eligible certifications.
