Customizable Outdoor LED Street Lights for Effective and Energy-Saving Street Lighting

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

Customizable Outdoor LED Street Lights for Effective and Energy-Saving Street Lighting

Customizable Outdoor LED Street Lights for Effective and Energy-Saving Street Lighting
Customizable Outdoor LED Street Lights for Effective and Energy-Saving Street Lighting

Large Image :  Customizable Outdoor LED Street Lights for Effective and Energy-Saving Street Lighting

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: SL-26-250
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: styrofoam package and carton box
Delivery Time: 7-30days
Payment Terms: L/C, T/T
Supply Ability: 10000PCS/Month
Detailed Product Description
Power: 200w-300w Installation Pipe Diameter: φ60mm
Product Size: 769*360*152mm LED: Lumileds 3030 Or 5050
Driver: Philips Sosen Color Temperature: 2700K 3000k 400k 5700k
Highlight:

customizable outdoor LED street lights

,

energy-saving LED street lighting

,

effective outdoor LED street lamps

Customizable Outdoor LED Street Lights for Effective and Energy-Saving Street Lighting
Product Specifications
Attribute Value
Power 200w-300w
Installation Pipe Diameter φ60mm
Product Size 769*360*152mm
LED Lumileds 3030 or 5050
Driver Philips Sosen
Color Temperature 2700K 3000k 400k 5700k
Product Description

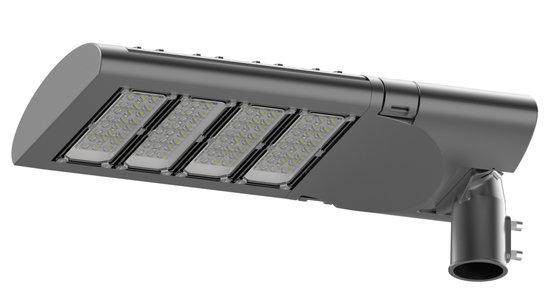

Module Street Light SL-26

Model Installation Pipe Diameter Product Size (mm)
YASL-26-50 Φ60 449 360 152
YASL-26-100 Φ60 529 360 152
YASL-26-150 Φ60 609 360 152
YASL-26-200 Φ60 689 360 152
YA SL-26-250 Φ60 769 360 152
YASL-26-300 Φ60 849 360 152
Materials Housing: ADC12; Cover: Toughened Glass; Screws: 304 stainless screws
Color Other colors can be customized according to the international color card
LED Brand LUMILEDS, OSRAM, CREE option
LED Specifications 3030, 5050 option
Optical Effect 130~140 lm/w, 140~150 lm/w, 150~160 lm/w, 160~170 lm/w, 170~180 lm/w option
Color Temperature 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K option (Reference: Energy Star)
Color Rendering Index Ra≥70; Ra≥80; Ra≥90 option
Optics TYPE I, TYPE II, TYPE III, TYPE V, TYPE IV option
Driver Brand OSRAM/TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS
Input Voltage AC90~305V
Security Level Class I/Class II/Class 1/Class 2 option
Frequency Range 43~63Hz
Power Factor PF≥0.95
Working Conditions Range -30 to 45℃, 20% to 90% RH
Dimming Mode Time control/0-10V/Optical control/DALI option
Lightning Protection 10KV/15KV/20KV option
Warranty 5/8 year option
Protection Overcurrent/Short circuit/Over temperature
Protection Level IP66; IK08/09/10
Certifications ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66

This IP66 outdoor LED street light can withstand a range of outdoor environments. Its high-quality aluminum housing and tempered glass lens offer excellent protection. The LED chips can reach up to 130 lm/W, and the street light is equipped with light-control, which helps regulate light automatically at dusk and dawn.

This aluminum LED street light is made of die-cast aluminum and is designed for alleys, overpasses, and residential areas. Its high luminous efficacy and low failure rate make it ideal for these locations. Moreover, it is energy-efficient and can cut power consumption by 60%. It is equipped with optional sensor control, making it an ideal option for lighting security in public places.

The 100W aluminum LED street light also includes a built-in photocell, which automatically switches the light off at dusk and turns on at dawn. Its low-energy consumption is also great for parking lots. This LED street light can save up to 80% of electricity bills, making it an ideal solution for parking lot lighting needs.

Key Features
  • High cost performance; exclusive patented products, all lamps and lenses have patents
  • Reliable performance; high specification aluminum, high pressure cast aluminum one-piece housing; whole lamp IP65
  • Housing material: die-cast aluminum + PC lens 70°*140°; lamp bead arranged in string mode
  • Long life; 50,000 hours life design; high with drive and over 6000V surge protection
  • Product application: expressway; urban elevated road; urban trunk road; industrial plant; commercial district road; residential road
